MX T406 - Control with MX FLEXPILOT Control Valve

17
Subject to modication
5.4 Control with MX FLEXPILOT control valve
■
5.4.1 Safety

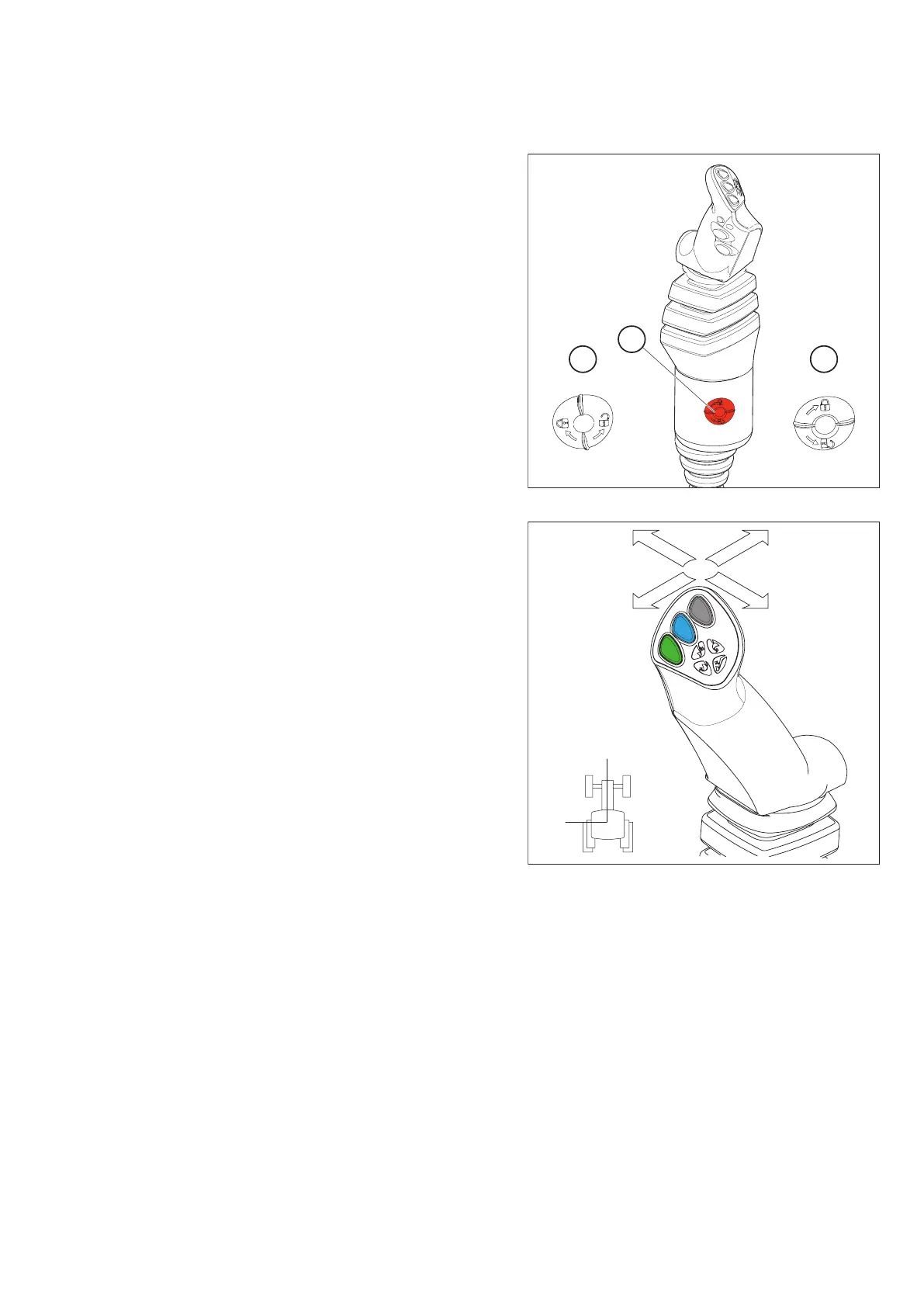

To prevent any accidental movement of the loader, the FLEXPILOT
monolever can be locked.
Turn the isolating thumbwheel (1):
— (A): unlocked position.
— (B): locked position.
■
1
A
B
5.4.2 Movements
1st function: along the “Y” axis
— Forward = loader lowering
(Double-action hydraulic ram operation).
— Forwards after notching = oating position
(Single-action hydraulic ram operation).
— Backwards = loader raised.
2nd function: along the “X” axis
— To the left = implement crowding.
— To the right = implement dumping.
■
Y
X
Y
X
