30
Subject to modication

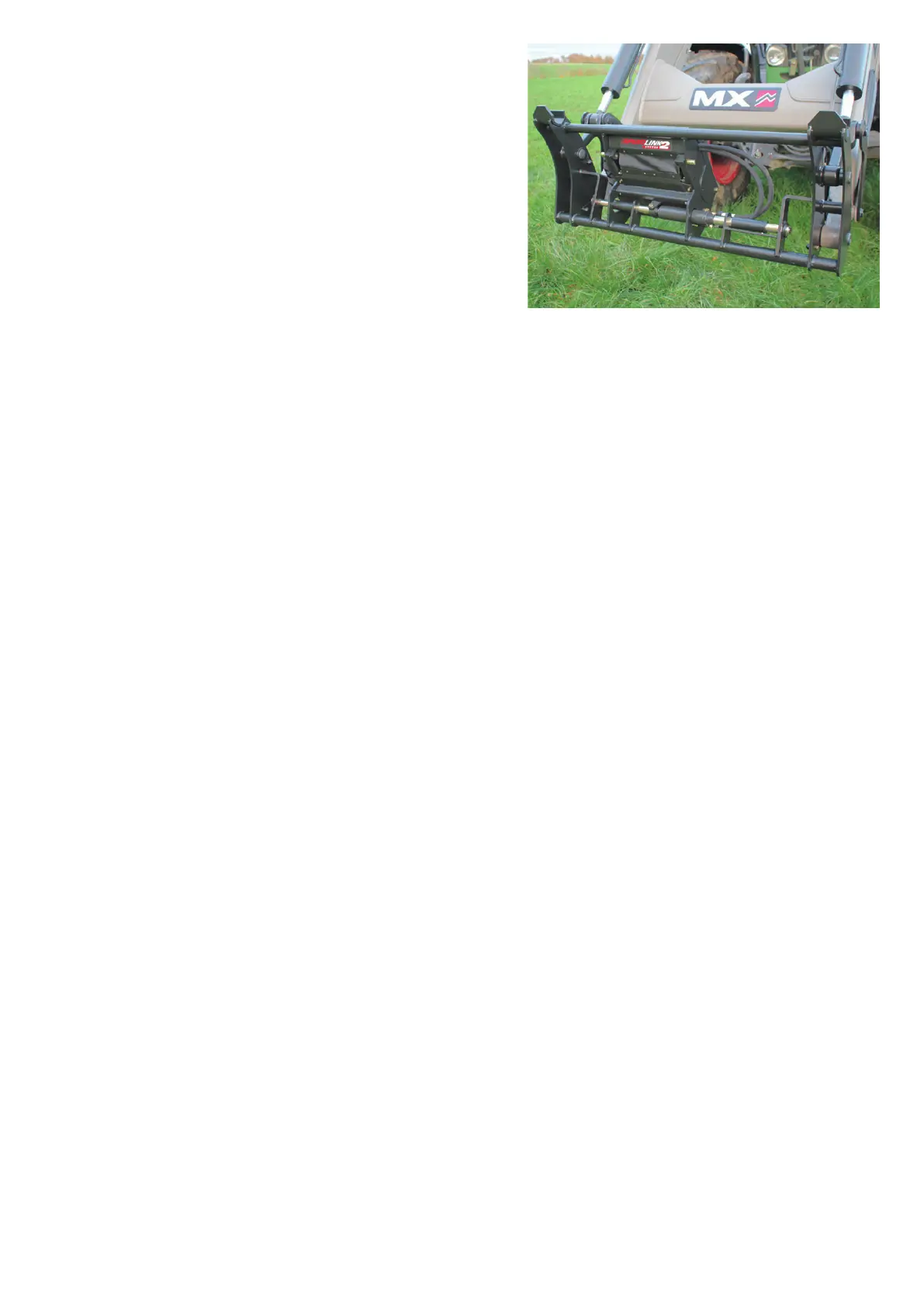

8.3 SPEED-LINK 2 implement carrier
— Lift the loader to clear the implement from the ground.
— Increase the operating life of the couplings by ensuring that the
implement's hydraulic functions are not pressurized: for
example, by slightly opening the grab.
— Press the green and padlock buttons while moving the
monolever to the right (dumping).
— The implement is now unlocked.
— The locking indicator located at the back of the SPEED-LINK 2
frame is red.
— Set the implement onto the ground, lightly dumping to release
the implement carrier frame from the implement.
NOTE: It is possible to use an implement with a maximum of one
DA function but not tted with the SPEED-LINK 2 connection. If
necessary, disconnect the two couplings on the rear SPEED-LINK
2 frame housing, after depressurizing the 3rd function hydraulic
circuit.
■
