MX T406 - Use of the Lifting and Dumping Safety Device

43
Subject to modication
weight (50 ± 10)% of nominal lifting capacity specied by the manufacturer of the loader.
E.2 Test procedure
The test specied from E.2.1 to E.2.2 must be carried out according to each of the following conditions:
— position held after lowering the test load to a height of (1 ± 0.1) m (static test);
— position held after lifting the test load to a height of (1 ± 0.1) m (static test);
and at hydraulic system oil temperatures of between 40°C and 50°C.
E.2.1 The discharge device between the lifting rams and the control valve must be open
E.2.2 The total downward movement of the load must be measured at the implement's pivot point
E.3 Acceptance criterion
The total downward movement measured in E.2.2, during the rst 10 seconds, must not exceed:
— 100 mm, if the safety device is switched o󰀨 or manually deactivated;
— 300 mm, if the safety device is permanently activated.
After 5 min, additional downward movement must not exceed 100 mm. "
■

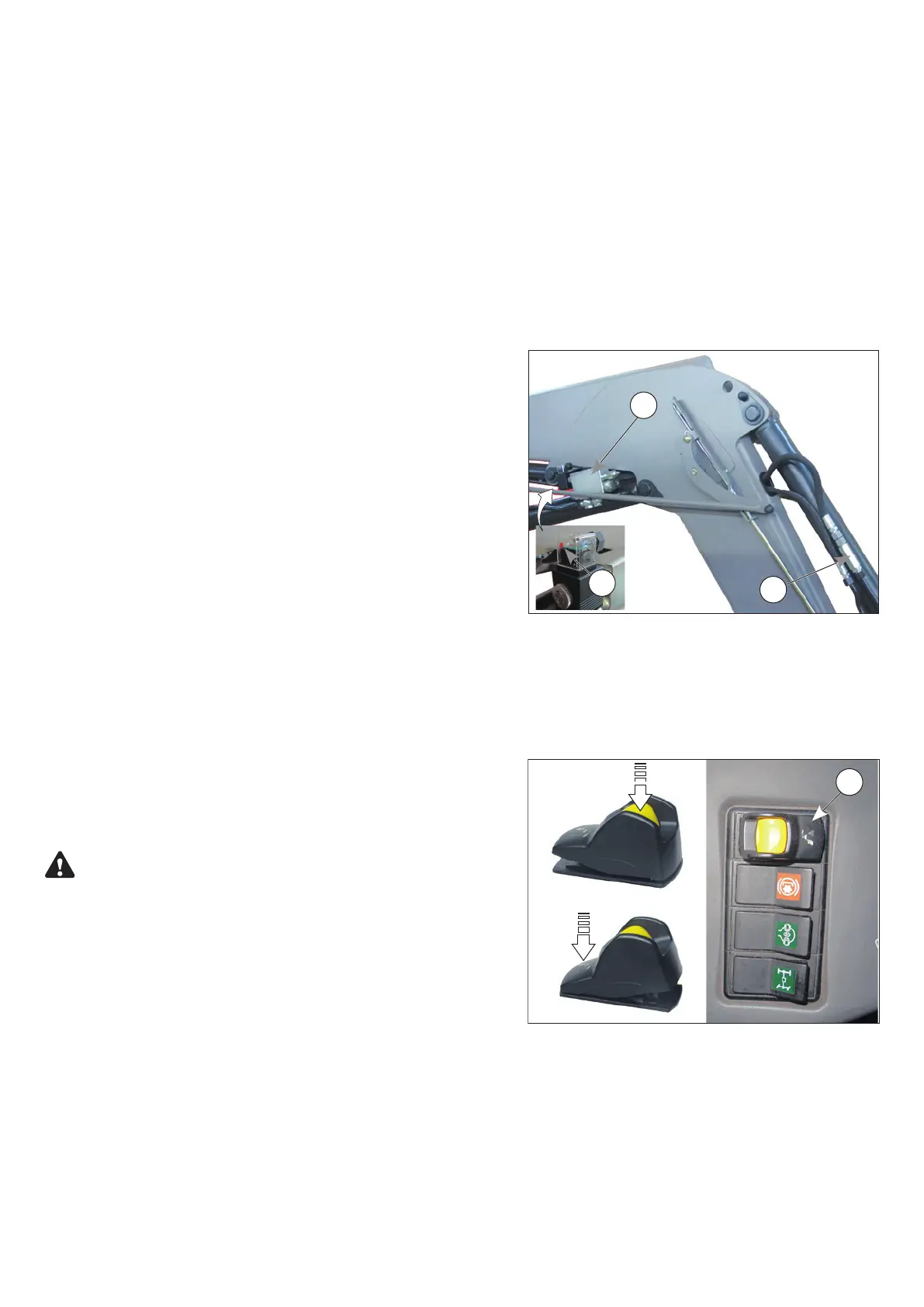

19.2 Use of the lifting and dumping safety device
The hydraulic circuit of the lifting and dumping rams is tted with a
safety device (1) and (2).
By default, the safety device is activated.
When the user presses the button in the cab (3) (secure button),
the safety device is deactivated and the red indicator lights are
illuminated on:
— the in-cab button (3),
— the external button (4) ,
— the two lifting-ram solenoid valve connectors (5) .
Button function (3):
— Press (A): deactivates the safety device.
— Press (B): activates the safety device.
■
1
2
5
MX T400
NOTE: As soon as the tractor is switched o󰀨, the safety device is
automatically actuated.
CAUTION: Deactivation of the safety device is only
permitted when there is no-one in the vicinity of the load. In this
case, the maintained oating position and the Shock Eliminator
are compatible.
By pressing buttons (3) or (4), the safety device is reactivated
(red indicator lights o󰀨).
■
A
B
3
