17. AUTO-LEVEL System
Automatic implement level reset, using the AUTO-LEVEL System (optional), is available for loaders controlled using the
tractor's original control valve or by MX "Flexpilot" or "e-PILOT S" control valves.
■
17.1 Implement position adjustment

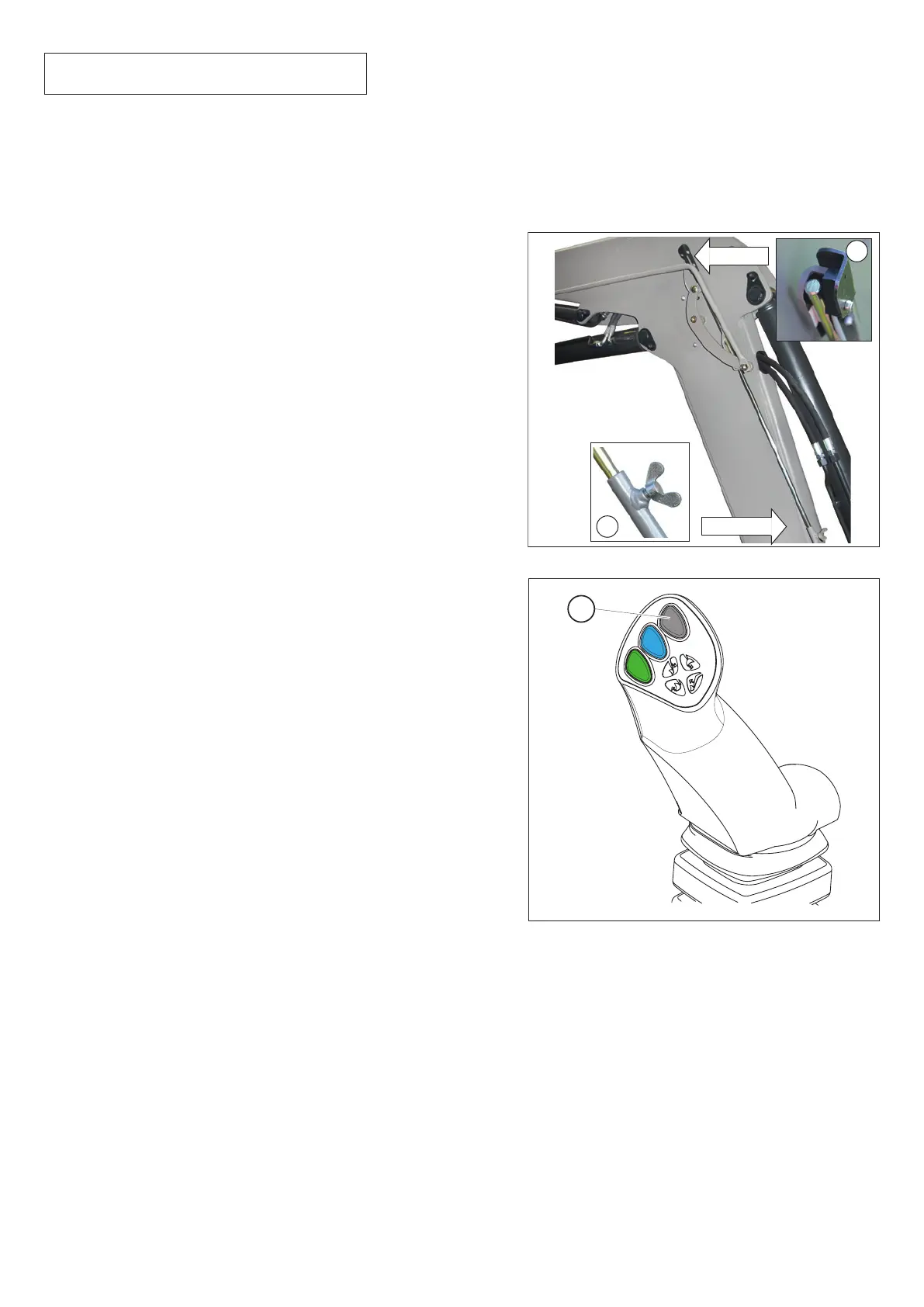

The implement position is adjusted at the indicator rod. See
pictures opposite.
— Put the implement into the desired position.
— Lower the implement to the ground.
— Loosen the wingnut (1).
— Position the end of the rod in front of the sensor (2).
— Tighten the wingnut (1).
■
2
1
17.2 Automatic implement position reset
Flexpilot control:
The AUTO-LEVEL System operates in the crowding direction.
— If the implement is dumped, press and hold the black button (1)
on the loader monolever: the implement automatically stops at the
pre-set position.
— Release the black button (1).
e-PILOT S control:
The AUTO-LEVEL System operates both ways.
— crowding and dumping. If the implement is dumped when the
AUTO-LEVEL System is activated, the loader crowds. If the
implement is crowded, the loader dumps.
See manuals specic to e-PILOT S.
■
