MX T406 - Bucket Operation Restrictor; On;Off; Adjustment

40
Subject to modication
16. Bucket operation restrictor
The dumping restrictor (optional) is located at the end of the 3rd
function solenoid valve, inside the right arm of the loader.
■
16.1 On/O󰀨
— ON: The restrictor is in operation and the bucket operates slowly.
— OFF: The restrictor is not in operation and the bucket operates
normally.
■

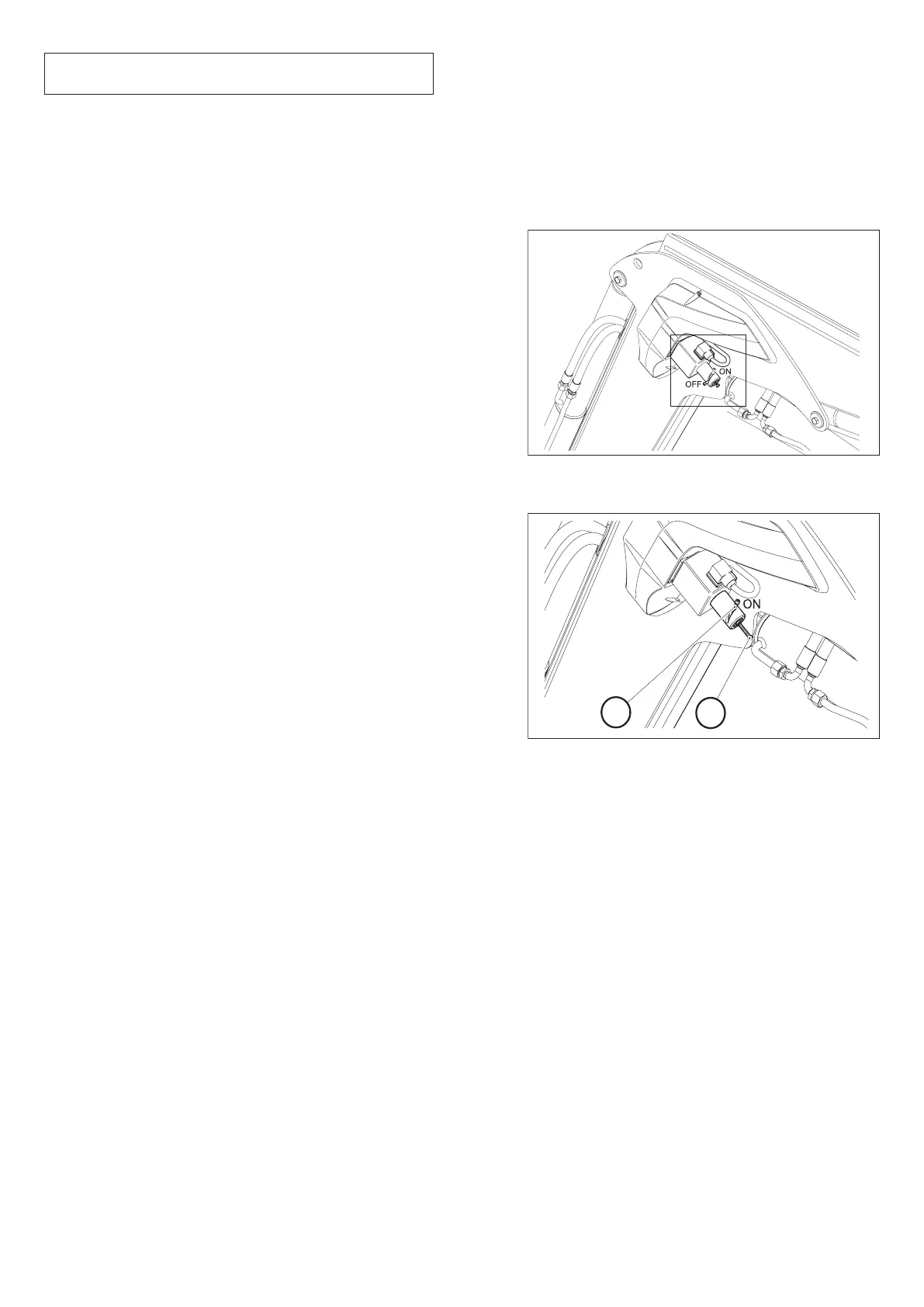

16.2 Adjustment
— Switch the restrictor to the "ON" position.
— Loosen screw (1).
— Adjust the dumping speed using screw (2).
— Retighten screw (1).
— Check the speed after adjustment.
■
1 2
