MX T406 - MX;Euro;Tenias Implement Carrier Frame; Level Indicator

35
Subject to modication

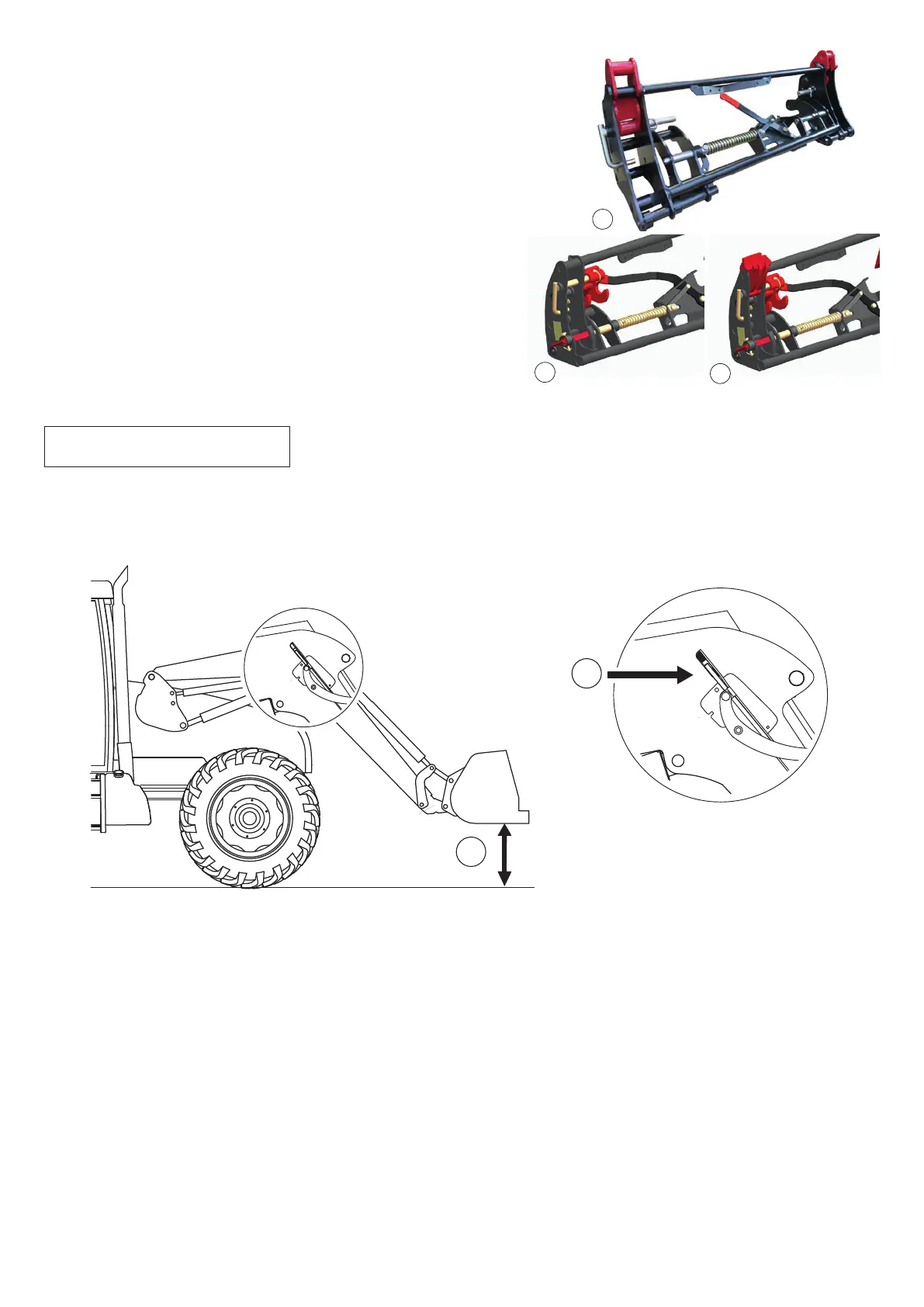

10.7 MX/Euro/TENIAS implement carrier frame
To switch from the TENIAS (1) position to the Euro (2) or MX (3)
position,
— Remove the pins,
— Fit the shoes in the required position,
— Ret the pins in their initial location.
■
1
3
2
3
1
11. Level indicator
The level indicator enables implement positioning as the loader
is descending. It is located on the left side of the loader. It can be
adjusted to suit the implement being used.
2
1
2
(1) indicator (2) Bucket parallel to the ground
■
