33
Subject to modication
CAUTION: Checks to be carried out before moving:
Press the implement down on the ground (the tractor's front
wheels lift) to check correct locking.
Operate each moving part fully, in each direction, to check the
tightness of the hydraulic circuit and the correct routing of the
hoses.
■

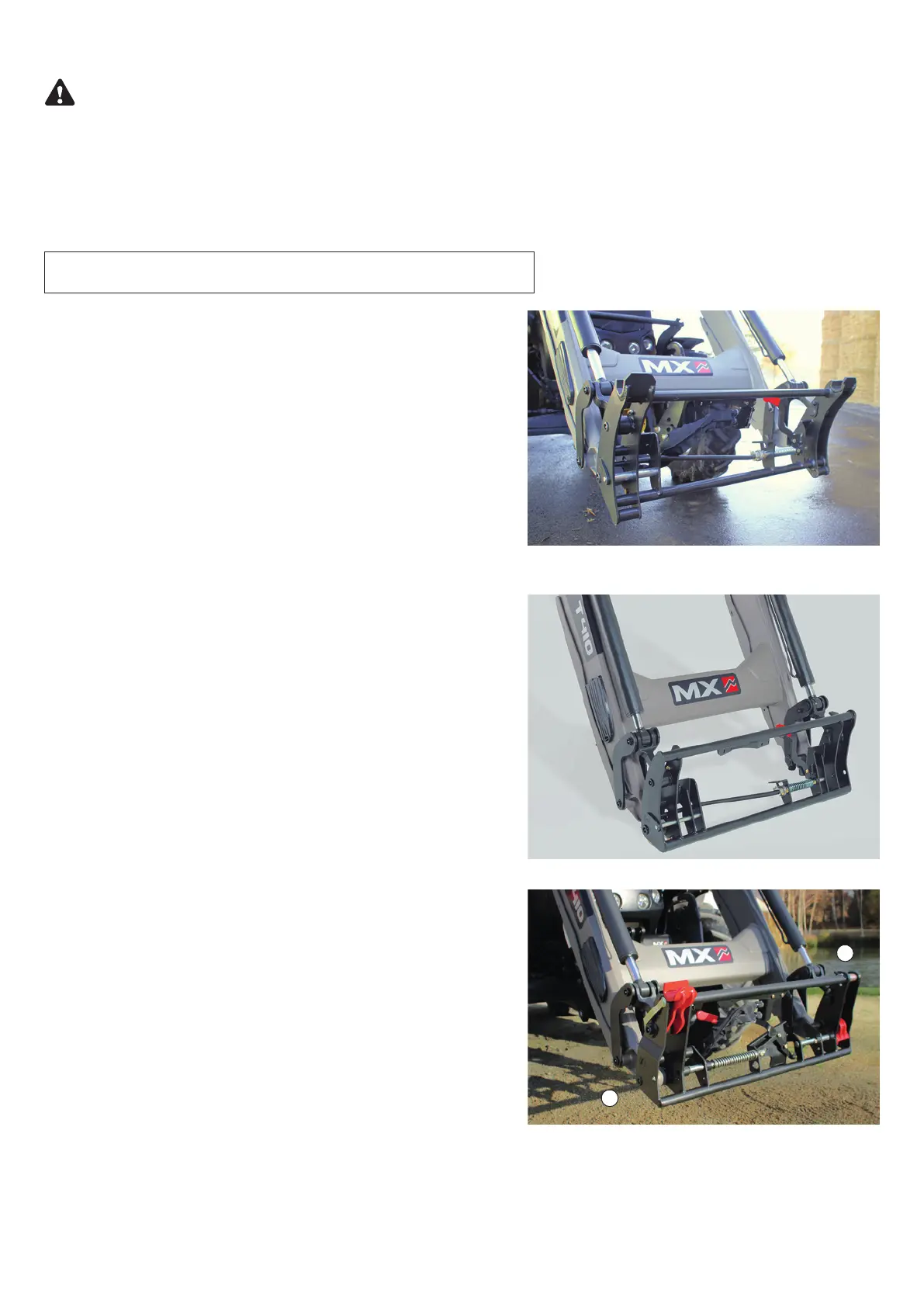

10. Models of implement carrier frames
10.1 MX implement carrier frame
■
10.2 EURO implement carrier frame
■
10.3 MX/EURO implement carrier frame
To switch from the MX position (1) to the Euro position (2),
— Remove the pins,
— Tilt the hitching shoes downwards,
— Check that the hitching shoes are held in position by the spring
rods,
— Ret the pins in their initial location.
■
1
2
