MX T406 - Control with MX E-PILOT S Control Valves

18
Subject to modication
3rd function: along the "X" axis
— Button (1) + crowding or dumping movement.
4th function: along the "X" axis
— Button (2) + crowding or dumping movement.
FAST-LOCK
Automatic hitching/unhitching of the implement.
— Button (1) + (4) + crowding or dumping movement.
SPEED-LINK 2
Automatic hitching/unhitching of the implement with hydraulic and
electric functions.
— Button (1) + (4) + crowding or dumping movement.
AUTO-LEVEL System
Implement position reset.
— Button (3).
NOTE: Button (4) operational only with FAST-LOCK or SPEED-
LINK 2.
■

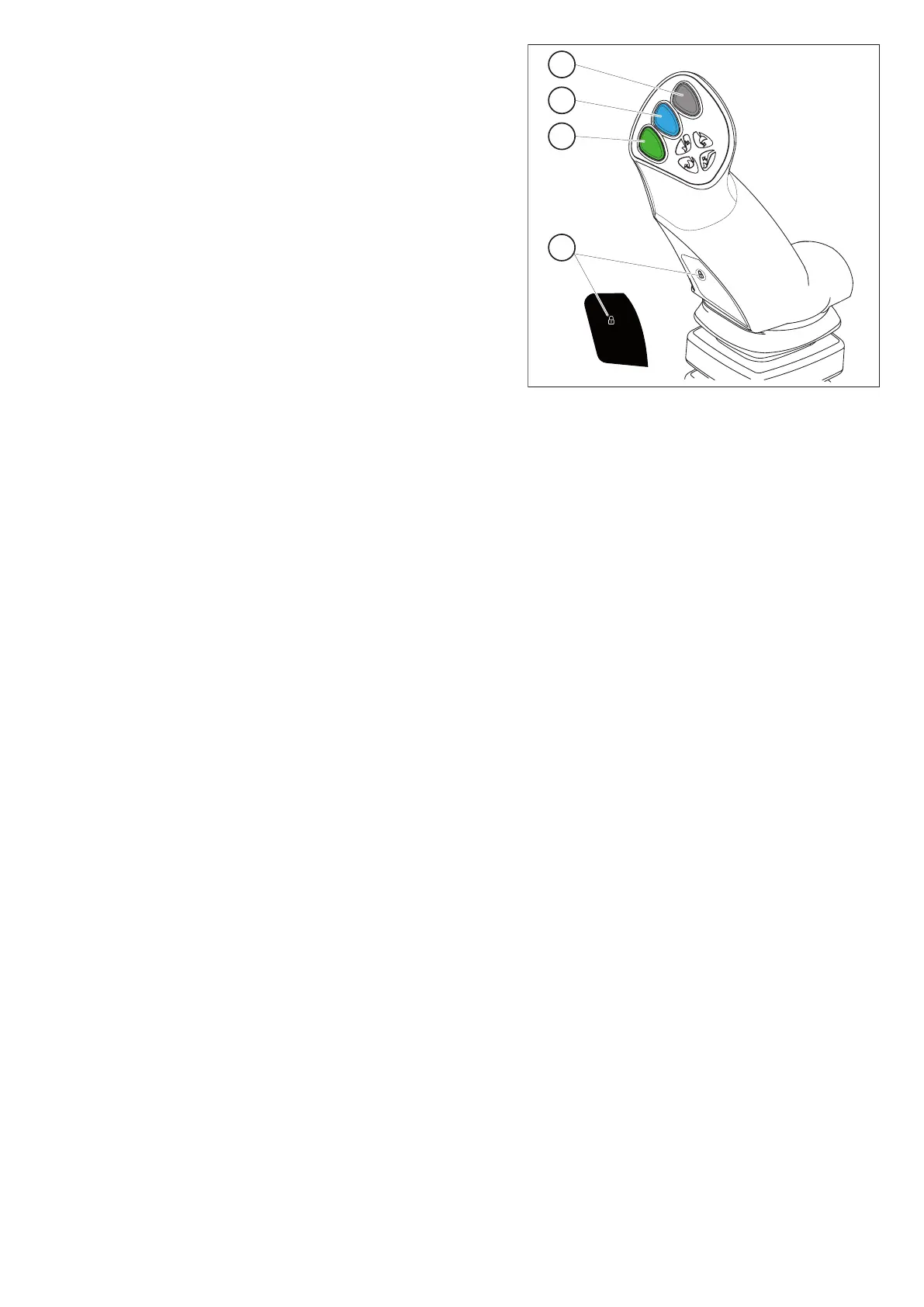

1
2
3
4
5.5 Control with MX e-PILOT S control valves
See separate instructions for e-PILOT S.
■
