A. Remove the 4 securing screws from the electrical cover plate, located on the bottom left hand side of
the appliance (when viewed from the rear).
B. Install the strain relief to the electrical cover plate (located in hardwire bag).
C. Separate the black, white and green wires that have the wire nuts on them.
D. Remove the wire nuts and secure the black wire (power L1) to the black (power L1) lead of the power
supply. Connect the white wire from the appliance to the white (neutral) wire from the power supply.
Connect the green wire to the ground wire.
E. Resecure the electrical cover plate.
BLACK
WHITE
BLACK
WHITE
SUPPLY
POWER
JUNCTION
FIREPLACE
GREEN
GREEN
JUNCTION
FIREPLACE
GROUND
BLACK
BLACK
BLACK
WHITE
WHITE
WIRE NUT
WALL
SWITCH
POWER
SUPPLY
JUNCTION
FIREPLACE
MARRET
RED
RED
RED
RED
GREEN
GREEN
THERMOSTAT
(L1)
(N)
(G)
WIRE NUT
(L1)
(N)
(L1)
(N)
NEGRO
BLANCO
NEGRO
BLANCO
SUMINISTRO
DE
POTENCIA
CHIMENEA
EMPALME
VERDE
VERDE
(L1)
(N)
(G)
TUERCA DEL
CABLE
W415-3031 / 04.30.21
EN
18
electrical information
Junction Box
HARD WIRING CONNECTION
If it is necessary to hard wire this appliance, a qualified electrician must remove the cord connection, and wire
the appliance directly to the household wiring. The wire and power supply breaker must rated for 220V-240V
minimum 15 Amps.
This appliance must be electrically connected and grounded in accordance with local codes, if hard wired.
White, Green and
Black wires:
Connect to 220V-
240V power supply.
Rear View
of Appliance

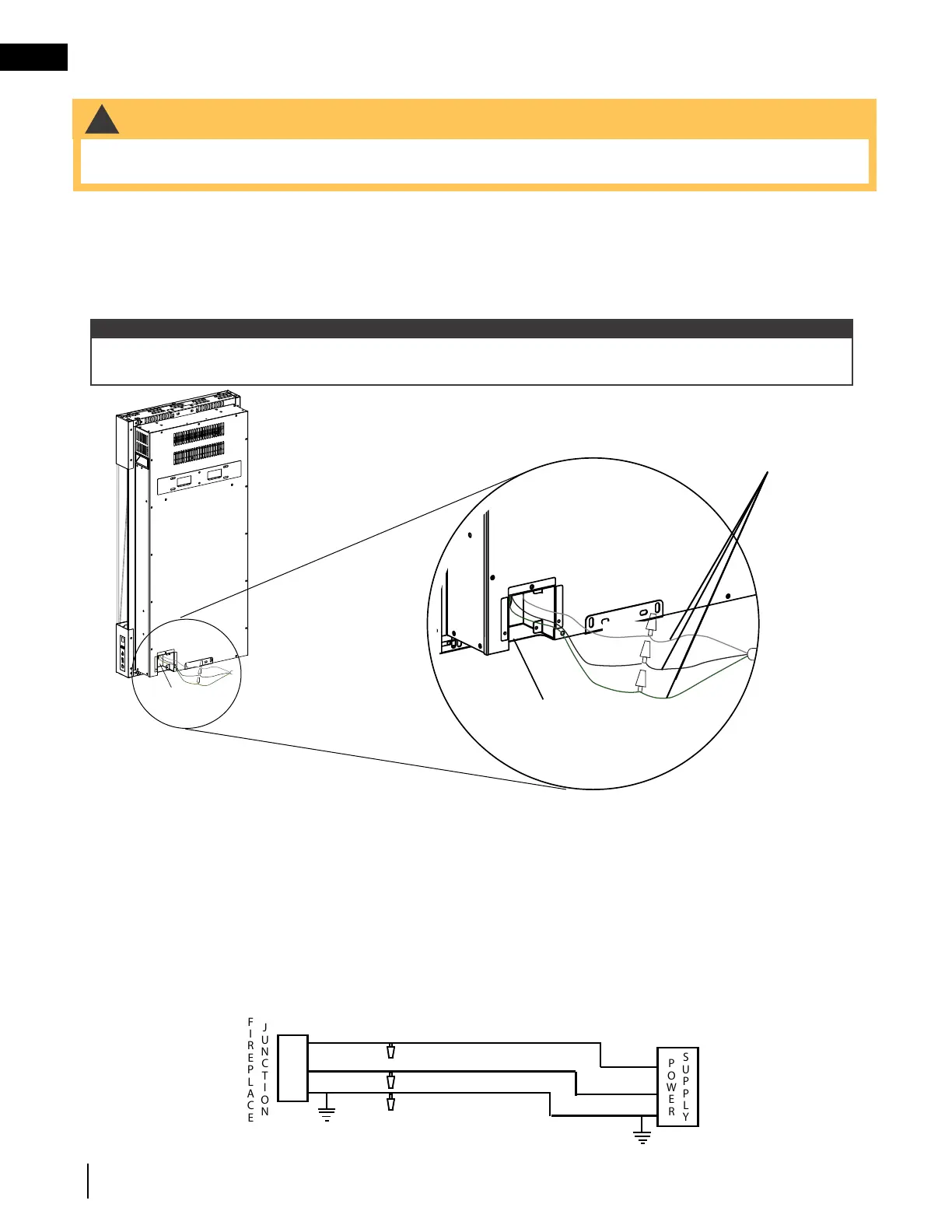

4.2 hard-wiring installation
• Turn off the appliance completely and let cool before servicing. Only a qualified service person should service
and repair this electric appliance.
!
WARNING
There are 3 wires from the appliance junction: white (neutral), black (power L1), and green (ground) that
connect to 220V-240V power supply (breaker panel). See below.
note:
GREEN
BLACK
WHITE
Junction Box
To Next Page
