Napoleon Allure Vertical Series User Manual

EN
W415-3031 / 04.30.21
5
1.0 general information

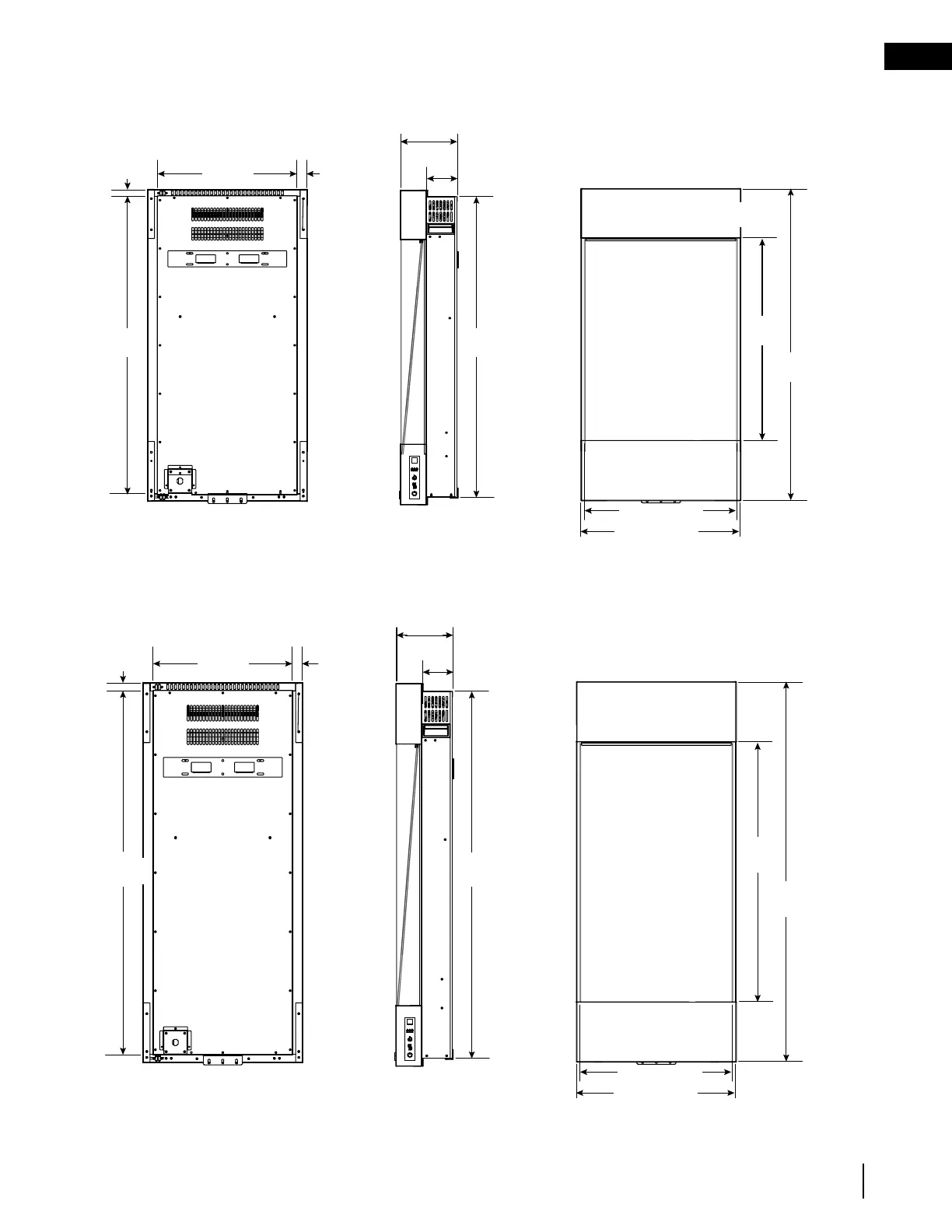

1.1 dimensions
36 1/2”
(927mm)
13/16”
(20mm)
14”
(366mm)
1”
(25mm)
BACK VIEW
36 1/2”
(927mm)
26”
(660mm)
38”
(965mm)
151/4” (385mm)
16” (406mm)
RIGHT SIDE
VIEW
FRONT VIEW
NEFVC38H Illustrated
30 1/2”
(927mm)
13/16”
(20mm)
14”
(366mm)
1”
(25mm)
BACK VIEW
5 5/8”
(144mm)
30 1/2”
(927mm)
20”
(508mm)
32”
(813mm)
15 1/4” (385mm)
16” (406mm)
RIGHT SIDE
VIEW
FRONT VIEW
NEFVC32H Illustrated
5 5/8”
(144mm)
3”
(76mm)
36 1/2”
(927mm)
13/16”
(20mm)
14”
(366mm)
1”
(25mm)
BACK VIEW
36 1/2”
(927mm)
26”
(660mm)
38”
(965mm)
151/4” (385mm)
16” (406mm)
RIGHT SIDE
VIEW
FRONT VIEW
NEFVC38H Illustrated
30 1/2”
(927mm)
13/16”
(20mm)
14”
(366mm)
1”
(25mm)
BACK VIEW
5 5/8”
(144mm)
30 1/2”
(927mm)
20”
(508mm)
32”
(813mm)
15 1/4” (385mm)
16” (406mm)
RIGHT SIDE
VIEW
FRONT VIEW
NEFVC32H Illustrated
5 5/8”
(144mm)
3”
(76mm)
NEFVC32H-EU Illustrated
NEFVC38H-EU Illustrated
30 1/2
(775mm)
13/16"
(20mm)
14"
(355mm)
1"
(25mm)
5 5/8"
(142mm)
30 1/2"
(775mm)
3"
(76mm)
6"
(152mm)
5/16"
(8mm)
20"
(508mm)
32"
(813mm)
15 1/4" (387mm)
16" (406mm)
36 1/2
(927mm)
13/16"
(20mm)
14"
(355mm)
1"
(25mm)
5 5/8"
(142mm)
3"
(76mm)
36 1/2"
(927mm)
6"
(152mm)
26"
(660mm)
38"
(965mm)
15 1/4" (387mm)
16" (406mm)
