Napoleon ASCENT SERIES User Manual

Fig. 1
Fig. 2
W415-2165 / G / 08.15.18
EN
12
installation

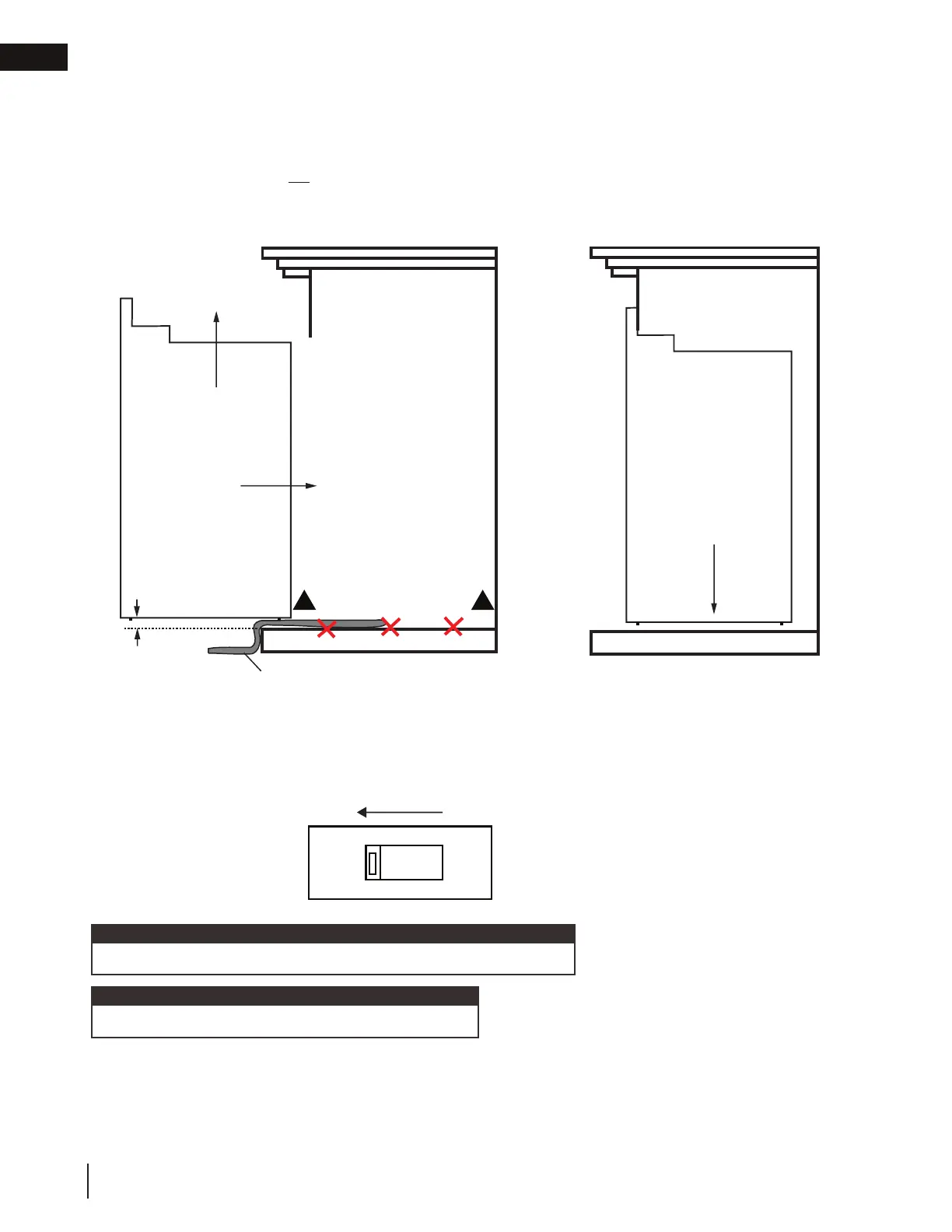

3.3.1 appliance installation
A. Place a cloth (not supplied) onto the mantel (Fig. 1) to prevent the appliance from scratching the mantel
surface.
B. With 2 people, lift the appliance up and insert into the opening, leave space between the appliance and
floor base in order to not scratch the floor surface. Do not push or slide the bottom of the appliance on
the floor base (Fig. 1).
C. Set the appliance down and into place and remove the cloth (Fig. 2).
APPLIANCE
1/4"
APPLIANCE
STEP 1: LIFT
STEP 2: INSERT
STEP 3: SET APPLIANCE
DO NOT SLIDE APPLIANCE
!
!
LEAVE ABOUT
A 1/4" GAP
CLOTH
APPLIANCE
1/4"
APPLIANCE
STEP 1: LIFT
STEP 2: INSERT
STEP 3: SET APPLIANCE
DO NOT SLIDE APPLIANCE
!
!
LEAVE ABOUT
A 1/4" GAP
CLOTH
3.3.2 voltage selection
This appliance is able to use 120 volt or 240 volt power supply by setting the voltage selector switch (Fig. 1) and
hard wiring configurations.
Fig.1
GREEN
BLACK
WHITE
FIREPLACE
JUNCTION
WIRE NUT
NEUTRAL
L1
GROUND
CONNECT TO
120V POWER
SUPPLY.
GREEN /
VERT
BLACK /
NOIR
WHITE /
BLANC
FIREPLACE
JUNCTION /
BOÎTE DE
JONCTION
WIRE NUT /
CAPUCHON DE CONNEXION
NEUTRAL /
NEUTRE
L1
GROUND /
TERRE
CONNECT TO
120V POWER
SUPPLY MIN.
15AMPS /
RACCORDER À
LA SOURCE
D’ALIMENTATION
ÉLECTRIQUE DE
120 V, MIN.
15AMPS.
230
GREEN
BLACK
WHITE
FIREPLACE
JUNCTION
NEUTRAL
L1
GROUND
CONNECT TO
240V POWER
SUPPLY.
230
RED
WIRE NUT
L2
The factory set up configuration is 120 volt operation with cord plug.
note:
Only a qualified person can change the voltage setting.
important:

Napoleon ASCENT SERIES Specifications

General

Model	Ascent Series
Category	Indoor Fireplace
Fuel Type	Natural Gas or Propane
Ignition System	Electronic Ignition
Vent Type	Direct Vent
Fireplace Type	Direct Vent Gas Fireplace
Dimensions	Varies by model
Weight	Varies by model
Warranty	Limited Lifetime Warranty
Control Options	Remote Control
Viewing Area	Varies by model
