W415-2165 / G / 08.15.18
EN
24
maintenance

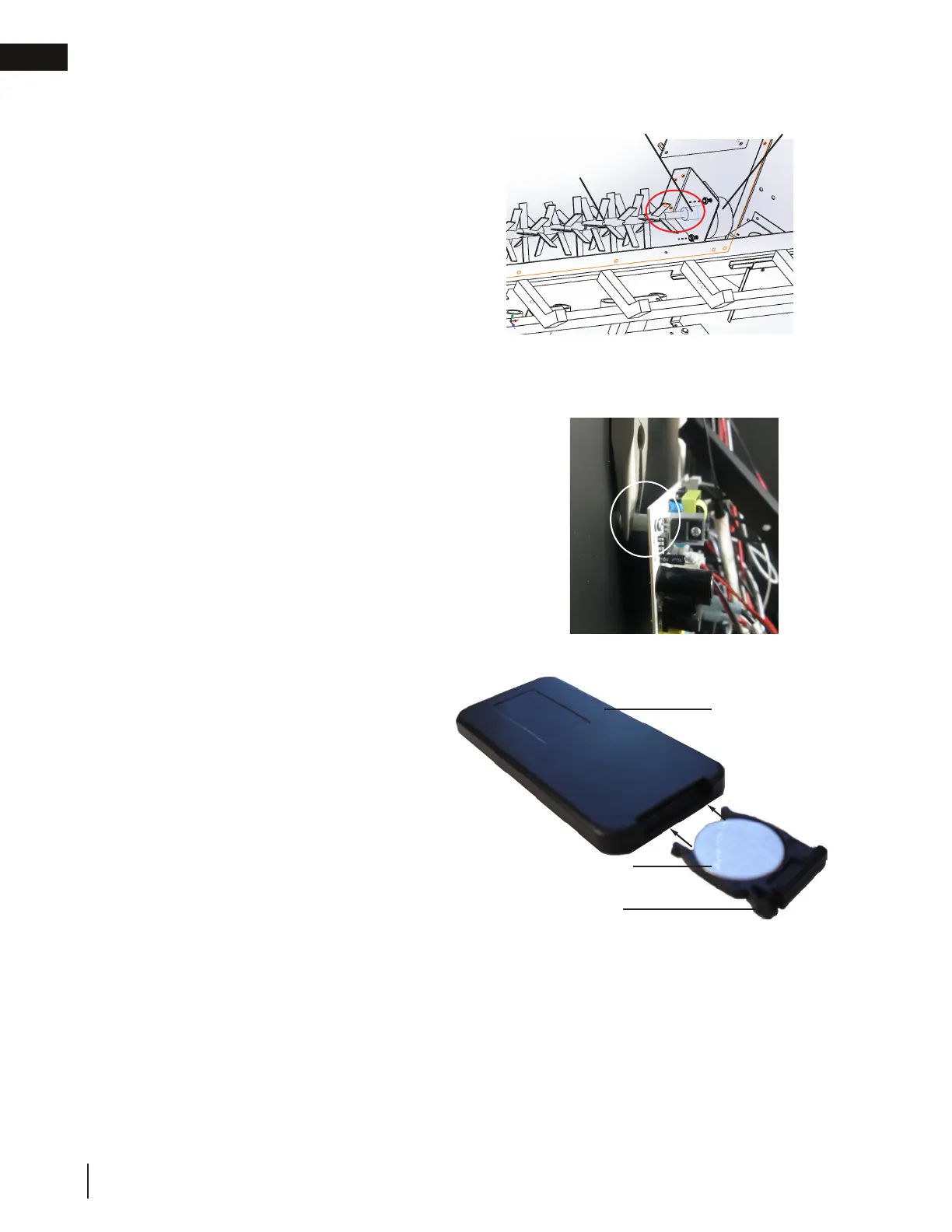

6.4 motor replacement
A. To access the 2 screws holding the motor, remove
the reflector. Pull the reflector out from the adaptor
to release the reflector and pull the adaptor from the
motor.
B. Unplug the quick connect motor wire from the wire
harness.
C. Remove the 2 screws holding the motor and take the
motor out of the appliance.
6.5 control board replacement
A. To prevent stripping of the plastic plugs on the back of the control board, hold the plugs with pliers
while removing each of the 4 screws.
B. Unplug all the wires connected on the control board.
Adaptor
Reflector
Motor
6.6 remote battery installation
Remote
(Rear Side)
Battery Holder
Battery (CR 2025)
A. To replace the existing battery, remove the
battery holder.
B. To remove the battery holder, turn remote
onto front side and press the left side leaver
towards the center while pulling the battery
holder out using the slot provided.
C. Replace existing battery, type CR 2025, with
a new battery and reinstall the battery holder
into the remote by sliding it into position.
D. Battery holder is secure into the remote
control when a clicking noise is heard.
