Napoleon ASCENT SERIES User Manual

EN
W415-2165 / G / 08.15.18
27
replacement parts

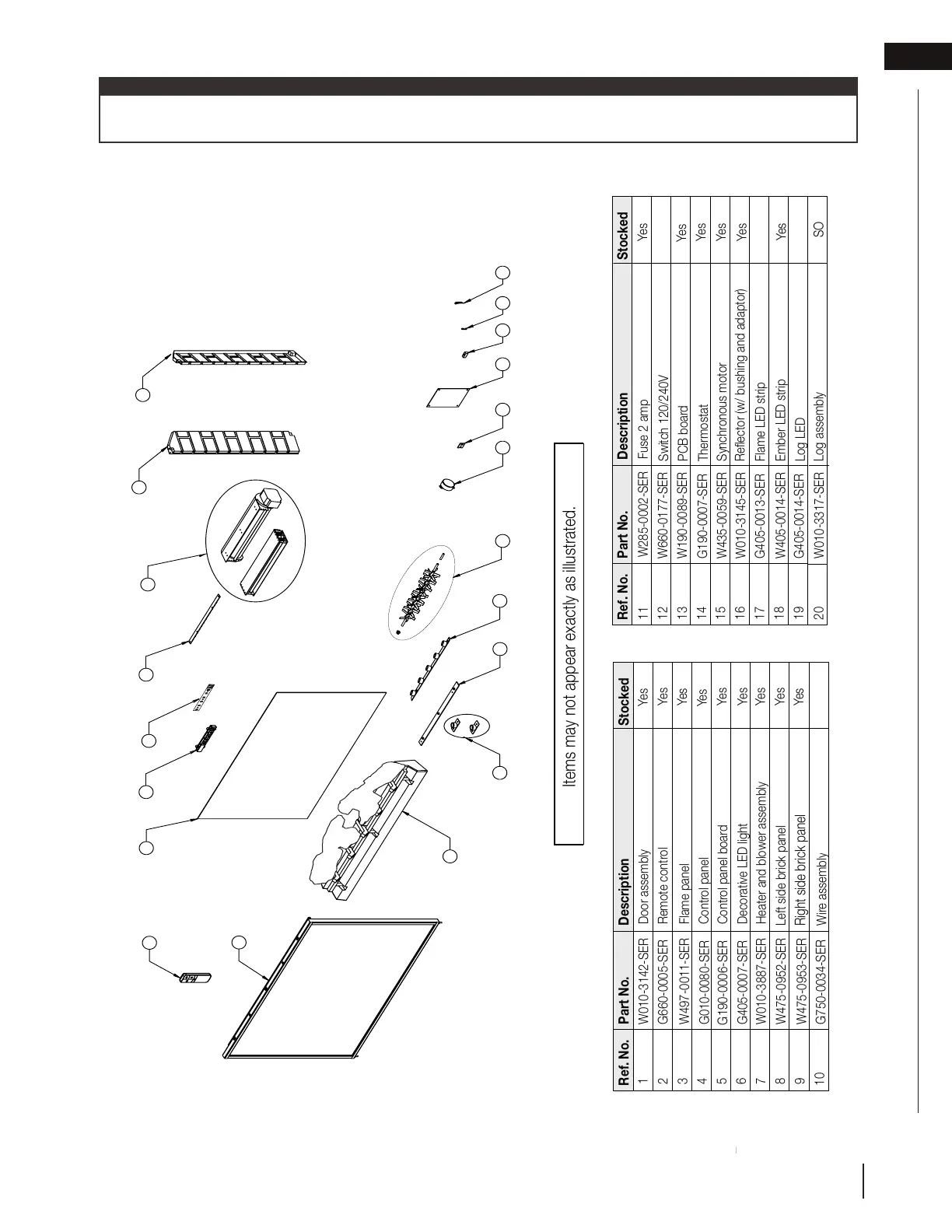

8.1 NEFB33H overview
1
3
20
19
18
17
16
15
14 13
9
8
7
2
12 11 10
Items may not appear exactly as illustrated.
10
Ref. No.
Part No.
Description
3
4
5
6
7
8
9
W010-3142-SER
Door assembly
W010-3887-SER
Heater and blower assembly
G405-0007-SER
Decorative LED light
Right side brick panel
W475-0952-SER
W475-0953-SER
2
1
Stocked
G010-0080-SER
Control panel
W497-0011-SER
Flame panel
G660-0005-SER
Remote control
Ref. No.
Part No.
Description
G750-0034-SER
Wire assembly
W190-0089-SER
PCB board
G405-0013-SER
Flame LED strip
W010-3145-SER
Ember LED strip
W405-0014-SER
Stocked
W660-0177-SER
Switch 120/240V
W435-0059-SER
Synchronous motor
G190-0007-SER
Thermostat
11
12
13
14
15
16
17
18
19
Left side brick panel
G405-0014-SER
Log LED
W010-3317-SER
Log assembly
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
4 6
20
W285-0002-SER
Fuse 2 amp
Yes
G190-0006-SER
Control panel board
5
Yes
SO
Reflector (w/ bushing and adaptor)
Yes
Care must be taken when removing and disposing of any broken glass or damaged components. Be sure to
vacuum up any broken glass from inside the appliance before operation.
note:

Napoleon ASCENT SERIES Specifications

General

Model	Ascent Series
Category	Indoor Fireplace
Fuel Type	Natural Gas or Propane
Ignition System	Electronic Ignition
Vent Type	Direct Vent
Fireplace Type	Direct Vent Gas Fireplace
Dimensions	Varies by model
Weight	Varies by model
Warranty	Limited Lifetime Warranty
Control Options	Remote Control
Viewing Area	Varies by model
