Napoleon ASCENT SERIES User Manual

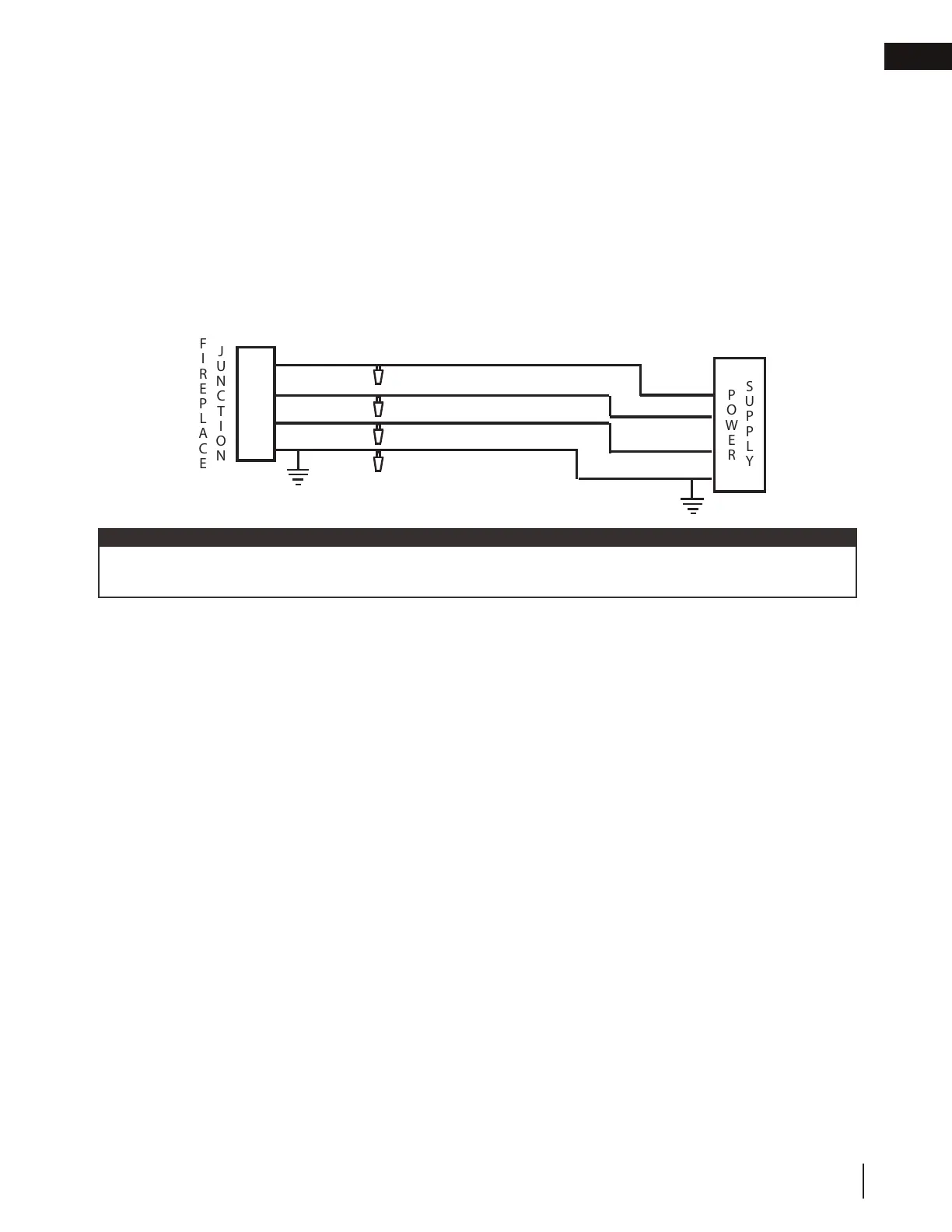

A. Remove the securing screw from the electrical cover plate, located on the right hand side of the
appliance.
B. Add an electrical box connector and feed the supply wires through the 7/8" (22mm) knock out.
C. Separate the black, white, red and green wires that have the wire nuts on them.
D. Remove the wire nuts and secure the black wire (L1) to the black (L1) lead of the power supply.
Connect the red wire (L2) to the red wire (L2) of the power supply. Connect the white wire from the
appliance to the white (N) wire from the power supply. Connect the green wire to the ground wire.
E. Resecure the cover plate.
F. Locate the voltage selector switch inside the appliance. Remove the 2 screws on the metal cover.
G. Ensure that the switch is switched to 240 volt position (230 is printed on the switch). Reinstall the
metal cover.
JUNCTION
FIREPLACE
GROUND
BLACK
BLACK
BLACK
WHITE
WHITE
WIRE NUT
WALL
SWITCH
POWER
SUPPLY
JUNCTION
FIREPLACE
MARRET
RED
RED
RED
RED
GREEN
GREEN
THERMOSTAT
(L1)
(N)
(L1)
(N)
BLACK
WHITE
BLACK
WHITE
SUPPLY
POWER
JUNCTION
FIREPLACE
GREEN
GREEN
(L1)
(N)
(G)
WIRE NUT
RED
(L2)
RED
(L2)
(L1)
(N)
(G)
240V
BLACK
WHITE
BLACK
WHITE
SUPPLY
POWER
JUNCTION
FIREPLACE
GREEN
GREEN
(L1)
(N)
(G)
WIRE NUT
RED
(L2) (L1)
(N)
(G)
120V
EN
W415-2165 / G / 08.15.18
17
installation
To aid with moving the appliance, leave enough wire so that the appliance can be removed from the enclosure
without disconnecting the power supply. If servicing, shut off power supply.
note:

Napoleon ASCENT SERIES Specifications

General

Model	Ascent Series
Category	Indoor Fireplace
Fuel Type	Natural Gas or Propane
Ignition System	Electronic Ignition
Vent Type	Direct Vent
Fireplace Type	Direct Vent Gas Fireplace
Dimensions	Varies by model
Weight	Varies by model
Warranty	Limited Lifetime Warranty
Control Options	Remote Control
Viewing Area	Varies by model
