2.4 installing the appliance
Due to the many different materials used on different walls, it is highly
recommended to consult your local builder before installing this
appliance on the wall.
A. Select a location that is not prone to moisture and is located at least
36" (91.4cm) away from combustible materials such as curtain drapes,
furniture, bedding, paper, etc.
B. Have 2 people hold the appliance against the wall to determine the fi nal
location.
C. Place appliance face down on a soft, non abrasive surface. Remove
the bracket from the back of the appliance by removing the screws (see
illustrations below).
D. Mark out location, then mount the bracket(s) onto the wall using the supplied screws. This bracket MUST
have the hooks facing upward and be level.
E. With the wall mounting bracket
installed, have 2 people lift the
appliance up and insert the 2
hooks on the bracket into the 2
slots on the back of the appliance.
F. Check the appliance for stability
ensuring that the bracket will not
pull free from the wall.
HOOK
SCREWS
HOOK
SIDE VIEW
BODY
FLOOR
GLASS FRONT
21 5/8"
55cm

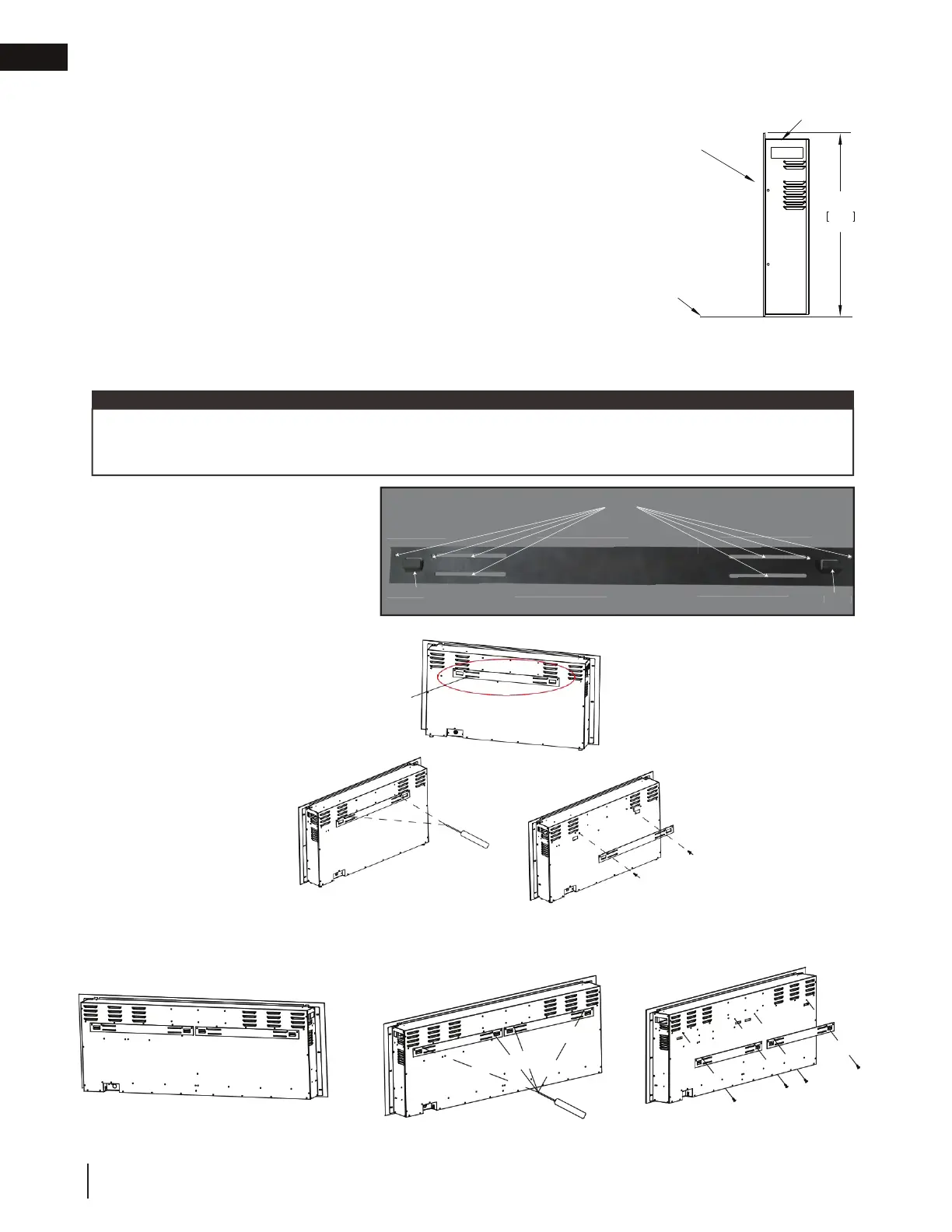

NEFL42/50FH-MT-EU Bracket Illustrated
It is strongly recommended that the mounting bracket be screwed into the wall studs where possible. If the wall
studs cannot be used, ensure that the supplied plastic anchors are used to affi x the bracket to the wall and the
bracket is adequately secured.
