fi nishing
A. Carefully place crystal embers into the bottom media tray on the
front of the appliance as illustrated.
B. Apply an even layer from side to side.

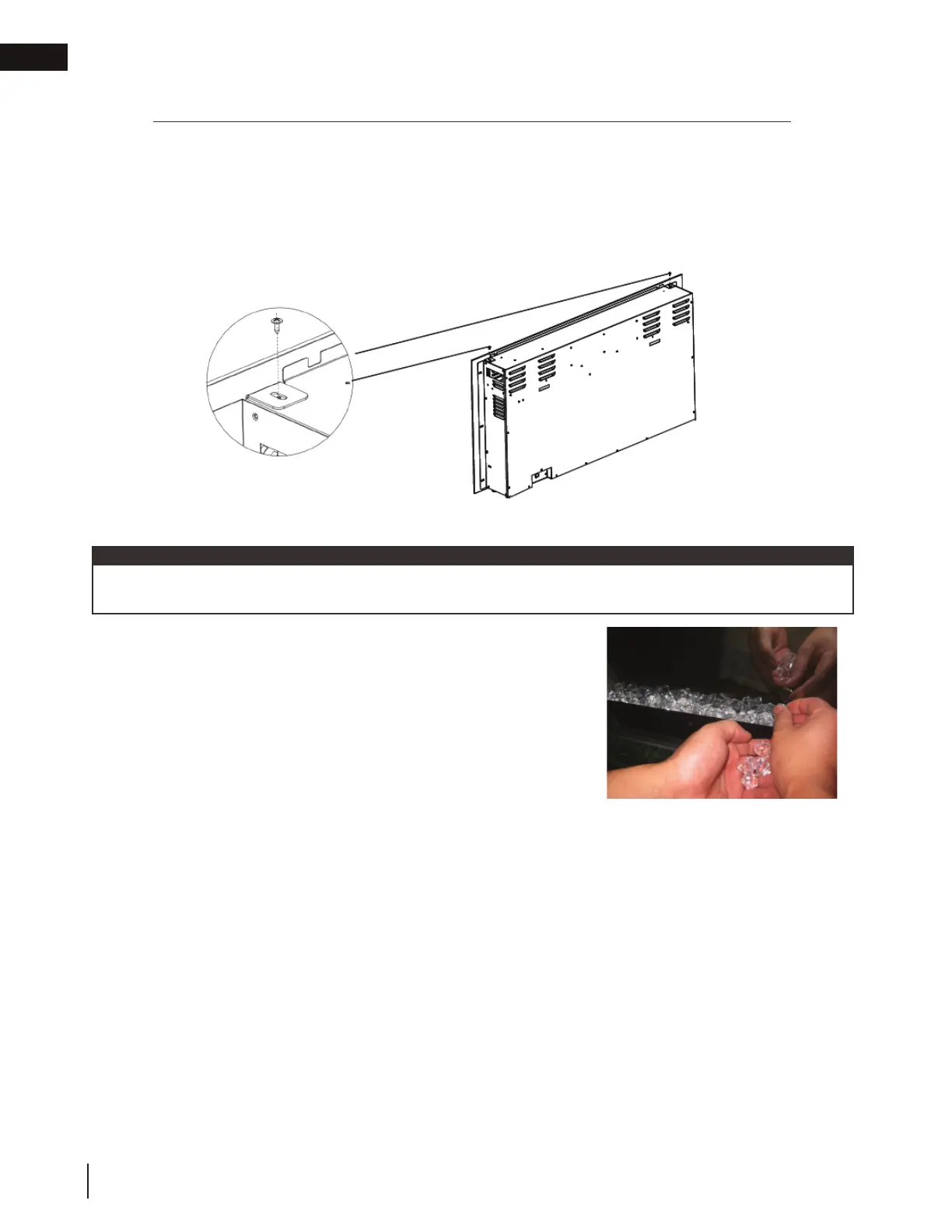

A. Remove the 2 screws from the top of the appliance (Fig. 1).
B. Have 2 people lift the mesh trim up and away from the appliance, holding the mesh trim vertical - not fl at -
while carrying. Place the mesh trim face down onto a soft, non-abrasive surface, being careful not to fl ex
the mesh trim.
C. Install the crystal embers (see "crystal ember installation" section). Install the front mesh trim by aligning
with the pins on the appliance. This ensures the touch display panel performs properly.
FOR WALL-MOUNT, PARTIAL-RECESS AND MANTEL-INSTALLED APPLIANCES ONLY:
3.2 mesh trim front removal
3.3 crystal ember installation
The mesh trim front must be removed and the appliance must be secured in its fi nal location before the crystal
embers are installed.
note:
Fig. 1
