Napoleon PHANTOM Series User Manual

EN
W415-1838 / B / 06.01.20
19
operating instructions

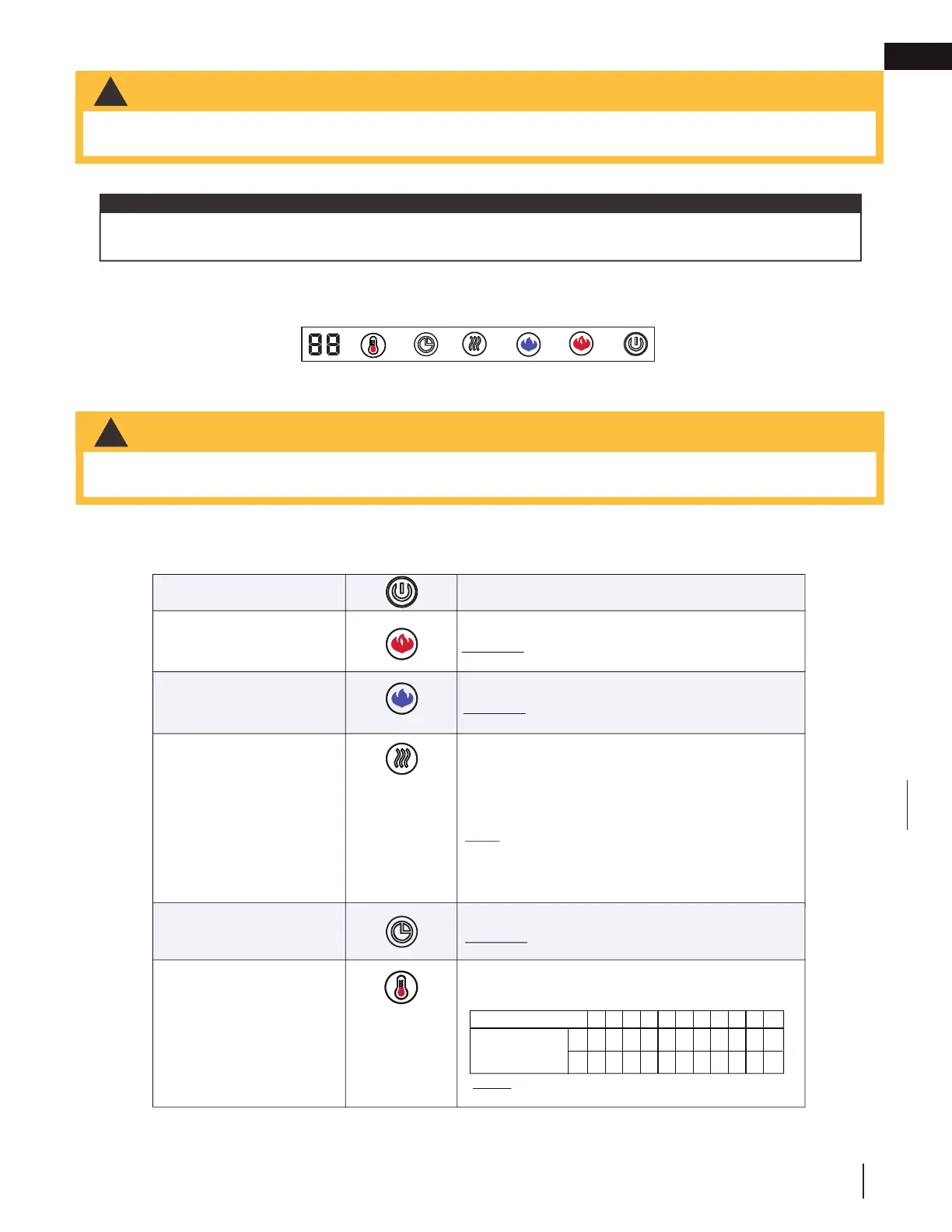

4.0 operating instructions
Once the appliance has been plugged into a grounded electrical outlet, it is ready to operate.
The main power button is located on the front bottom right side of the appliance.
4.1 main power button
4.2 operating touch display panel
The touch display panel is shown by LED's on the front bottom right of the appliance. The LED's will
disappear after 10 seconds of no function change. The main power button will be dim.
Ensure the house circuit breakers for the power supply are turned on. In the event of a power failure, the
appliance will lose its memory function and will reset to factory mode when the power returns.
note:
• While the appliance is operating, do not remove the mesh trim panel. This will cause the remote control and
touch panel to disfunction.
!
WARNING
• Do not move or remove the mesh trim panel when the appliance is plugged in and operating. This will cause
the remote control and touch panel to stop functioning.
!
WARNING
POWER
Turns the appliance ON/OFF.
FLAME - ORANGE
FLAME - BLUE
TIMER
TEMPERATURE
Controls Orange Flame brightness.
6 Settings: F5-F4-F3-F2-F1-F0. Flame dims from F5 to F1.
F5 is the brightest setting and F0 is off.
Controls Blue Flame brightness.
6 Settings: F5-F4-F3-F2-F1-F0. Flame dims from F5 to F1.
F5 is the brightest setting and F0 is off..
Turns the timer ON/OFF.
9 Settings: 0.5h, 1h, 2h, 3h, 4h, 5h, 6h, 7h, 8h. Press button
until desired setting is reached.
Display Value
Temperature
0123456789N
18 19
20 21 22 23 24 25 26 27
ON
64 66
68 70 72 74 76 78 80 82
ON
° C
° F
HEATER
Turns the heater ON/OFF.
(H0) - No heater or blower.
(BL) - Blower only.
(H1) - Heater blows warm air (950W).
(H2) - Heater blows hot air (2000W).
NOTE: Heater functions cycle from H0-BL-H1-H2. Press
and hold the heater button for 5s to lock the heater and
temperature setting onto the selected setting. Hold the button
for another 5s to unlock the heater and temperature setting.
1. Press once to turn the touch panel indicator ON.
2. Press button until desired setting is reached.Digital display
shows setting circles as follows:
NOTE: Holding the button for 5s will switch the temperature
from C° to F° and vice versa.
