EN
W415-1838 / B / 06.01.20
13
installation
Due to the many different fi nish materials used on walls, it is highly recommended to consult your local builder
before installing this appliance in the wall.
Select a location that is not prone to moisture and is located at least 36" (91.4cm) away from combustible
materials such as curtain drapes, furniture, bedding, paper, etc.

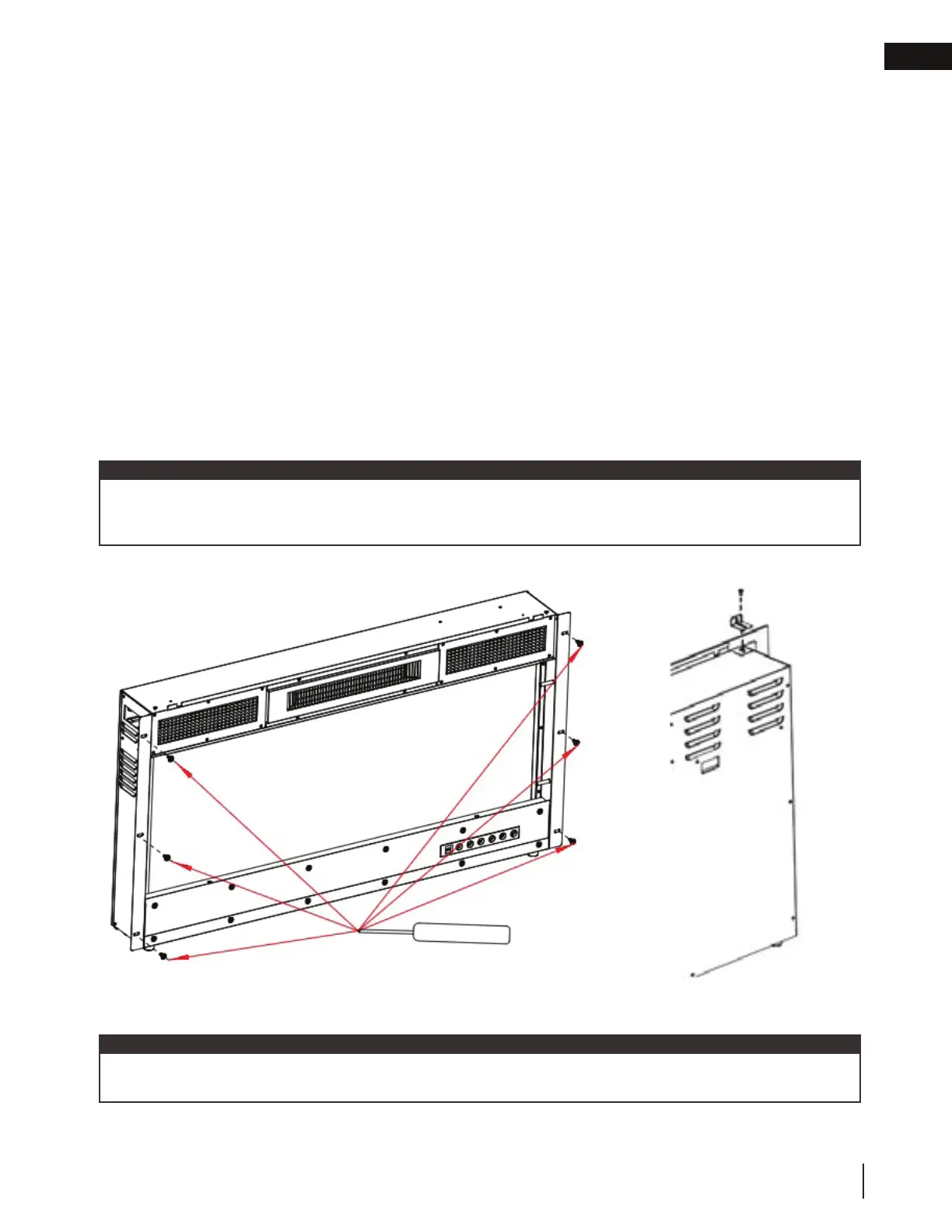

2.5 recessing the appliance into the wall
A. Measure the appliance and create a rough-in with electrical.
B. Remove the mesh trim (see "mesh trim front removal" section).
C. Hold the appliance up to ensure it will fi t into the framing.
D. If the appliance is fully recessed into the wall:
• Bend the 2 top tabs upwards on the mesh trim front (Fig. 3, next page).
• Use the 6 screws (provided) to lock the appliance into the wall with the existing 2 side fl anges
(Fig. 1).
• Install the media and reinstall the mesh trim front.
E. If partial recess into the wall:
• Use the 2 mounting brackets (supplied) to lock the appliance to the wall (Fig. 2).
It is recommended the walls of the appliance enclosure be fi nished (i.e. drywall) to avoid exposed insulation or
vapour barrier coming in contact with the appliance. This will ensure clearance to combustibles is maintained.
2 sets of holes are provided for recessing into wall. The wall structure may limit how far the appliance can be
recessed. Use the appropriate set of holes when recessing to the frame. It may be necessary to use the 4 holes
on the top and bottom.
note:
note:
Fig. 1
Fig. 2
