2-4 | ni.com
Chapter 2 Installation and Configuration

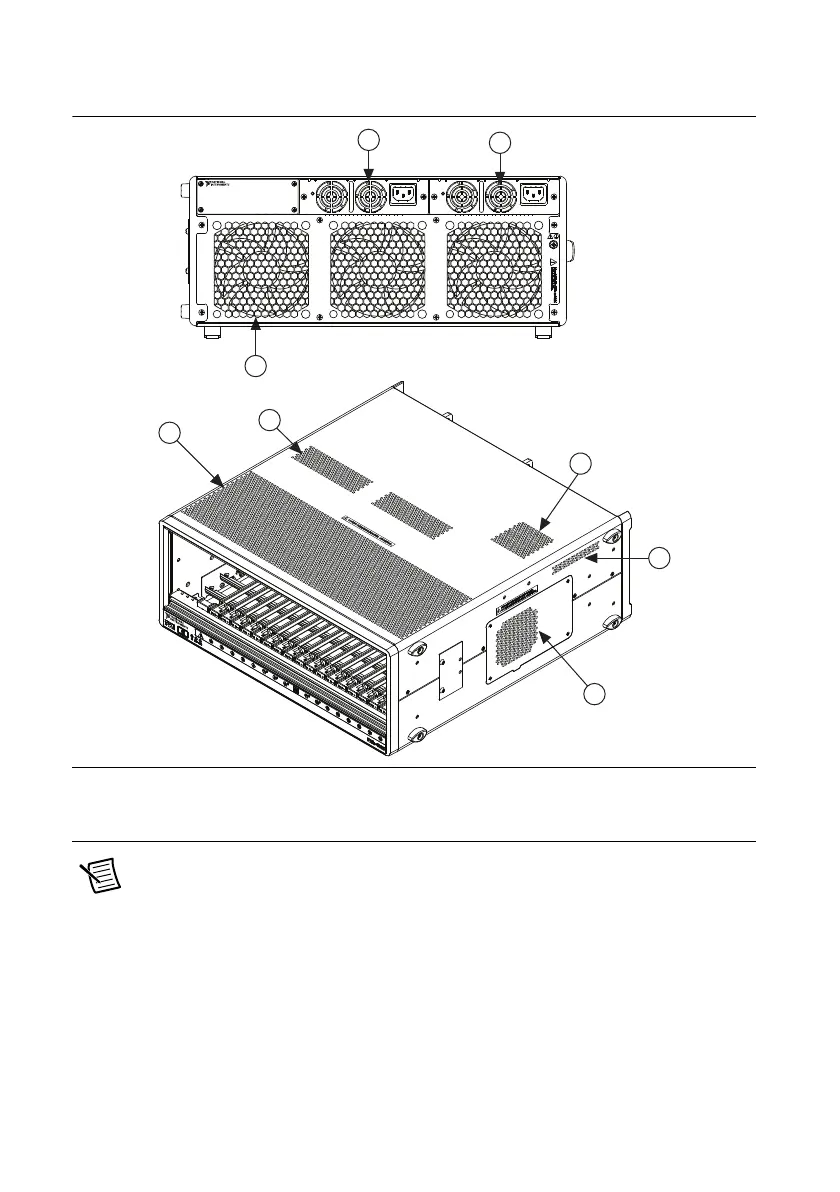

Figure 2-2. PXIe-1095 Chassis Vents
Note The side exhaust vent (not shown) is located on the left side of the chassis.
1 PXI Module Air Intake (3x)
2 Power Supply Intake (2x)
3 PXI Module Air Exhaust Vent
4 Power Supply Air Exhaust Vent (2x)
5 Timing and Synchronization Upgrade Air Exhaust Vent
6 Timing and Synchronization Upgrade Air Intake
7 Side Air Intake Vent (Right)/Side Air Exhaust Vent (Left)
