National Instruments sbRIO-9607 User Manual

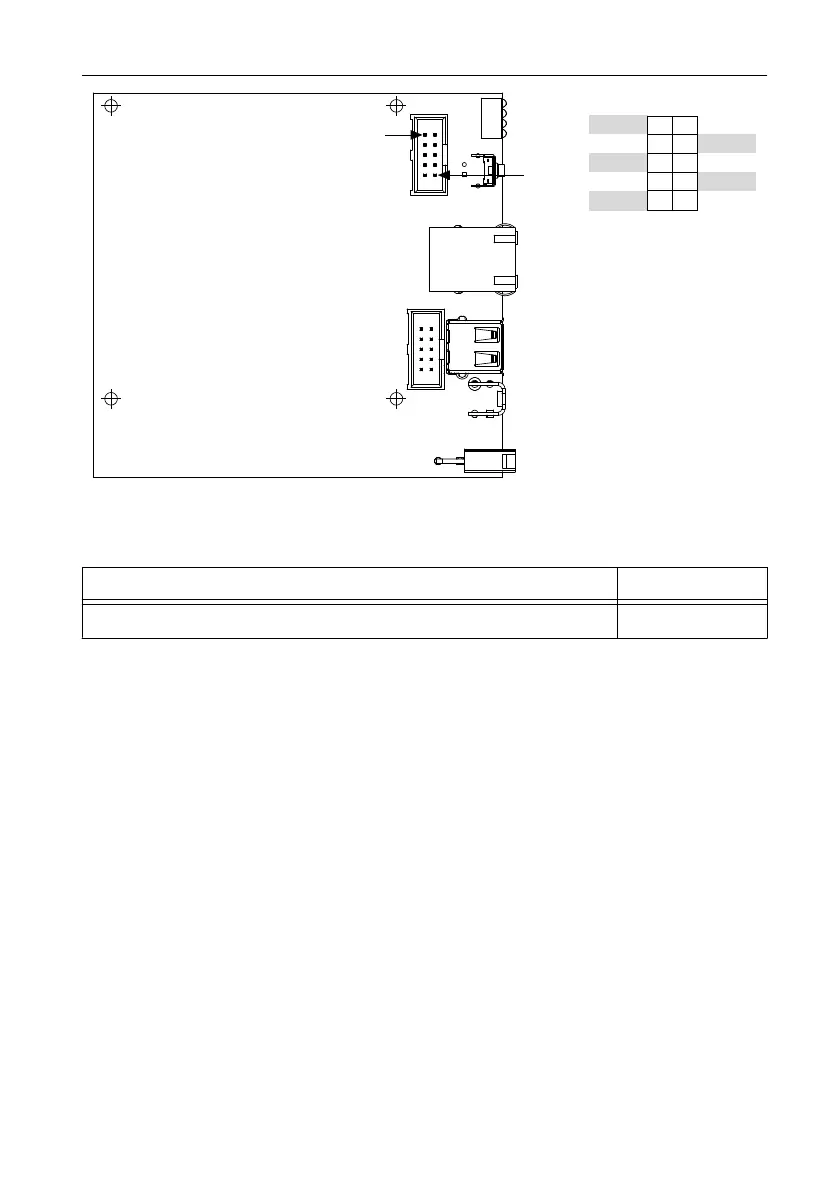

Figure 15. RS-232 Serial Port Pinout
Pin 1
Pin 10
RI
RTS
GND
TXD
DCD
SHIELD
DSR
DTR
CTS
RXD
1 2
3 4
5 6
7 8
9 10
The following accessories are available to connect the RS-232 serial port.
Table 7. RS-232 Serial Port Accessories
Accessory Part Number
NI Single-Board RIO 10-pin header to 9-pin D-SUB 153158-10
CAN Port
The sbRIO-9607 has a CAN port that is implemented with a shrouded header, 10-position
modular jack to provide connections to a CAN bus.
The following figure shows the pinout for the CAN port.
22 | ni.com | NI sbRIO-9607 User Manual
