Mechanical Considerations
Proper mechanical design is critical for rugged environments in which the NI sbRIO device
may be subjected to extreme temperatures, shock, vibration, and other factors. In particular,
pay special attention to thermal performance to ensure that your application meets the
NI sbRIO device operating requirements.
Dimensions
The following figures specify dimensions for the sbRIO-9607.

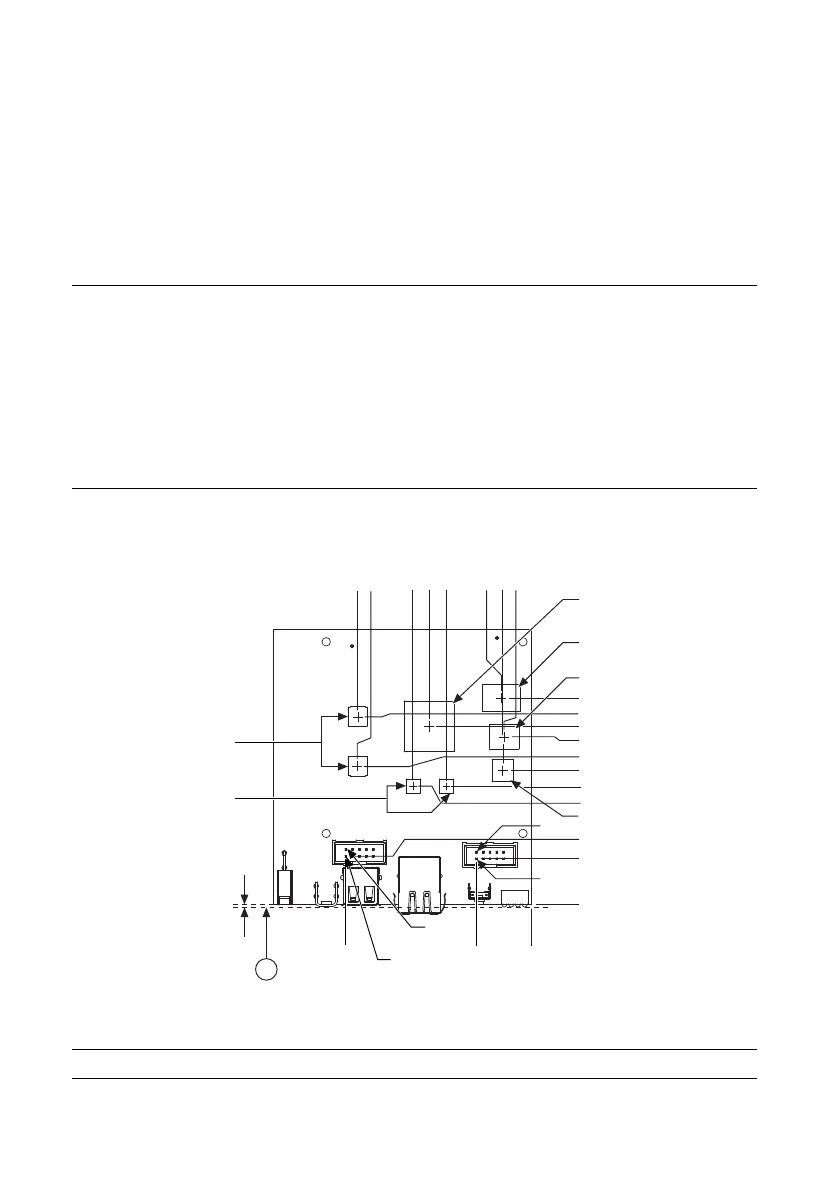

Figure 2. Primary-Side Dimensions in mm (in.)
65.01 (2.559)
64.38 (2.534)
43.95 (1.730)
38.24 (1.505)
31.84 (1.253)
11.19 (0.440)
10.76 (0.423)
10.30 (0.405)
77.33 (3.044)
NAND Flash
DDR Memory
70.39 (2.771)
51.82 (2.040)
66.73 (2.627)
50.17 (1.975)
62.85 (2.474)
44.36 (1.746)
44.38 (1.747)
18.13 (0.714)
17.17 (0.676)
69.47 (2.735)
USB PHY
ENET PHY
20.63 (0.812)
0.0 (0.000)
0.0 (0.000)
CPU/FPGA
CPLD
Pin 2
Pin 1
0.64 (0.025)
1
Pin 2
Pin 1
1. Back of Front Panel
NI sbRIO-9607 User Manual | © National Instruments | 3
To Next Page
