Internal Real-Time Clock (RTC)
The system clock of the NI sbRIO device gets the date and time from the internal RTC at
startup. This synchronization provides timestamp data to the device.
RIO Mezzanine Card Connector

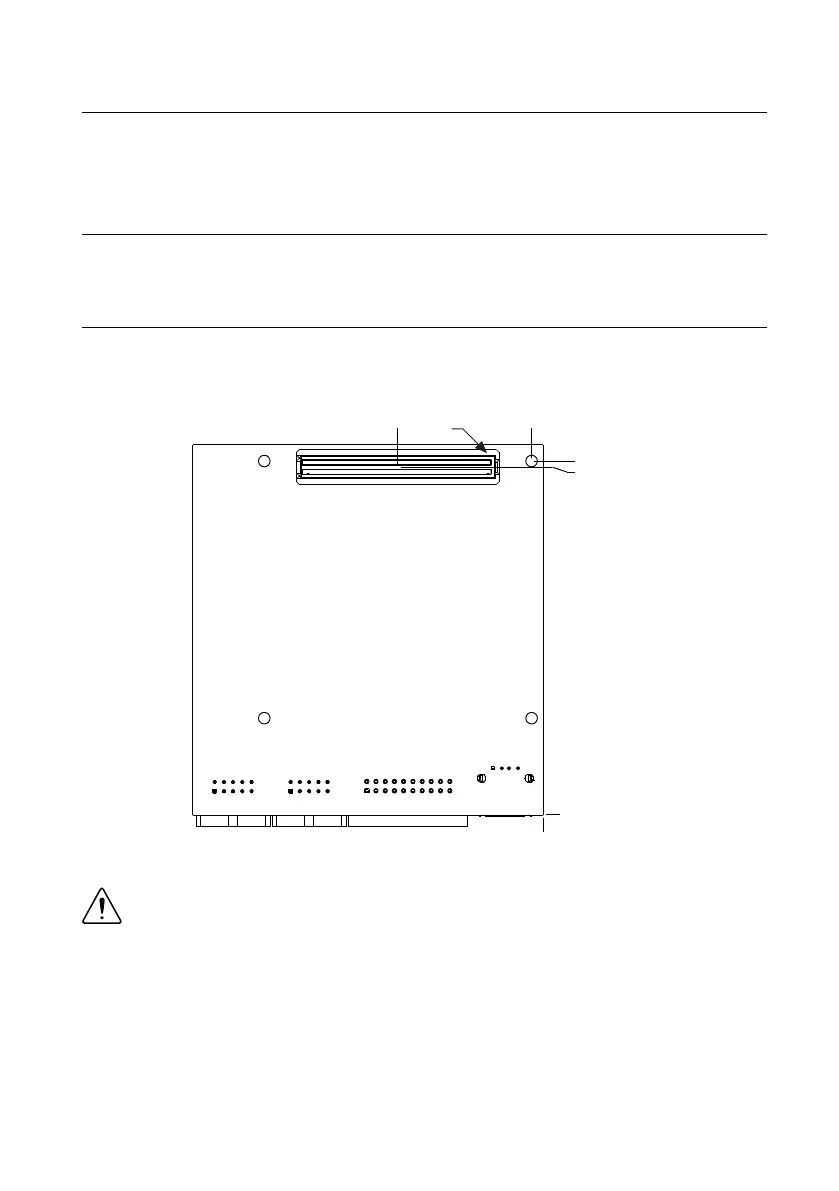

The following figure shows the dimensions of an example RMC and the locations for
connecting to the NI sbRIO device.
Figure 20. RMC Connector Location and Dimensions on Example RMC
98.40 (3.000)
96.75 (3.809)
3.20 (0.126)
40.03 (1.576)
Pin 1
0.0 (0.000)
0.0 (0.000)
Caution RMCs are not hot-swappable. Disconnect power before mating or
unmating.
28 | ni.com | NI sbRIO-9607 User Manual
