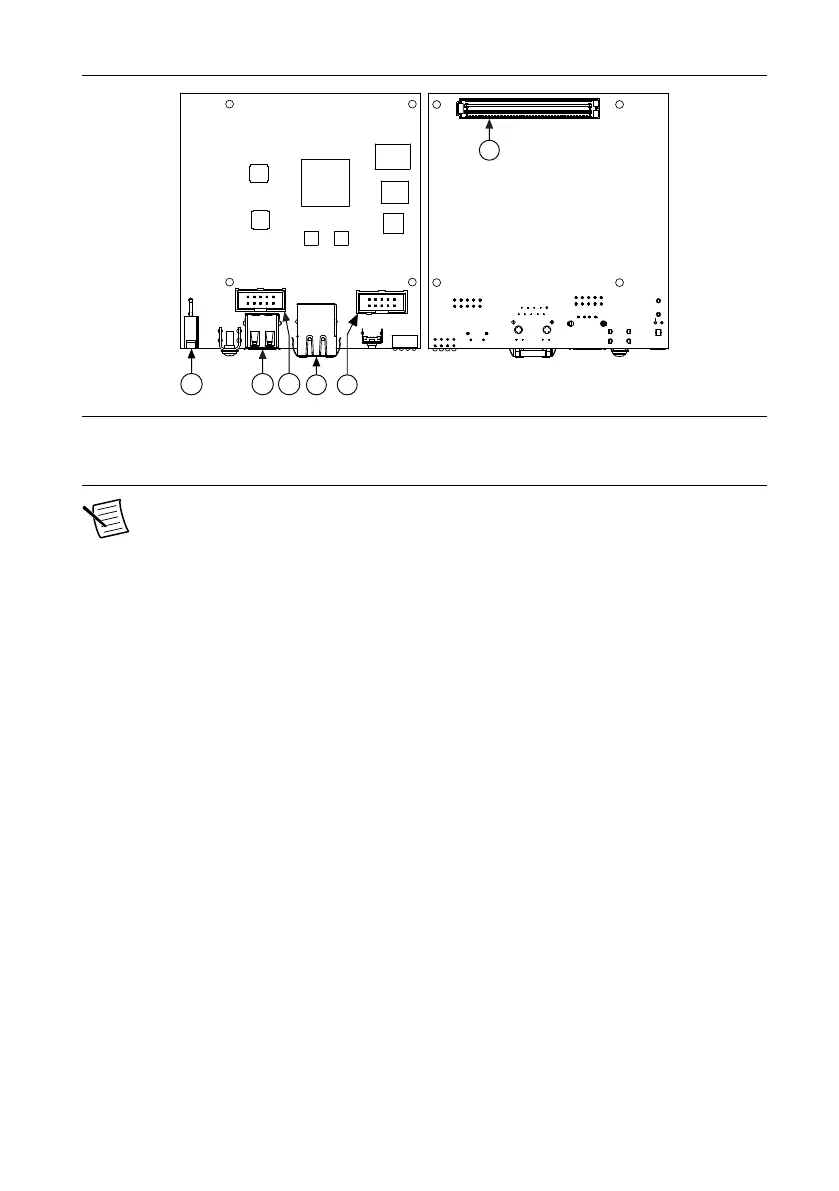

Figure 14. sbRIO-9607 Ports and Connectors
1. J9, Power Connector
2. J10, USB Host Port
3. W1, CAN (CAN0)
4. J7, RJ-45 Ethernet Port
5. W2, RS-232 (ASRL1)
6. J1, RIO Mezzanine Card Connector
Note Ethernet, CAN, RS-232, RS-485, and RMC processor peripherals created
using the CLIP generator are all are routed through the FPGA. These peripherals
will be temporarily unavailable when the FPGA is reconfigured. Downloading your
FPGA application to the flash of the sbRIO-9607 ensures that the FPGA is
configured before the driver can access a given peripheral. Refer to the Configuring
FPGA Startup App section in this document for more information.
Connector Descriptions
The following table lists the connectors on the NI sbRIO device and the part number and
manufacturer of each connector. Refer to the manufacturer for information about using and
matching these connectors.
18 | ni.com | NI sbRIO-9607 User Manual
