National Instruments sbRIO-9607 - Mounting the sbRIO-9607

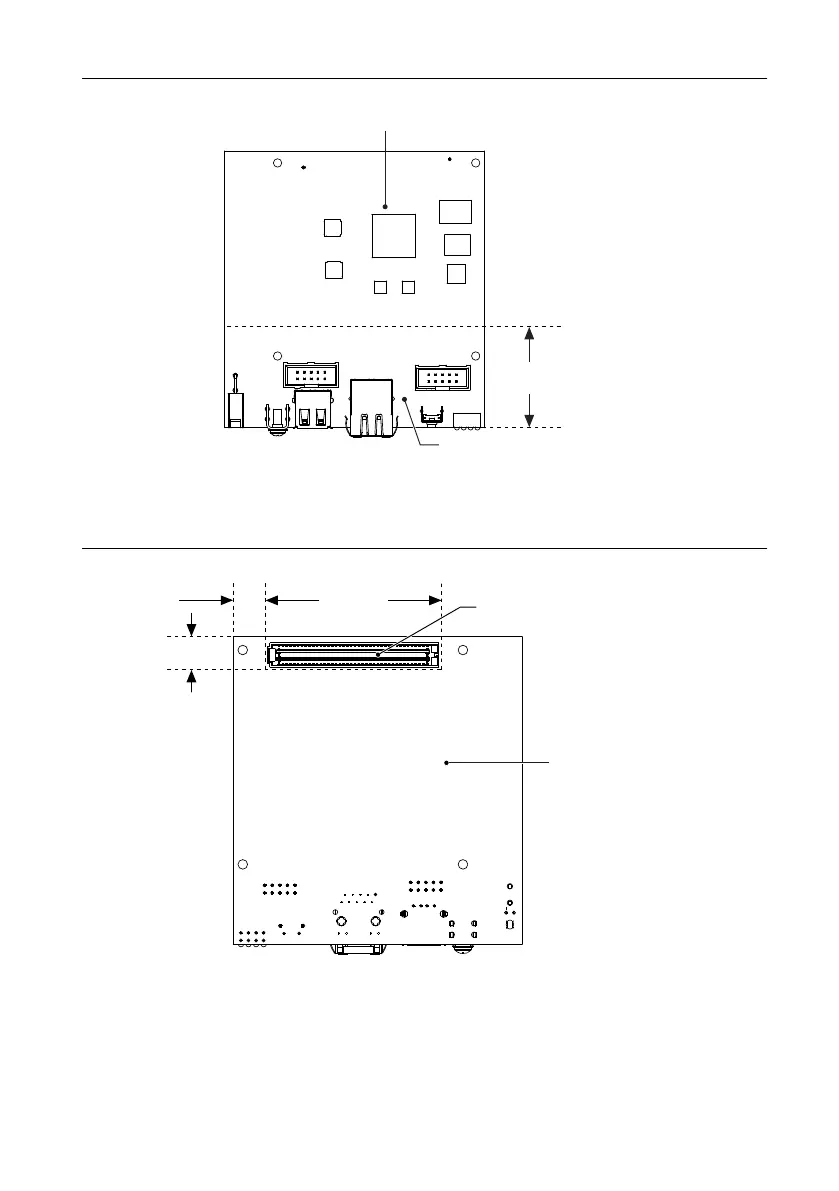

Figure 5. Maximum Component Height of Primary Side
31.75 mm
(1.250 in.)
Min Adjacent Surface Height = 8.89 mm (0.350 in.)
Max Component Height =
17.27 mm (0.680 in.)
Max Component Height = 7.11 mm (0.280 in.)
Min Adjacent Surface Height =
19.05 mm (0.750 in.)
Figure 6. Maximum Component Height of Secondary Side
60. 96 mm
(2.400 in.)
Max Component Height =
7.62 mm (0.300 in.)
10.16 mm
(0.400 in.)
11.43 mm
(0.4500 in.)
Max Component Height =
6.15 mm (0.242 in.)
Min Adjacent Surface Height =
7.62 mm (0.300 in.)
Min Adjacent Surface Height =
7.62 mm (0.300 in.)
Mounting
You can mount the NI sbRIO device in a variety of ways in order to maximize system
performance. Some mounting methods might require custom fasteners or unique assembly
6 | ni.com | NI sbRIO-9607 User Manual
