Table 3. Example Connector Configuration and Calculated Standoff Height (Continued)
Component Manufacturer, Part Number Height
Required additional standoff
height
—
0.15 mm (0.006 in.)
Total calculated standoff
height
—
9.65 mm (0.380 in.)
Consult Samtec for alternative heights and options. You must observe keepaways and
maximum heights with all RMC and mating connector combinations.
Refer to the RIO Mezzanine Card Connector section of this document for more information
about connecting an RMC.
Power Connector
The sbRIO-9607 has a power connector to which you can connect a power supply. The
following table shows the pinout for the power connector.

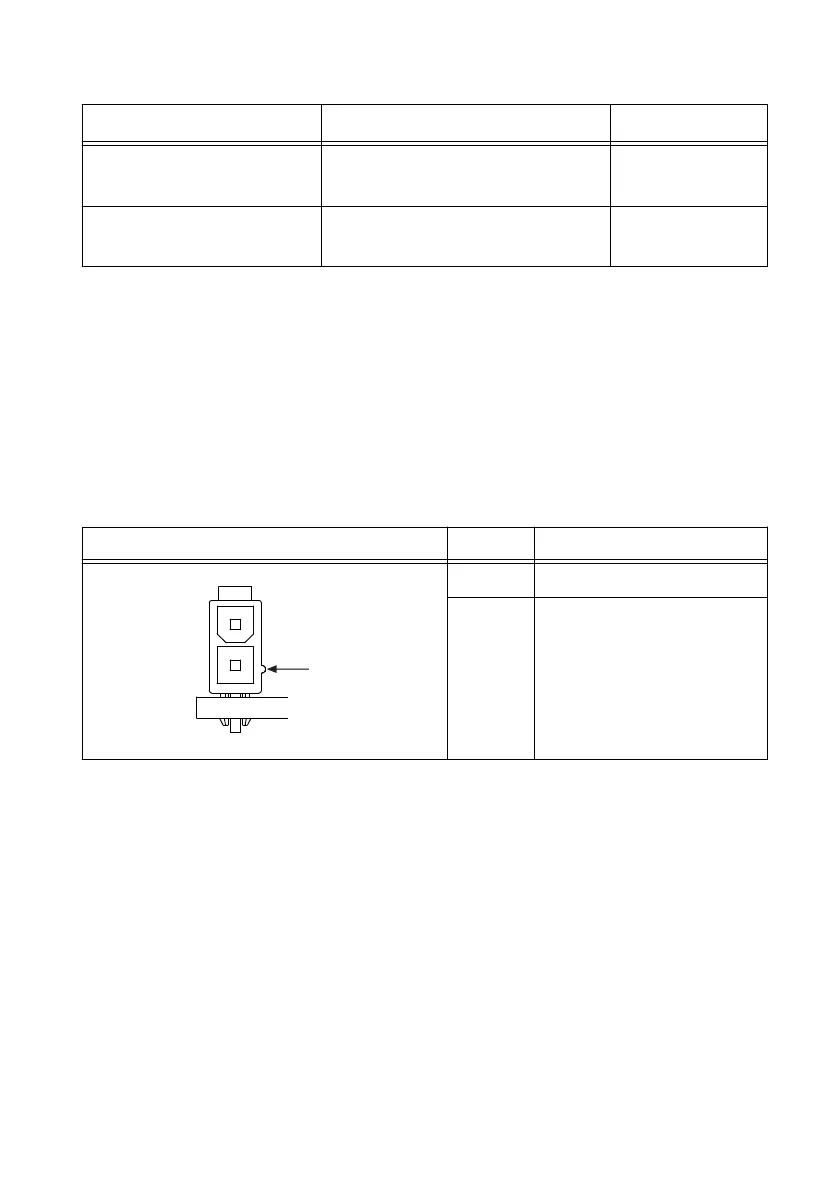

Table 4. Power Connector Pinout
Pinout Pin Description
C Common
V Power input
The sbRIO-9607 has reverse-voltage protection.
RJ-45 Gigabit Ethernet Port
The sbRIO-9607 has a tri-speed RJ-45 Gigabit Ethernet port. By default, the Ethernet port is
enabled and configured to obtain an IP address automatically. The Ethernet port can be
configured in MAX.
The following table shows the pinout for the RJ-45 Gigabit Ethernet port.
20 | ni.com | NI sbRIO-9607 User Manual
