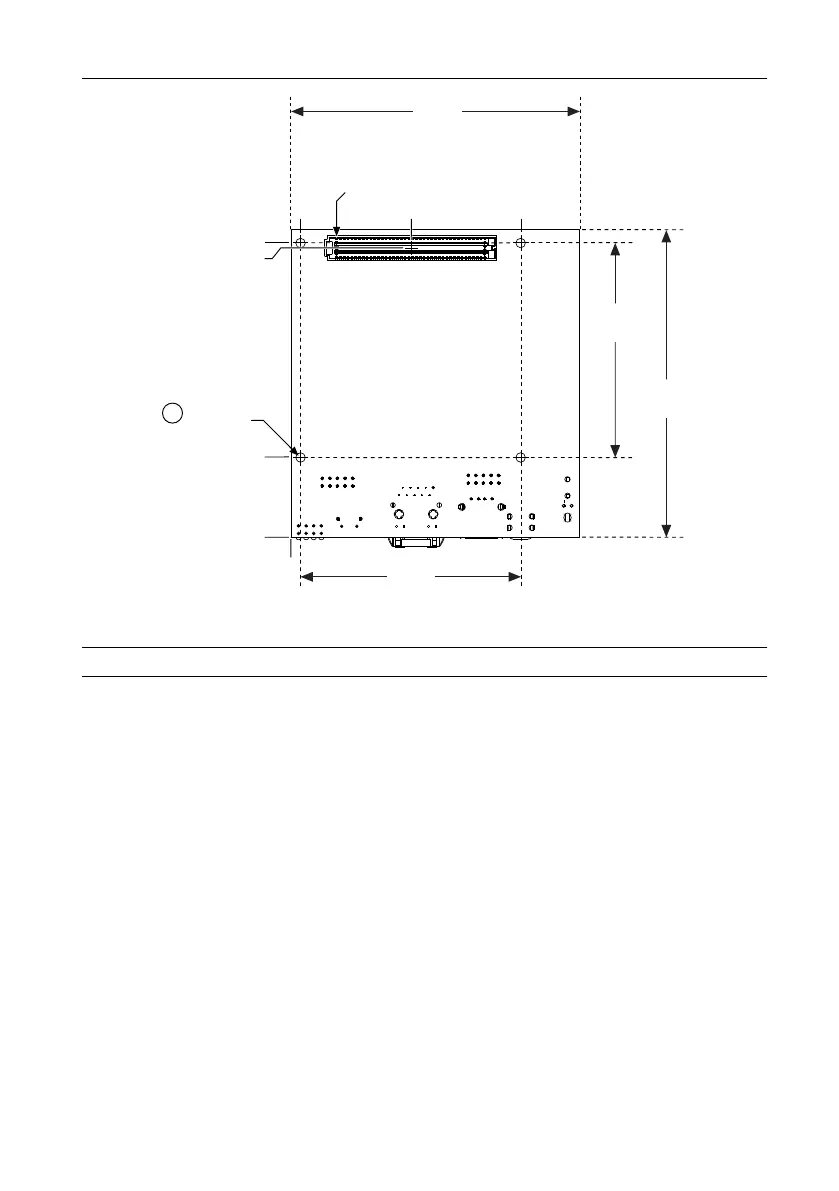

Figure 3. Secondary-Side Dimensions in mm (in.)
96.52
(3.800)
76.84 (3.025)
3.20 (0.126)
96.74 (3.809)
98.40 (3.874)
40.03 (1.576)
Pin 1
4x Ø 3.18
(0.125)
26.67 (1.050)
0.0 (0.000)
1
0.0 (0.000)
73.63
(2.899)
71.72
(2.824)
102.87
(4.050)
1. Holes and Keepouts Sized for M3 Standoff (4.5 mm Hex) or 4-40 Standoff (3/16-in. Hex)
