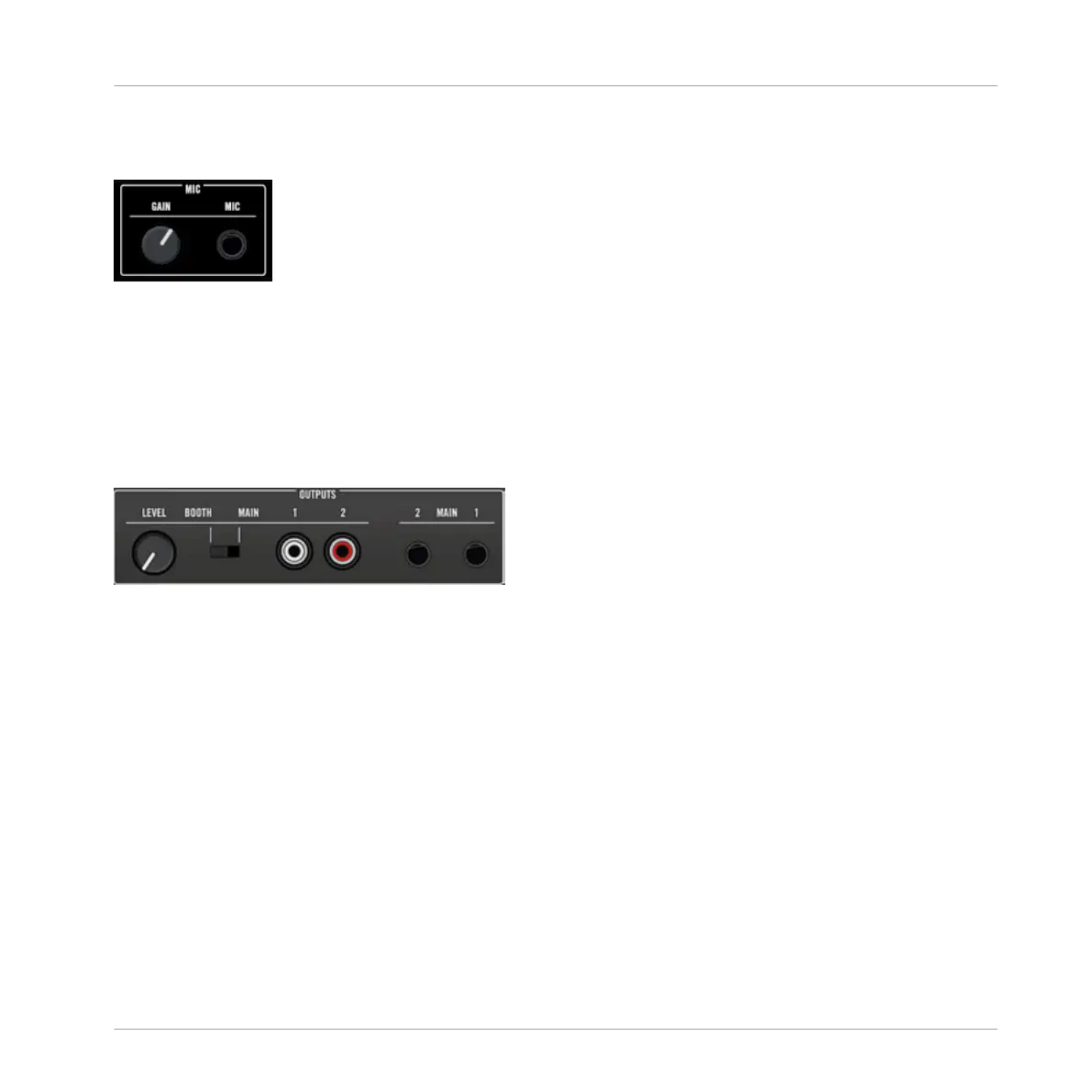

6.2.1 MIC Section
GAIN knob: Adjusts the gain of your microphone.
MIC socket: Microphone input (jack 1/4")
6.2.2 OUTPUTS Section
The OUTPUTS
section
holds sockets for the main outputs of your TRAKTOR KONTROL S2
controller.
The OUTPUTS section on the rear panel.
LEVEL knob: Controls the RCAs' output gain when BOOTH/MAIN switch is set to BOOTH.
BOOTH/MAIN switch:
Setting the switch to BOOTH allows for the RCAs' output volume to be
controlled by the adjacent GAIN control knob instead of the MAIN volume knob of the Mixer.
In MAIN mode, both RCA and the 1/4" sockets are controlled by the MAIN volume knob on the
top of the Mixer.
MAIN/BOOTH Outputs 1/2 RCA sockets (1/2): Main outputs of TRAKTOR KONTROL S2 (line level,
unbalanced). Use these sockets to connect your TRAKTOR KONTROL S2 to an amplification
system (or master mixer) with unbalanced inputs.
MAIN Outputs 1/2 1/4" sockets (1/2): Main outputs of TRAKTOR KONTROL S2 (line level, bal-
anced). Use these sockets to connect your TRAKTOR KONTROL S2 to an amplification system
(or master mixer) with balanced inputs.
Hardware Overview
The Rear Panel
Traktor Kontrol S2 - Manual - 95
