VX150 TO VX2 TROUBLESHOOTING MANUAL RESPONDING TO ALARMS
VERSION 2.0 2023-04-20 PAGE 3.1.41

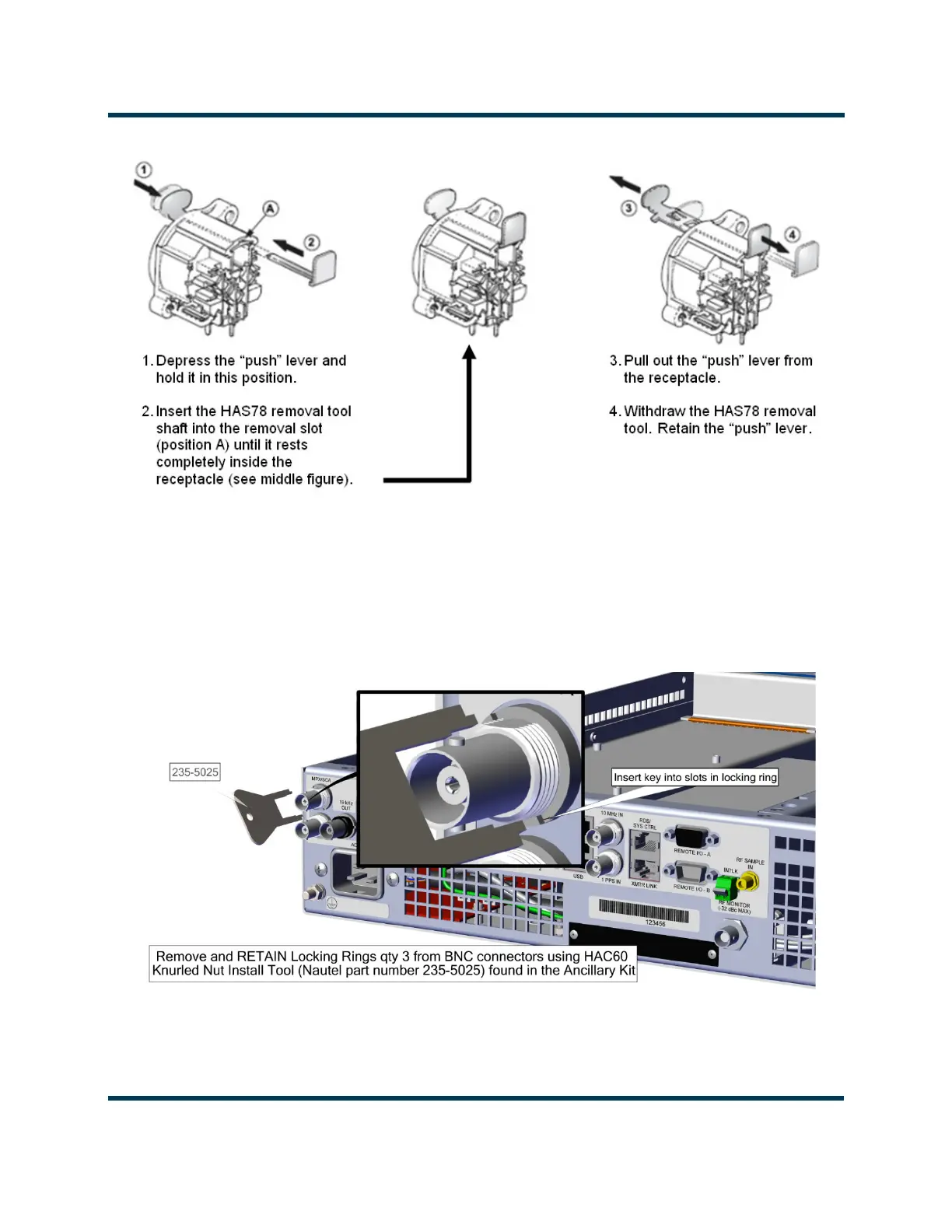

Figure 3.1.7: XLR Connector Lock Removal
9. Remove and retain the four #4 screws near the ANALOG AUDIO connectors on the rear panel.
10. Remove and retain the three locking rings from three BNC connectors (two MPX/SCA and one 19
kHz OUT
) using the Knurled Nut Tool (Nautel Part # 235-5025), found in the ancillary kit. See
Figure 3.1.8.
Figure 3.1.8: BNC Connector Removal
11. Remove the Analog Audio PWB from the transmitter.
