VX150 TO VX2 TROUBLESHOOTING MANUAL RESPONDING TO ALARMS
VERSION 2.0 2023-04-20 PAGE 3.1.49

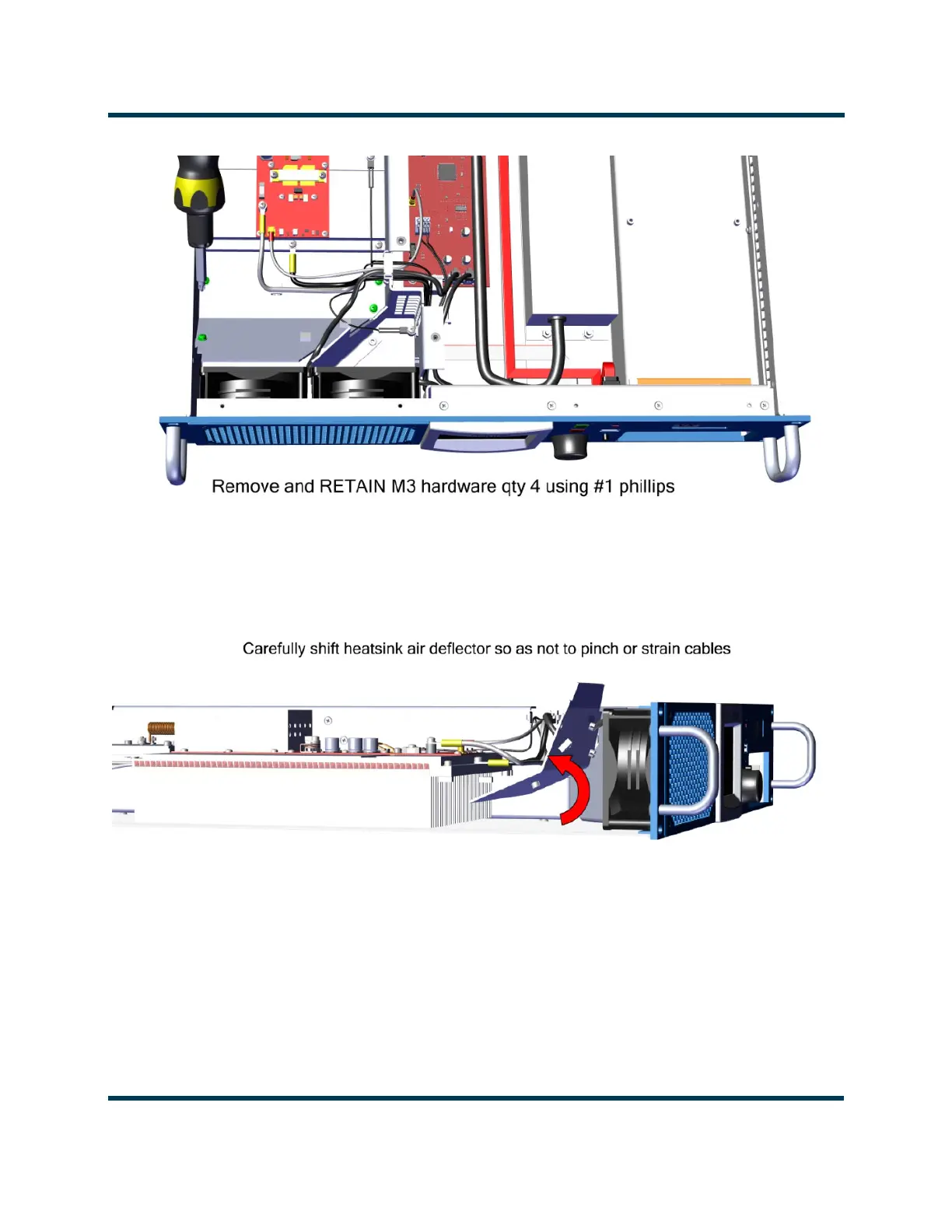

Figure 3.1.14: Removal of Air Deflector M3 screws
9. Carefully tilt the Heatsink Air Deflector to allow the Fan Splitter to be removed, being careful not to
pinch or strain the cabling. See Figure 3.1.15 and Figure 3.1.16 on page 3.1.50.
Figure 3.1.15: Tilting of Heatsink Air Deflector
