VX150 TO VX2 TROUBLESHOOTING MANUAL RESPONDING TO ALARMS
PAGE 3.1.50 VERSION 2.0 2023-04-20

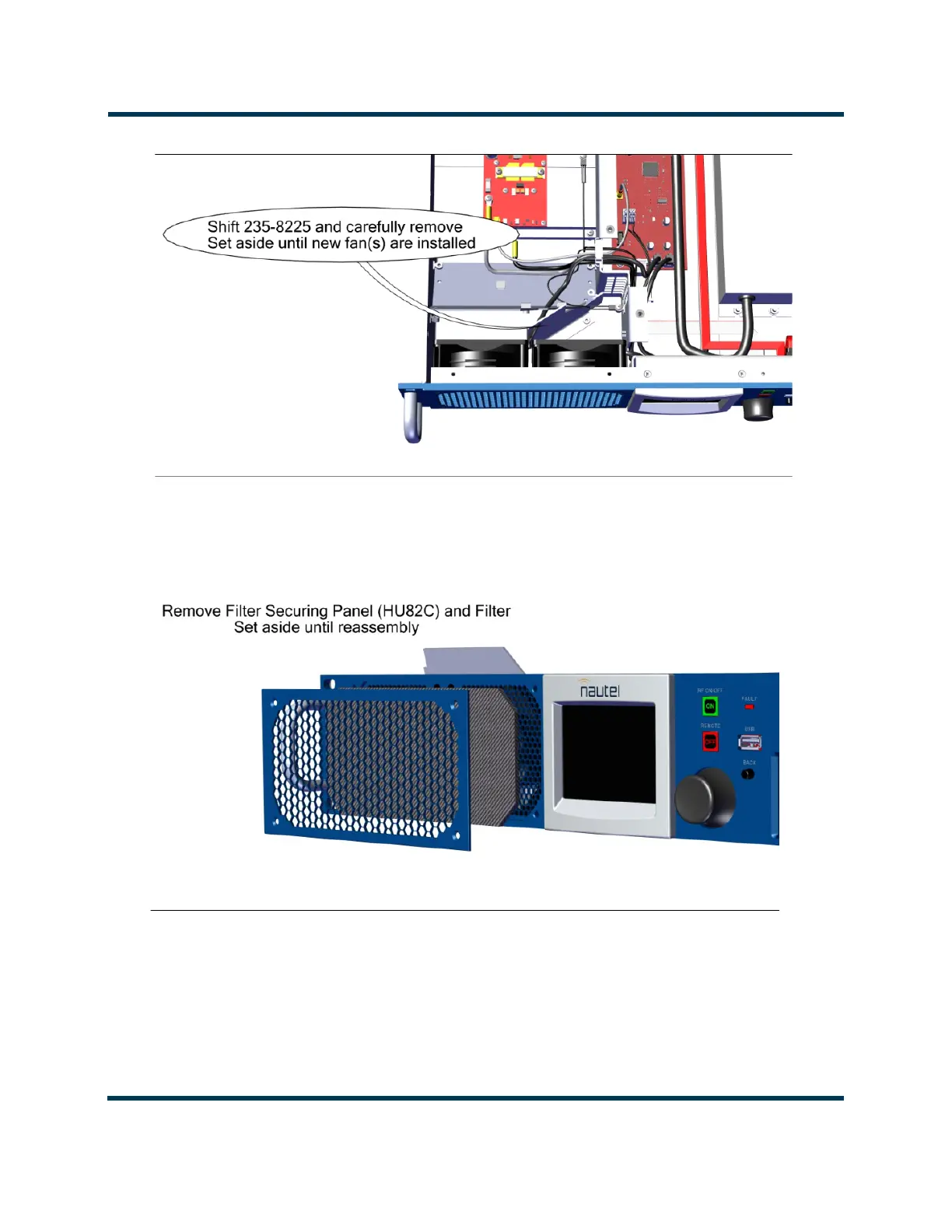

Figure 3.1.16: Fan Splitter Removal
10. Remove and retain the four M3 screws securing the Filter Securing Panel and filter media. See
Figure 3.1.17.
Figure 3.1.17: Air Filter and Media Bracket Removal
11. Remove and retain the M3 screws (only two per fan) securing the defective fan. See Figure 3.1.18
on page 3.1.51.
