VX150 TO VX2 TROUBLESHOOTING MANUAL RESPONDING TO ALARMS
PAGE 3.1.56 VERSION 2.0 2023-04-20

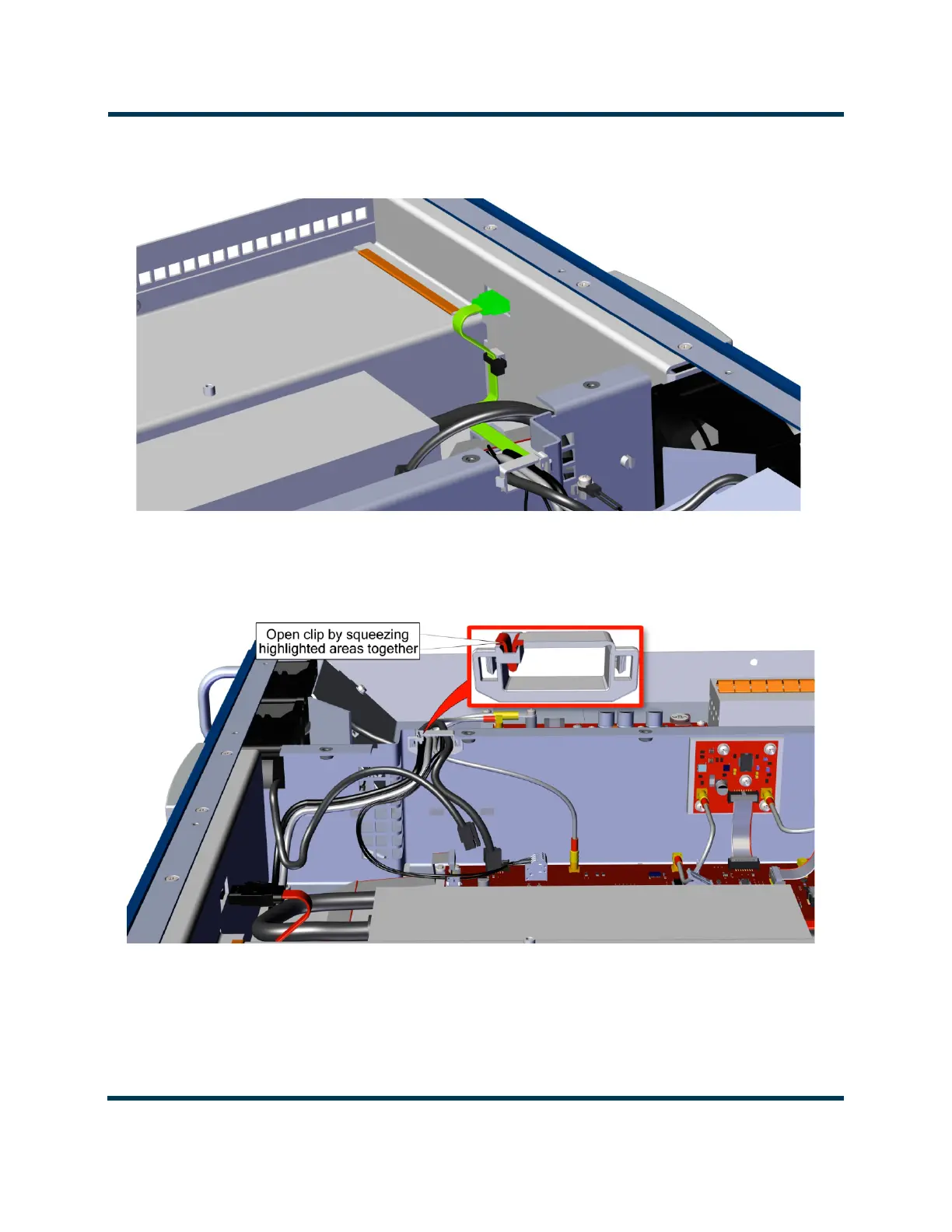

9. Cut the securing cable tie and disconnect cable from FPUI Display. See Figure 3.1.27.
Figure 3.1.27: FPUI Cable Disconnect
10. Release the Fan wiring securing clamp by squeezing the clamp together. See Figure 3.1.28.
Figure 3.1.28: Fan Wiring Securing Clamp
