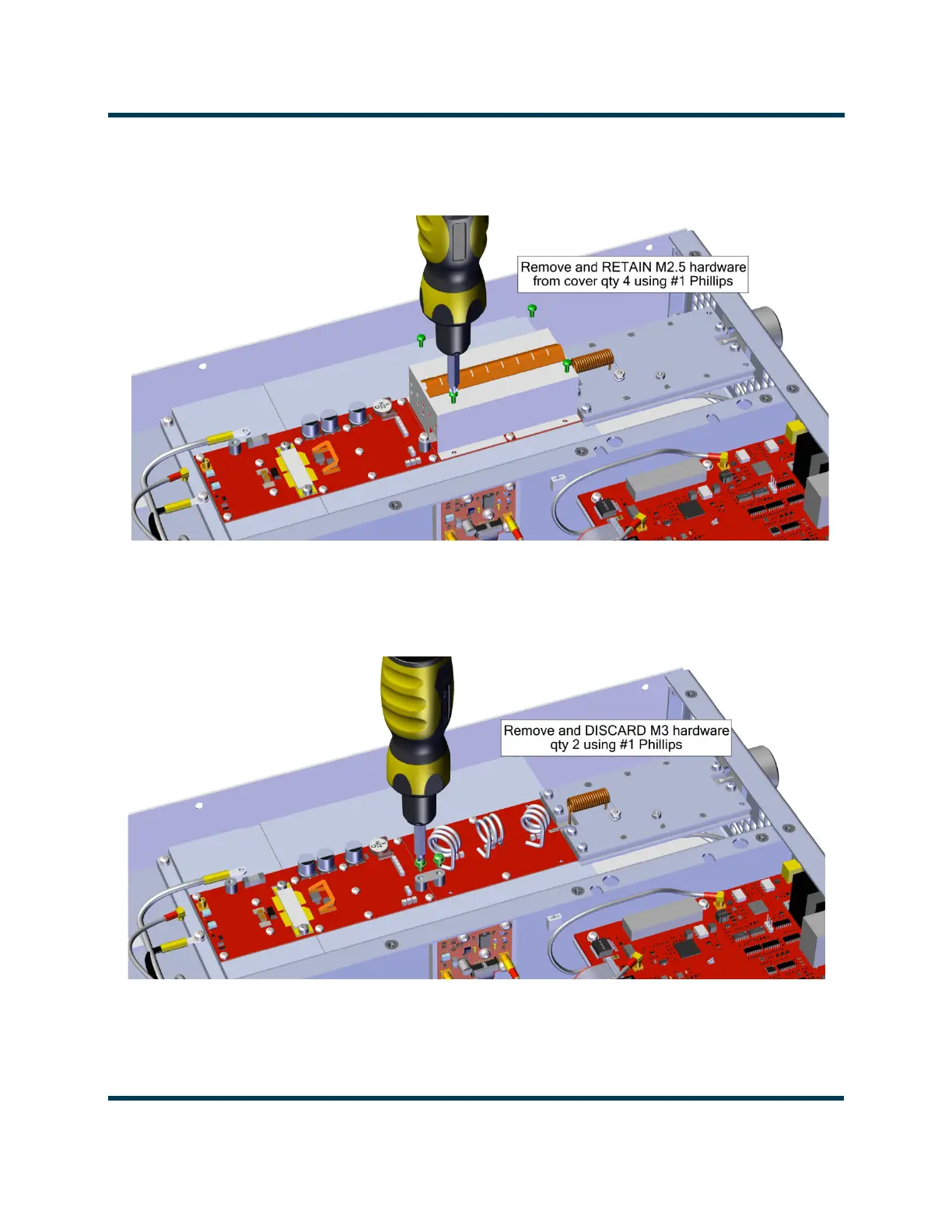

6. Remove and retain the four M2.5 screws securing the Filter Cover and remove the cover. See
Figure 3.1.36.
Figure 3.1.36: Filter Cover Removal
7. Remove and discard the two M3 screws securing the jumper between the Filter and the PA PWB.
See Figure 3.1.37.
Figure 3.1.37: PA PWB to Filter Connection
8. Remove and retain the jumper.
