Chapter 2. Installation
2.1 Product Overview

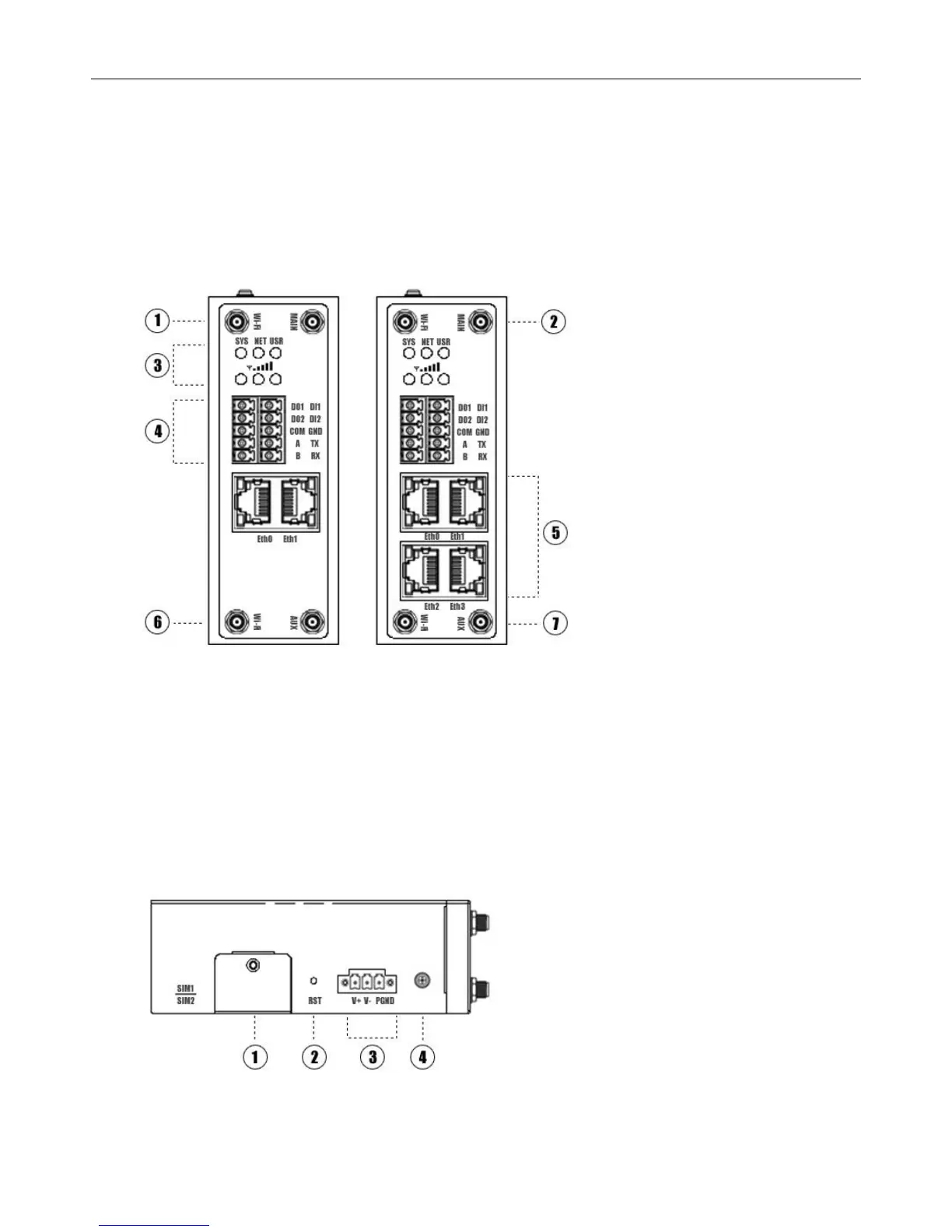

• Front Panel
① Wi-Fi Antenna
② MAIN Cellular Antenna
③ LED Indicator
④ Serial port & DIDO
⑤ Ethernet port
⑥ Wi-Fi Antenna
⑦ AUX Cellular Antenna
• Left Side Panel
① SIM Card Slot
② Reset Button
③ Power Connector
④ Grounding Stud
