4.7.2 IPSec
IPSec facilitates configuration of secured communication tunnels. The various tunnel
configurations will be displayed in the Tunnel Table at the bottom of the page. All tunnels are
create using the ESP (Encapsulating Security Payload) protocol.

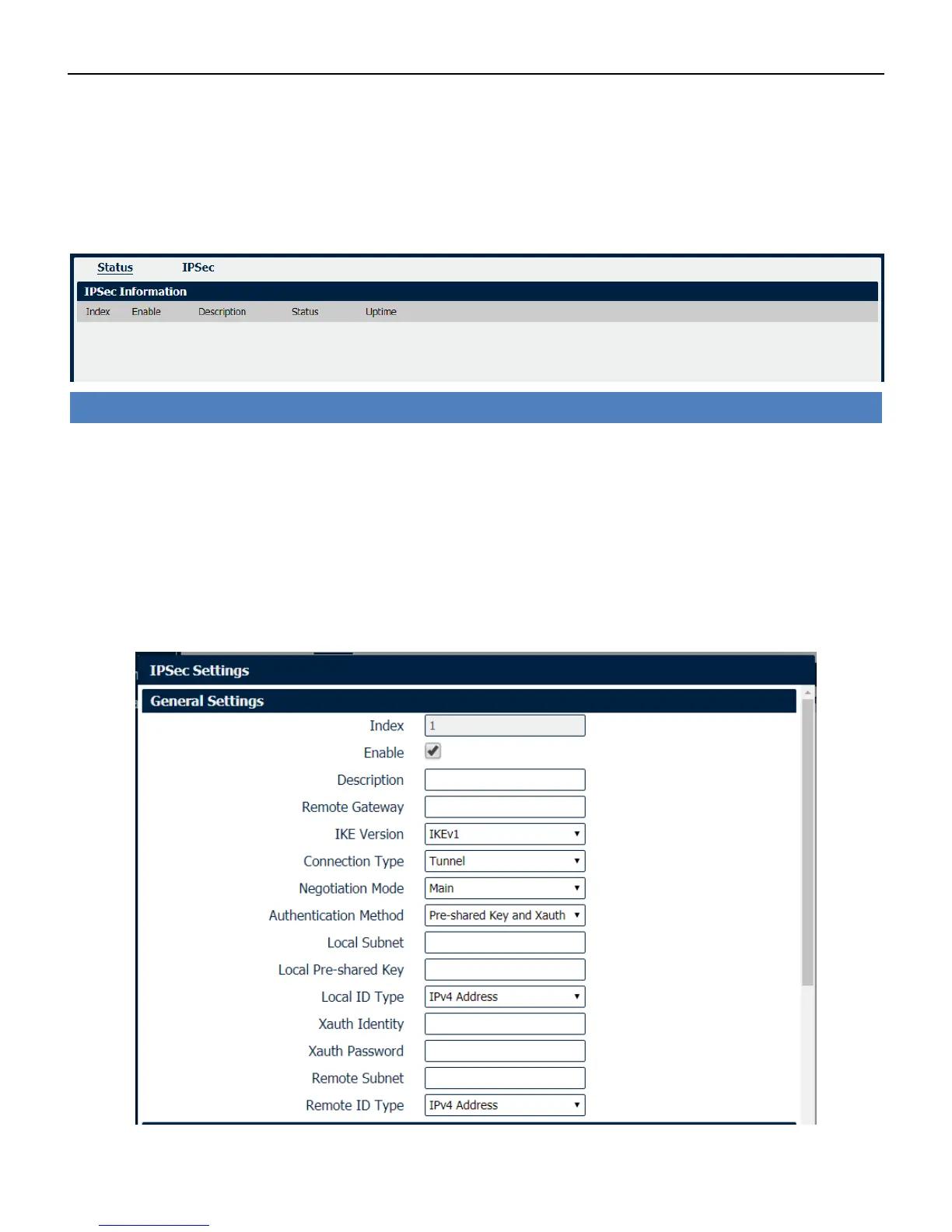

VPN->IPSec->Status
• Enable
Displays current IPSec settings is enable or disable.
• Description
Displays the description of current VPN channel.
• Status
Displays the current VPN connection status.
• Uptime
Displays the connection time since VPN is established.
