4.4.2 Digital IO
This section allows you to set the Digital IO parameters. The Digital input could be used for
triggering alarm, and Digital output could be used for controlling the slave device by digital
signal.

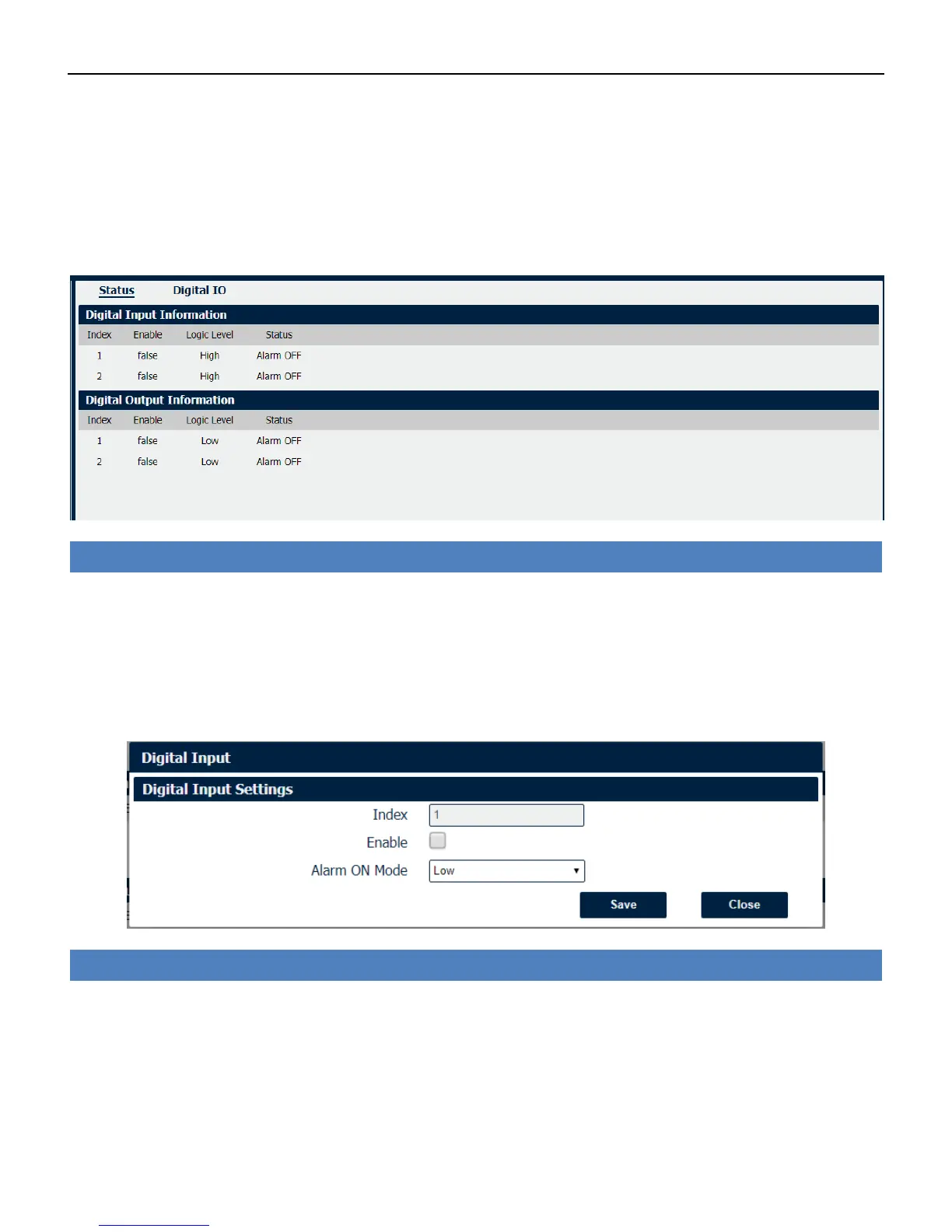

You could review the status of Digital IO as below.
Digital IO->Status
• Enable
Displays status of current digital IO function.
• Logic Level
Displays the electrical level of digital IO port.
• Status
Displays the alarm status of digital IO port.
Digital IO->Digital Input
• Enable
Check this box to enable digital Input function.
• Alarm ON Mode
Select the electrical level to trigger alarm. Option are “Low” and “High”.
