Industrial Cellular VPN Router NR500 Series User Manual
Page 44 / 78
4.4 Industrial Interface
The Industrial page contains tabs for making configuration settings for Serial RS232 and RS485,
Digital input and output. Select Serial & Digital IO from the main navigation menu to navigate to
this page.
4.4.1 Serial
You could review the status of serial connection.

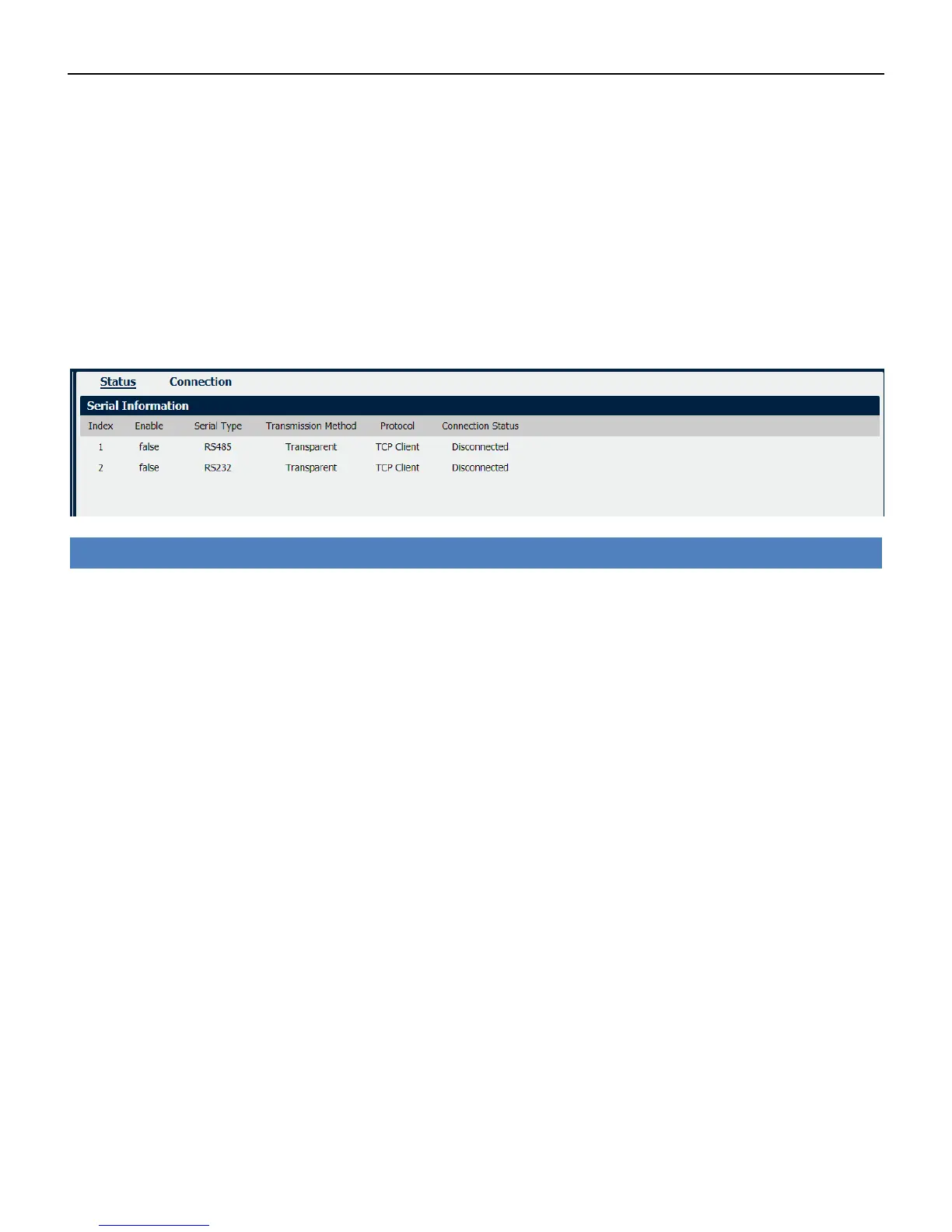

Serial->Status
• Enable
Displays status of current serial function.
• Serial Type
Displays the serial type of COM port.
• Transmission Method
Displays the transmission method of this serial port.
• Protocol
Displays the protocol used by this serial port.
• Connection Status
Displays the connection status of this serial port.
