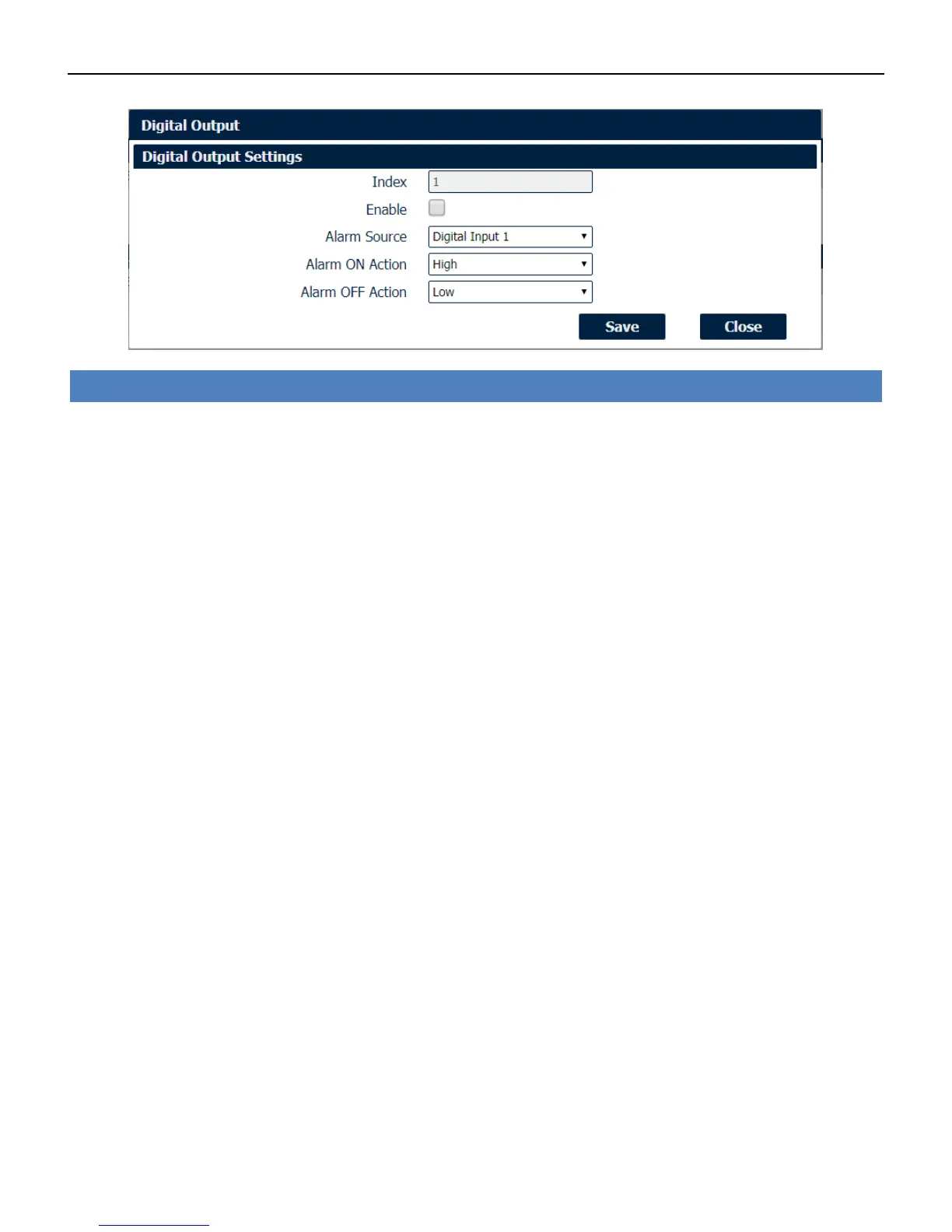

Digital IO->Digital Output
• Enable
Check this box to enable digital output function.
• Alarm Source
Select from “Digital Input1” or “Digital Input2”, Digital output triggers the related action when there is
alarm comes from Digital Input.
• Alarm ON Action
Select from “High”, “Low” or “Pulse”. High means high electrical level output. Low means low
electrical level output. Pulse will generate a square wave as specified in the pulse mode parameters
when triggered.
• Alarm OFF Action
Initiates when alarm disappeared. Select from “High”, “Low” or “Pulse”. High means high electrical
level output. Low means low electrical level output. Pulse will generate a square wave as specified in
the pulse mode parameters when triggered.
• Pulse Width
This parameter is available when select “Pulse” as “Alarm ON Action/Alarm OFF Action”. The
selected digital output channel will generate a square wave as specified in the pulse mode
parameters.
