Installing the Second Cash Drawer

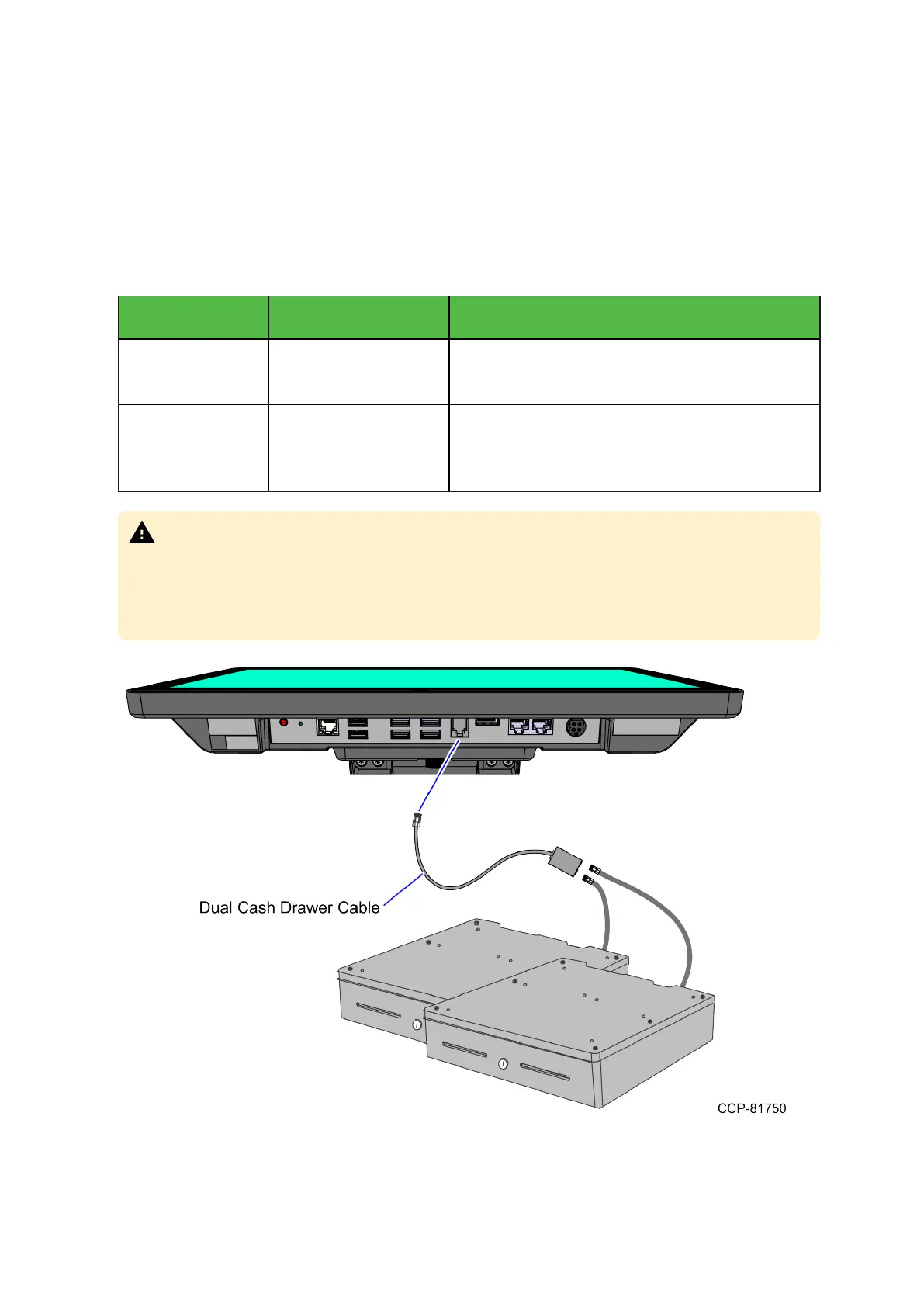

The CX3 supports a 2-drawer configuration with a Dual Cash Drawer Cable.
Connect this cable to the terminal or to a transaction printer cash drawer
connector.
The following table provides two versions of the Dual Cash Drawer Cable.
Cable Description Notes
1432-C516-0009 24V Dual Cash Drawer
Splitter
Required if using two 24V cash drawers
1432-C517-0009 12V Cash Drawer
Splitter for Single or
Dual configuration
Required if using one or two 12V cash drawers
(legacy Radiant). Cable allows software to see which
drawer is open/closed.
Caution
The two cables look very similar. Make sure you use the correct one.
Connecting the wrong cable can cause system damage. To identify the
cable part number, check the label attached to the cable.
