NCR CX3 POS User Manual
5
of 1
of 1 rating
86 pages
Give review
Manual
Specs
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...
Confidential
and
proprietary
information
of
NCR.
Unauthorized
use,
reproduction
and/or
distribution
is
strictly
prohibited.
72
Installing
the
NCR-PSx-Driver
To
install
the
NCR-PSx-Driver,
follow
these
steps:

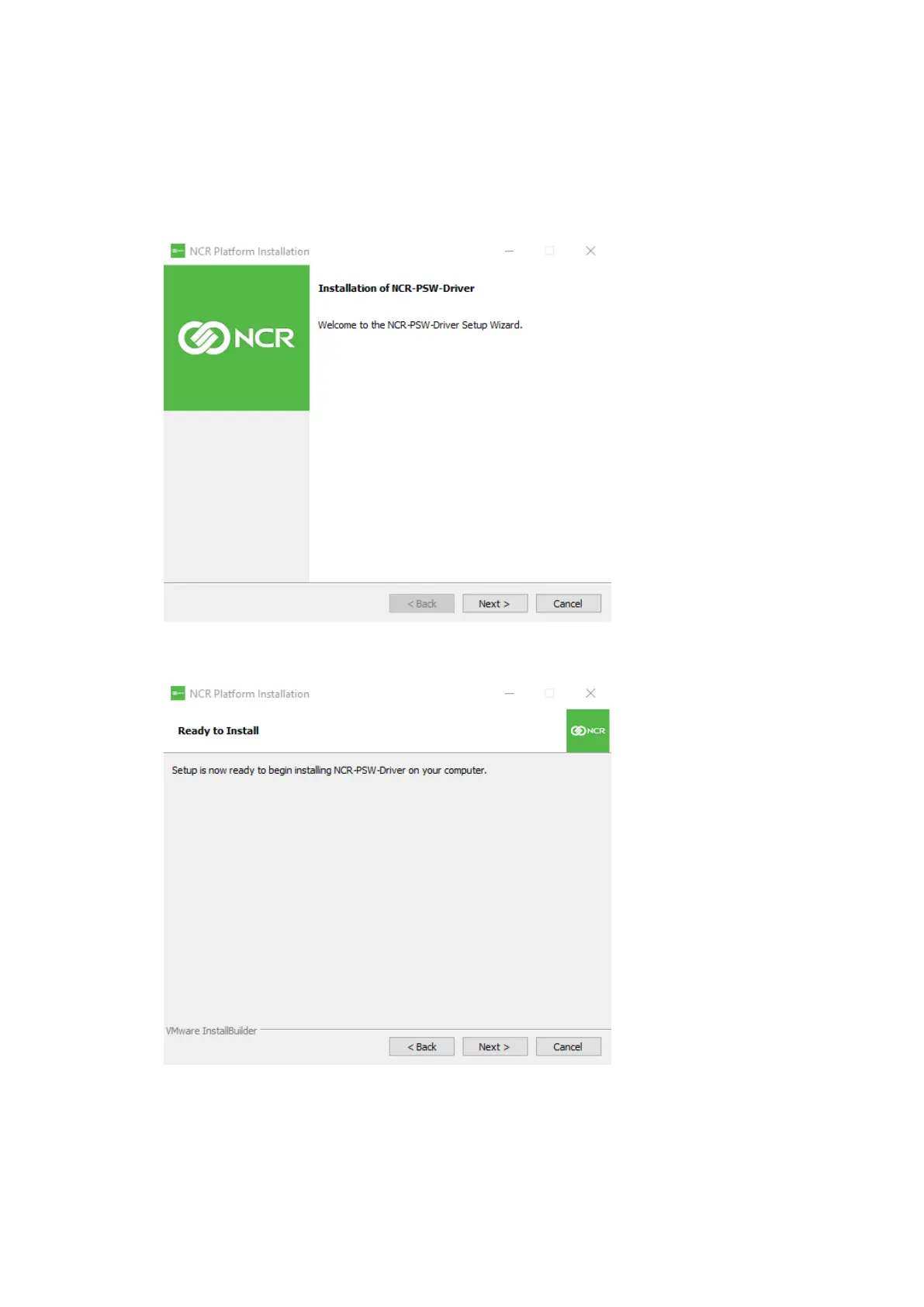

1.
Run
NCR-PSx-Driver.
The
NCR-PSW-Driver
Setup
Wizard
is
displayed.
2.
Select
Next
.
The
Ready
to
Install
window
is
displayed.
3.
Select
Next
.
The
installation
begins.
79
81
Table of Contents
Table of Contents
4
NCR CX3 POS (7776) Overview
9
Base Models
9
Features
10
Optional Features
10
Operating Systems
11
Specifications
12
Mounting Configurations
15
Stand (F170)
15
Wall/Vesa Mount
15
I/O Ports
16
I/O Board Connector Pinouts
17
Lan
17
Usb 3.0
17
Cash Drawer
18
RJ45 Serial Port
19
24V Power in
20
Operator Control
21
Power Switch
21
LED Indicator
22
Power Status LED
22
Label Locations
23
Hardware Installation
24
Installation Restrictions
24
Ergonomic Workplace
25
Installing the Terminal
26
Connecting AC Power
27
Connecting to a Network
28
Installing the Cash Drawer
29
Installing the Second Cash Drawer
30
Configuring Gen3 Cash Drawer Switch Polarity
31
Installing the Transaction Printer
32
Serial Connection
32
USB Connection
33
Powering up the Terminal
34
Removing the Stand
35
Operation and Cleaning
36
Administrator Login
36
Touchscreens
36
Projected Capacitive Touchscreen
36
Using the PCAP Touchscreen
36
Cleaning the Touchscreen
37
Magnetic Stripe Reader
38
Using the MSR
38
Card Thickness
38
Care of Cards
38
Biometrics Fingerprint Reader
39
Using the Biometrics Reader
39
Cleaning the Sensor
40
Software Drivers
40
Cleaning the Cabinet
40
Disk Image Backup and NCR Image Recovery Tool
41
Introduction
41
Running the NCR Image Recovery Tool
42
Starting the NCR Image Recovery Tool
42
Main Screen
43
Change Settings
43
Save or Load Image
43
Shutdown or Reboot
43
System Information
43
Save or Load Image
44
Recovery Partition Size
45
Saving an Image
45
Output Options
46
Loading an Image
49
Change Settings
54
Change Network Settings
55
Change Password
56
Replace Recovery Image
57
Change Language
58
Creating a Disk Image
59
Power Management
60
Computer States
60
G3 Mechanical off
60
G2/S5 Soft off
60
G1 Sleeping
61
G0 Working
61
ACPI Sleep States (S0 - S5)
61
Enabling Wake on LAN
64
BIOS Setup
67
Entering Setup
67
Selecting Menu Options
67
Restoring Factory Settings
67
BIOS Updating Procedure
68
Introduction
68
Prerequisites
68
USB Flash Key Update Prerequisites
68
Windows Flash Executable Update Prerequisites
68
SPI/BIOS Updating Procedures
69
Using the Bootable USB Flash Key
69
Using the Windows Flash Executable
73
Initial Terminal Imaging
74
Introduction
74
Imaging Procedure
74
APA Graphical Display
75
Required Packages
75
Installing the NCR-Psx-Common
76
Installing the NCR-Psx-Driver
80
Installing the NCR-Psx-Linedisplay
82
Installing the NCR-Psx-Utility
84
CX Display Touch Tool
86
