DSX-80/160 Common Equipment
DSX Product Description Components ◆ 11
Components
DSX-80/160 Common Equipment

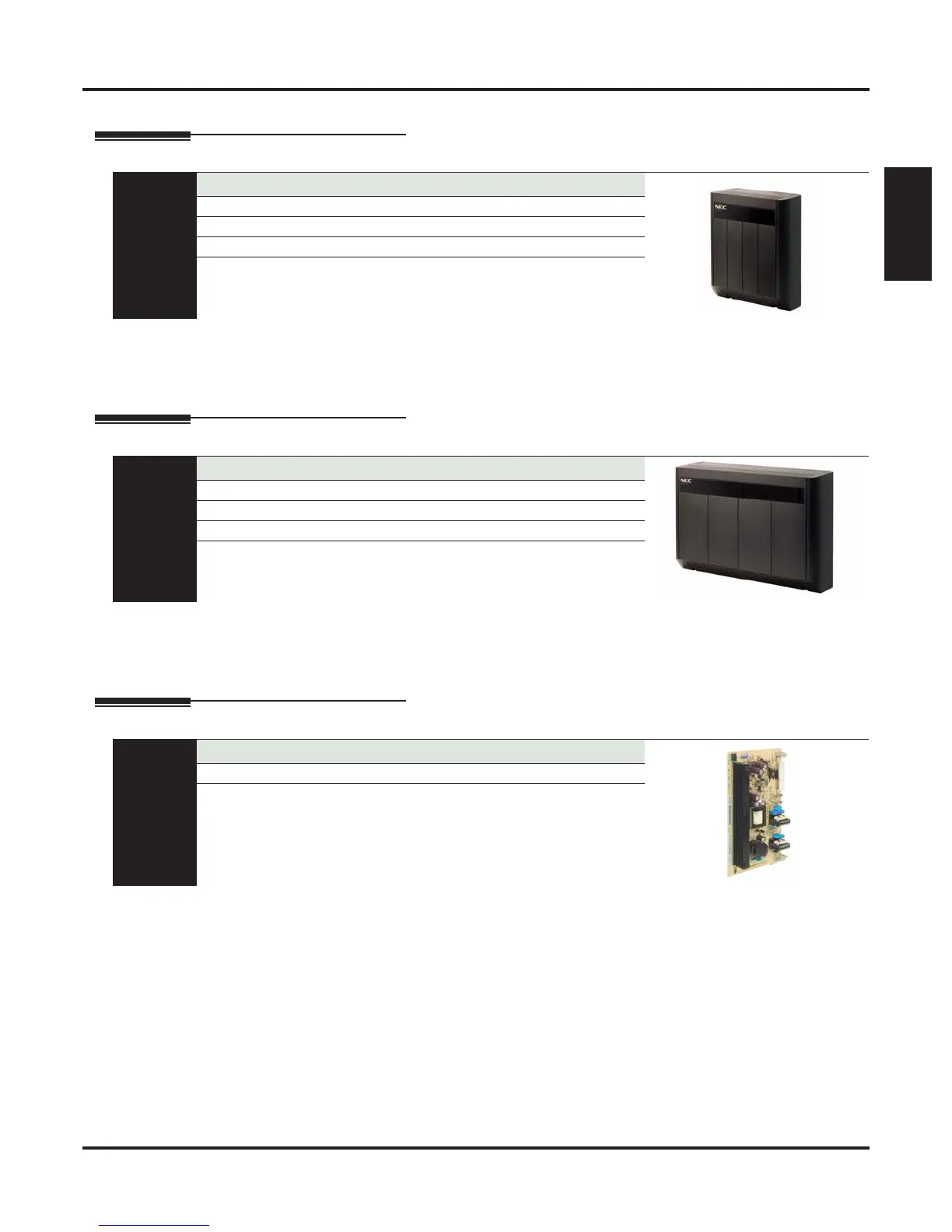

DSX-80 4-Slot KSU
The DSX-80 4-Slot KSU contains the CPU, 4 universal card slots and the system’s power supply. It provides
80 ports. It is wall-mountable, has a flip off cover and removable side panel for easy access. The cabinet has
a handy translucent panel in the cover that allows you to get essential system status and troubleshooting
information at a glance, without removing the cover.
DSX-160 8-Slot KSU
The DSX-160 8-Slot KSU contains the CPU slot, 8 universal card slots and up to 3 system power supplies
(depending on Load Factor requirements). It provides 160 ports. Just like the DSX-80 4-Slot KSU, the DSX-
160 is wall-mountable, has a flip off cover and removable side panel for easy access. The DSX-160 also has
a translucent panel in the cover for getting essential system status and troubleshooting at a glance
DSX-80/160 Power Supply
The power supply provides the various DC voltages required to power the DSX-80/160 Cards. The DSX-80
4-Slot KSU requires a single power supply. The DSX-160 8-Slot KSU requires up to 3 power supplies,
depending on system configuration.
At a Glance
P/N 1090002
Slots: 4 Analog extensions (max.): 48
Ports: 80 Analog lines (max): 48
Digital extensions (max.): 32 Digital (T1) lines (max.): 64
• Capacities determined by System Load Factor.
• Always install a 16ESIU Card in the first universal slot.
At a Glance
P/N 1090003
Slots: 8 Analog extensions (max.): 112
Ports: 160 Analog lines (max): 64
Digital extensions (max.): 96 Digital (T1) lines (max.): 64
• Capacities determined by System Load Factor.
• Always install a 16ESIU Card in the first universal slot.
• Install one power supply for every two 16ESIU Cards.
At a Glance
P/N 1091008
DSX-80 Qty: 1 DSX-160 Qty: 3 (max.)
• Quantity required in DSX-160 determined by System Load Factor.
• In DSX-160, Install one power supply for every two 16ESIU Cards.
