1. Introduction

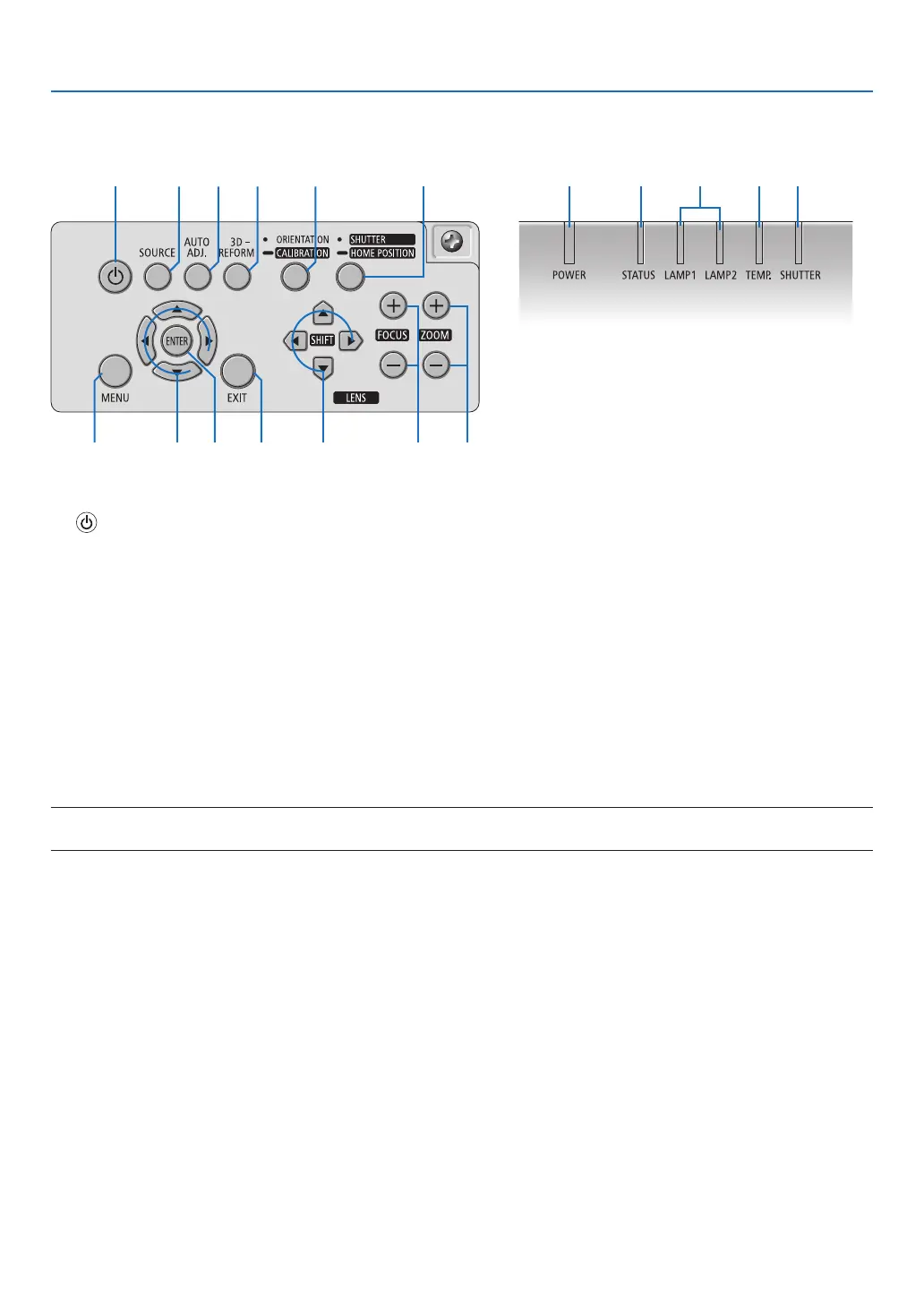

Control Panel/Indicator Section
1. (POWER) Button (→page17, 29)
2. POWER Indicator (→page17, 29, 227)
3. STATUS Indicator (→page227)
4. LAMP1andLAMP2Indicators(→page180, 228)
5. TEMP.Indicator(→page228)
6. SHUTTERIndicator(→page228)
7. SOURCEButton(→page20)
8. AUTO ADJ. Button (→page28)
9. 3D REFORM Button (→page37)
10.ORIENTATION/CALIBRATIONButton(→page17, 19)
11. SHUTTER/HOME POSITION Button (→page22, 31)
NOTE: The “home position” for lens shift position is not the center position of the adjustable lens shift range. The home position
should be used for lens installation.
12. MENU Button (→page97)
13.  Buttons (→page97)
14.ENTERButton(→page97)
15.EXITButton(→page97)
16.LENSSHIFT Buttons (→page22)
17.FOCUS+/−Buttons(→page24)
18.ZOOM+/−Buttons(→page25)
1
12 13 1514 16 17 18
7 8 9 10 11 2 3 4 5 6
