Chapter 4 - T
roubleshooting
Chapter 4
4 - 1
1
4.2.1.9
ARP (CLI Only)
●
A
T
elnet program and computer to install it is needed.
●
Log in -> “

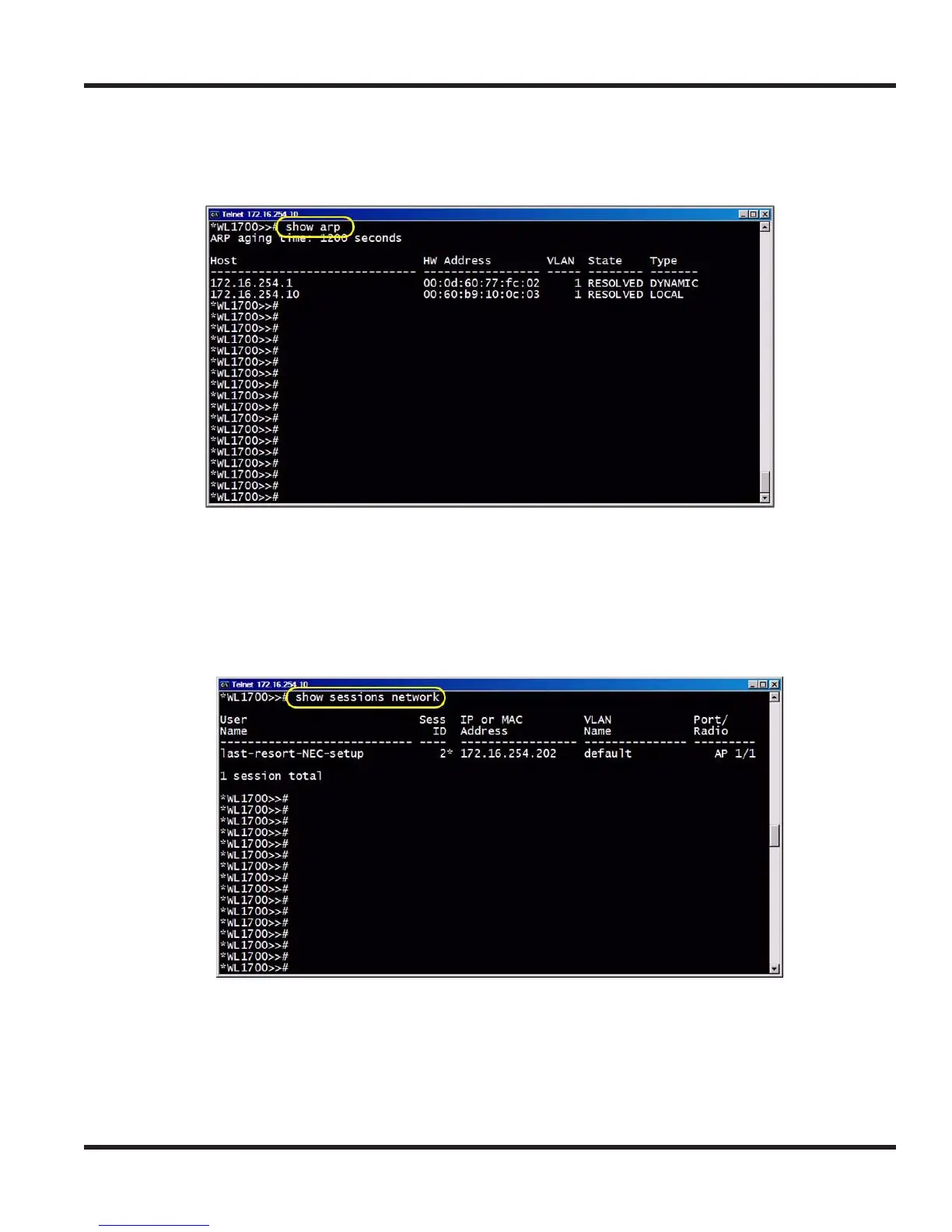

show arp
”
4.2.1.10
Sessions Network (CLI Only)
●
Association of Clients (CLI Only)
●
A
T
elnet program and computer to install it is needed.
●
Log in -> “
show sessions network
”
