2-8 Getting Started
Setting Up the Stand for Portrait Display
Use the following procedure to set up the stand for portrait screen
display.
1. Set up the stand for landscape display (see the earlier procedure,
“Setting Up the Stand for Landscape Display”).
2. Pivot the support posts inward and down.

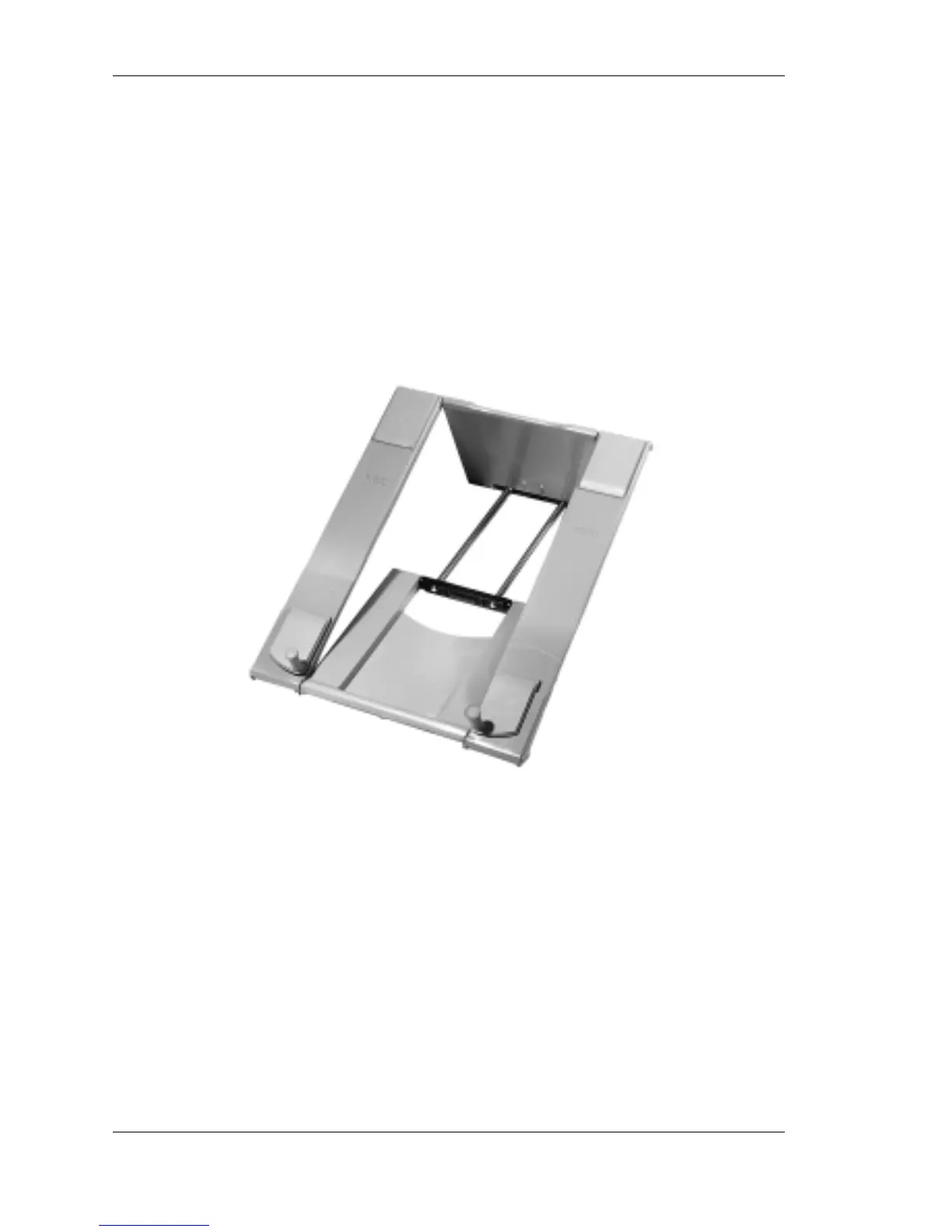

Starting from landscape setup (support posts down)
3. Keeping the locking bars secured, lift the top panel up until the
rails are in a straight line with the top panel (see the following
figures).
Then press down on the top panel to lock the rails into the tabs at
the back of the top panel.
To Next Page
