Nellcor OxiMax SRC-MAX User Manual

SRC-MAX 5
Controls, Indicators, and
Symbols
Note: In this manual, pulse oximeters refer to Nellcor
O
XIMAX technology-based pulse oximeters and
monitors refer to OEM O
XIMAX technology-based
monitors.
Front Panel

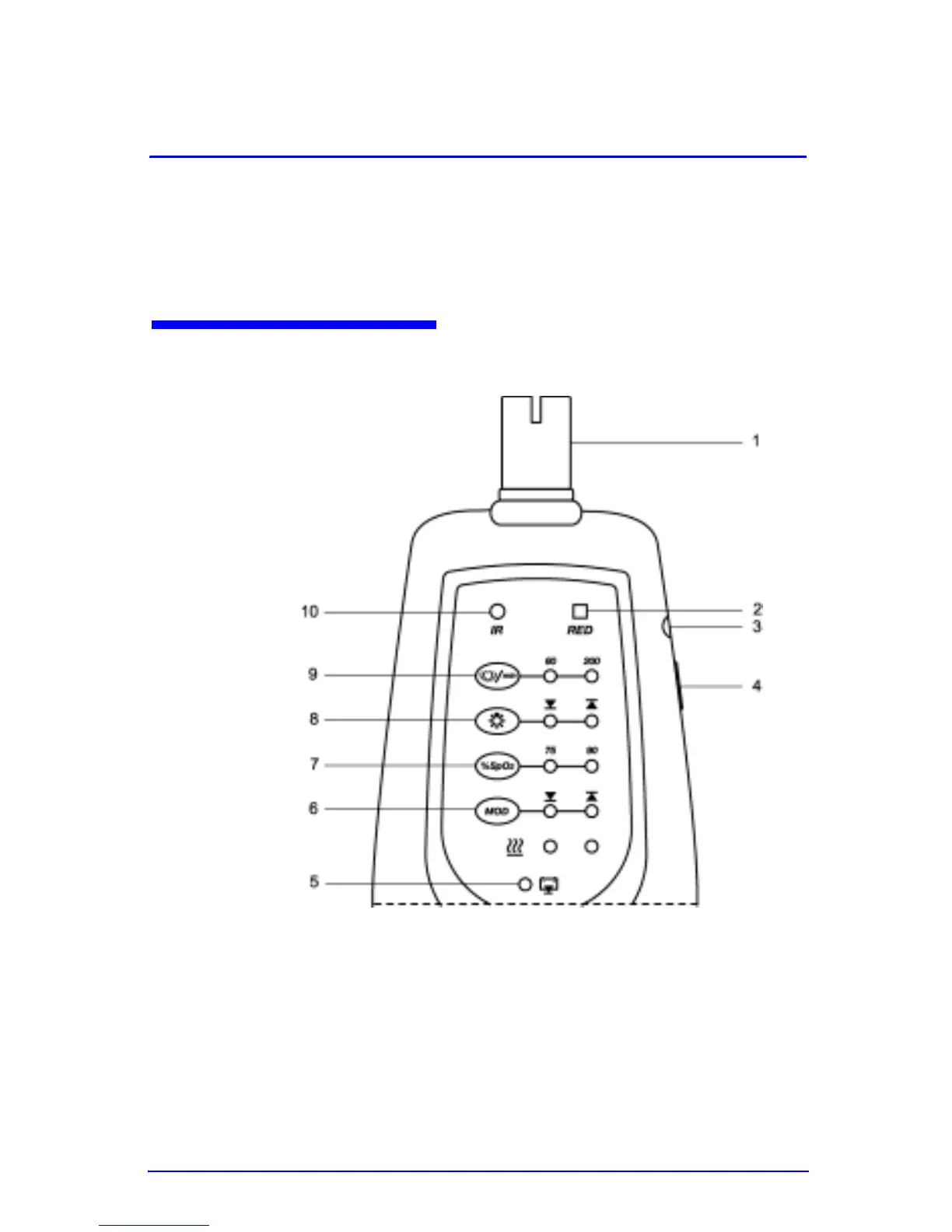

Figure 1: Front Panel
1. Pulse oximeter/monitor cable connector 6. % Modulation select button
2. RED LED drive indicator 7. % Sp0
2 select button
3. C-LOCK output connector port 8. Light level output button
4. ECG output connector port 9. Pulse rate beats per minute (BPM) button
5. Battery low indicator 10. INFRARED LED drive indicator
