Nellcor OxiMax SRC-MAX - Test 1: BPM (Beats per minute)

SRC-MAX Operation with a Pulse Oximeter or Monitor
14
8. The SRC-MAX is ready to test the pulse oximeter or
monitor.
Test 1: BPM (Beats per minute)
The BPM test checks the pulse oximeter or monitor beats per
minute operation at 60 and 200 BPM.
Prerequisite Procedure — Test Setup on page 12.
1. The pulse oximeter or monitor should be displaying a
BPM of 60 (57 to 63 BPM).

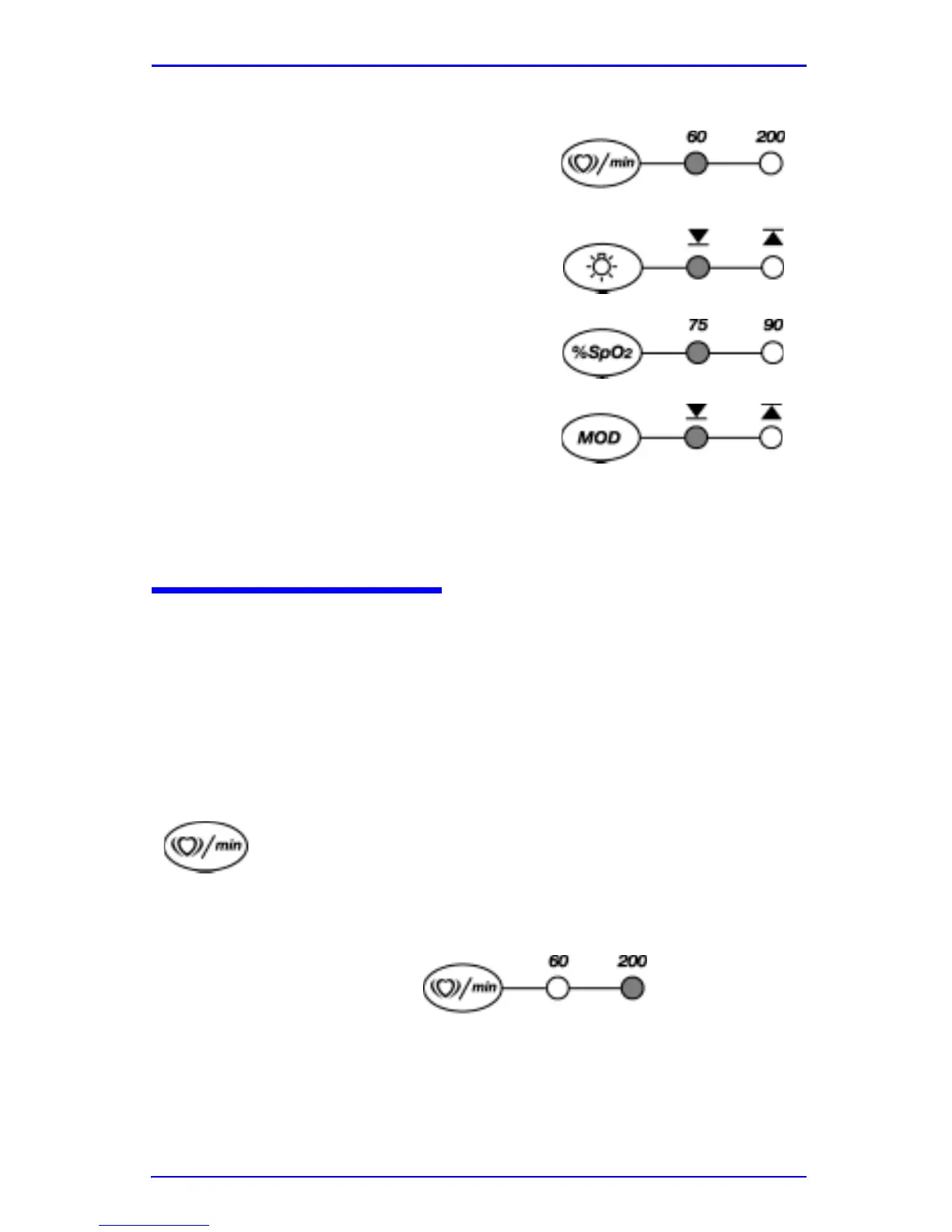

2. Press and release the SRC-MAX Heart Rate/BPM button.
3. The BPM LED indicator on the SRC-MAX will switch to
illuminate the 200 numeric reading.
4. Observe the display of the pulse oximeter or monitor.
The numeric reading for BPM will gradually rise to the
200 (197 to 203 BPM) level. Allow the pulse oximeter or
monitor 10-30 seconds to achieve the test result.
Pulse/Beats per Minute
Light Level
% Sp0
2
Percent Modulation
