Performance Verification

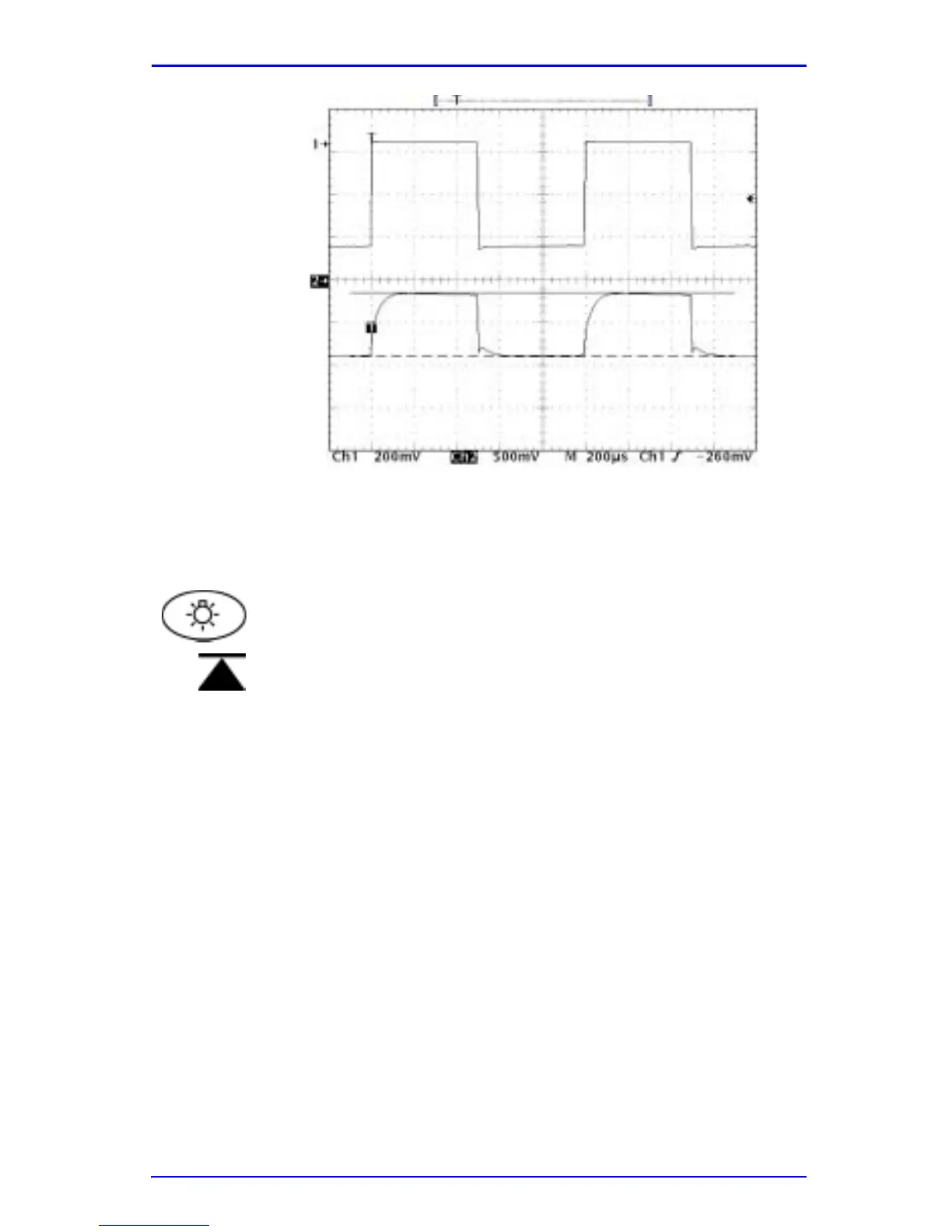

Figure 14: IR LED Low Light Setting

Note: The peak-to-peak voltage tolerance includes a

possible probe impedance error.

5. Select the High Light Setting on the SRC-MAX.

6. Measure the peak-to-peak voltage across the 1 meg ohm

resistor on Channel two of the Oscilloscope. The peak-to-

peak voltage should be 2.4 to 3.6 volts peak-to-peak. See

Figure 15.
