Nellcor OxiMax SRC-MAX User Manual

SRC-MAX Operation with a Pulse Oximeter or Monitor
SRC-MAX 15

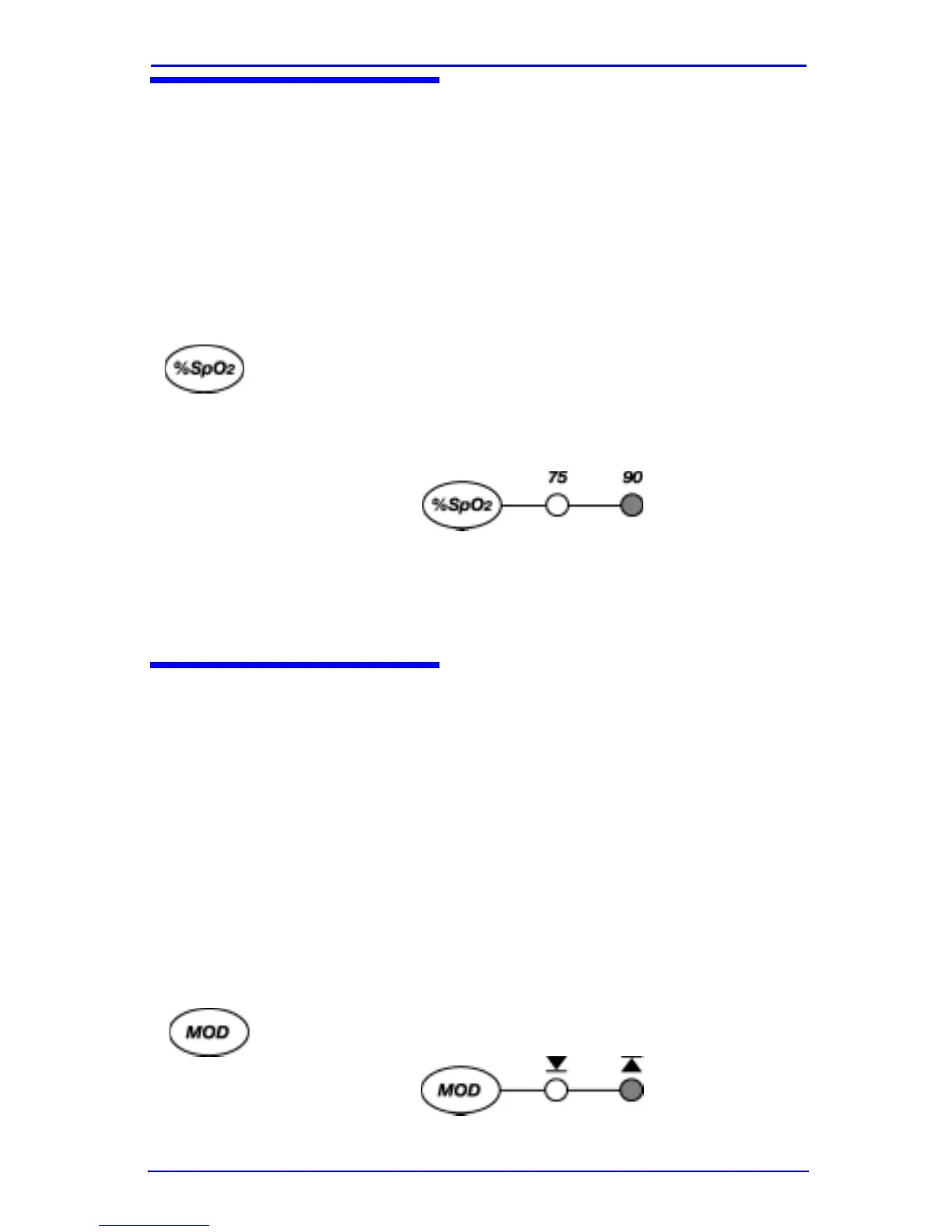

Test 2: Saturation (Sp02)
The saturation test checks the operation of the pulse oximeter
or monitor percent of blood oxygen saturation at 75% and
90%.
Prerequisite Procedure — Test Setup on page 12.
1. The pulse oximeter or monitor should be displaying a
%SpO
2 of 75 (72 to 78).
2. Press and release the SRC-MAX %Sp0
2 button.
3. The %Sp0
2 LED indicator on the SRC-MAX will switch
from a value of 75 and illuminate the 90 value.
4. Observe the display of the pulse oximeter or monitor. The
numeric reading for %Sp0
2 will flash and change to 90
(87 to 93). Allow the oximeter several seconds to achieve
the test result.
Test 3: Modulation
The modulation test checks to ensure that the pulse oximeter
or monitor is functioning properly under low and high
modulation conditions. The pulse oximeter or monitor shall
display the correct %SpO
2 and pulse rate reading, as defined
in tests 1 and 2, under low and high modulation conditions.
Prerequisite Procedure — Test Setup on page 12.
1. Perform Test 1: BPM on page 14.
2. Perform Test 2: %SpO
2 on page 15.
3. Press and release the SRC-MAX MOD button.

Nellcor OxiMax SRC-MAX Specifications

General

Brand	Nellcor
Model	OxiMax SRC-MAX
Category	Medical Equipment
Language	English
