Performance Verification

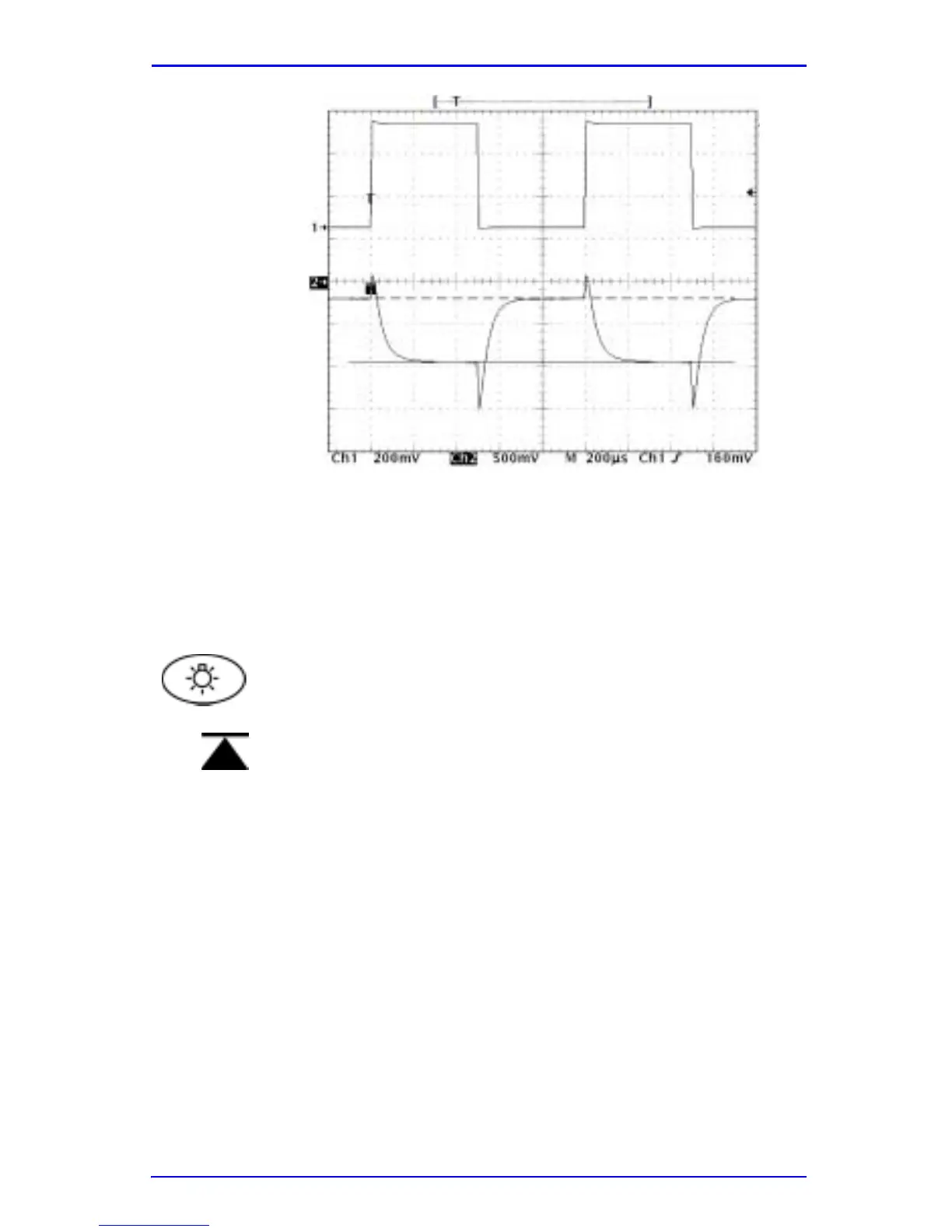

Figure 12: RED LED Low Light Setting

Note: This figure and the following waveform figures

represent typical measurements. The actual

measured waveforms may vary in amplitude and

scale.

9. Select the High Light setting on the SRC-MAX. Measure

the peak-to-peak voltage across the 1 meg ohm resistor

on Channel 2 of the oscilloscope. The peak-to-peak

voltage should be 2.4 to 3.6 volts peak-to-peak. See

Figure 13.
