Neoway N10 - Figure 3-26 Encapsulation Specifications of Murata RF Connector; Figure 3-27 RF Connections

N10_Hardware_User_Guide
Copyright © Neoway Technology Co., Ltd.
31

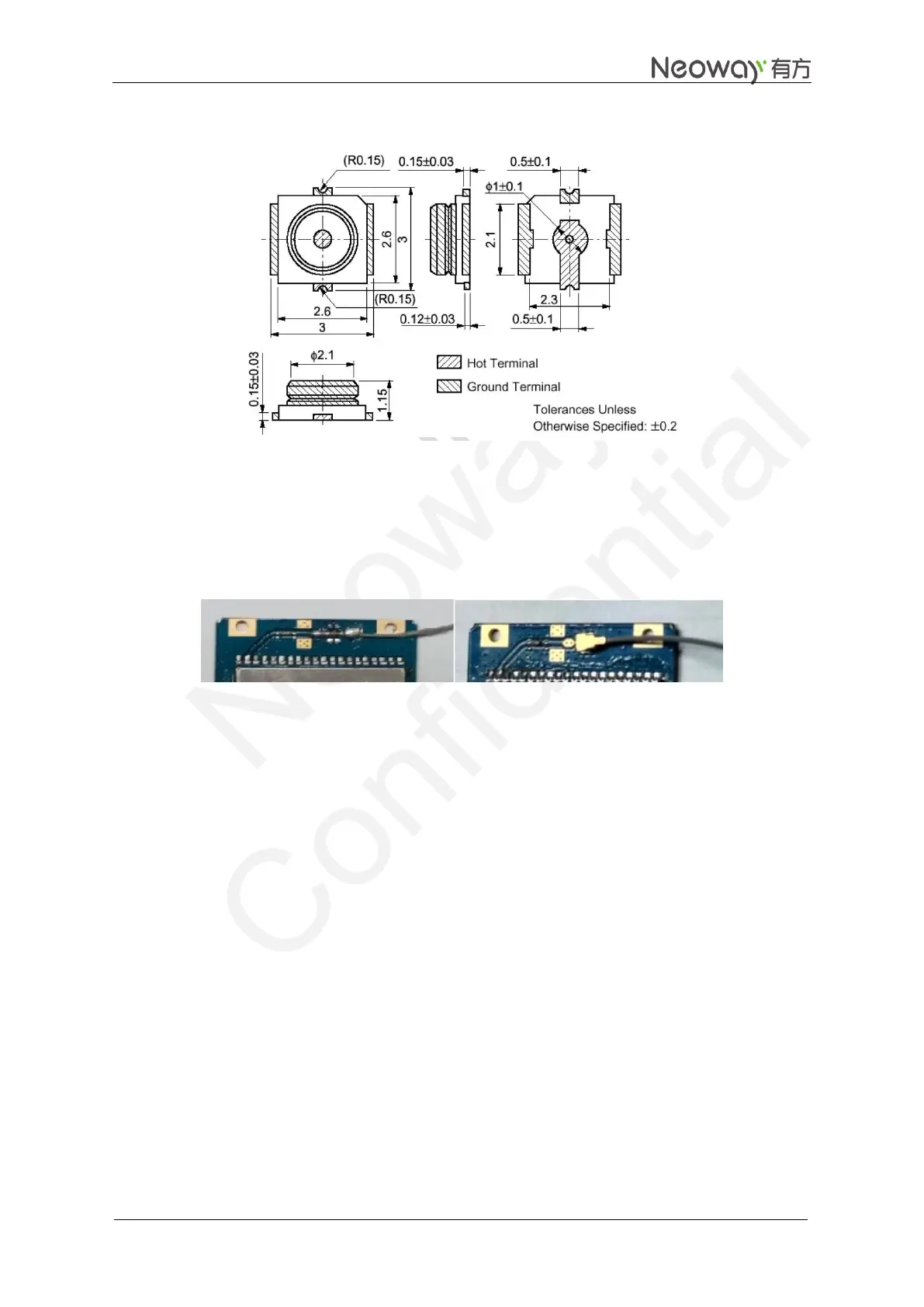

Figure 3-26 Encapsulation specifications of Murata RF connector
RF cable can also be connected to the module by soldering. In this manner, ensure proper soldering in
case of damage that lowers RF performance. Figure 3-27 shows the pictures of these two connections.
Figure 3-27 RF connections
