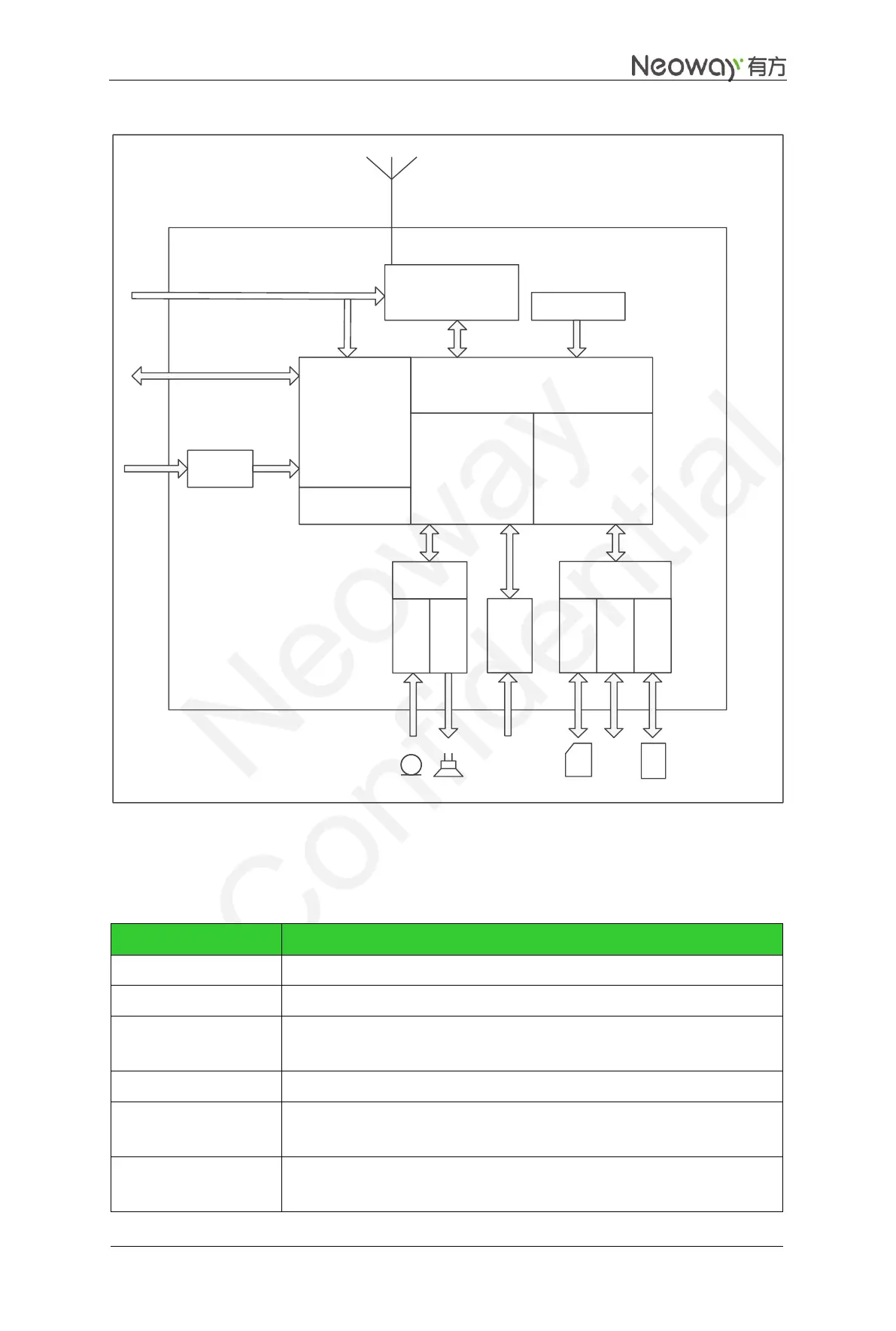

Figure 1-1 N10 Block Diagram
VBAT
VRTC
Digital
Interface
USB
SIM
UART
ON/OFF
Power
Manager
RF transceiver
FLASH
Digital
Baseband
Analog
Baseband
26MHz Crystal
RF Front-end-module
Audio
Interface
MIC
SPK
ADC
SIM
PC
GSM850:Uplink 824~849MHz,Downlink 869~894MHz
EGSM900:Uplink 880~915MHz,Downlink 925~960MHz
DCS1800:Uplink 1710~1785MHz,Downlink 1805~1880MHz
PCS1900:Uplink 1850~1910MHz,Downlink 1930~1990MHz
1.3 Specifications
Table 1-1 N10 Specifications
Specifications
Description
Frequency band
GSM850/EGSM900/DCS1800/PCS1900 quad-band
Sensitivity
< -108 dBm
Transmit power

GSM850/EGSM900 Class4(2W)

DCS1800/PCS1900 Class1(1W)
Protocol
Support GSM/GPRS Phase2/2+
AT commands

GSM07.07

Extended AT commands
Audio
Support voice coding:

HR (Half rate)
